SKU: ESF206-19-SNR

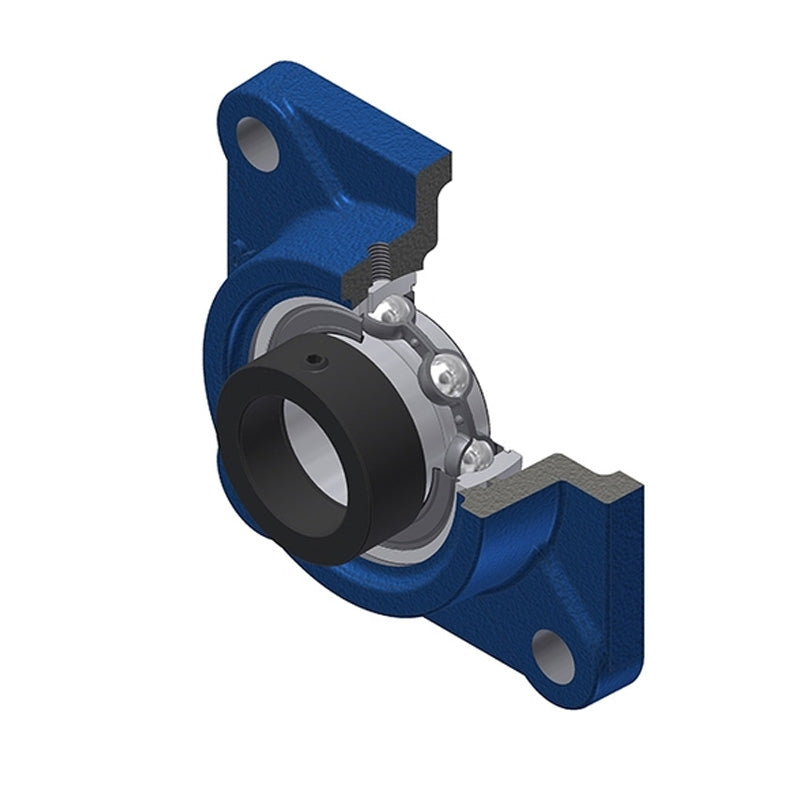

SNR ESF206-19 Imperial Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 1-3/16 inch Bore
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
In stock
Quantity Price Breaks
3
€30.18
4
€28.48
9
€28.15
19
€27.81
49
€27.47
99
€27.13
499
€25.43
999
€25.09
1999
€24.75
2999
€24.42
4999
€23.74
SKU:
ESF206-19-SNR
SNR ESF206-19 Imperial Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 1-3/16 inch Bore
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Description
ESF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 1-3/16 inch |
| A | = | 31mm |
| A1 | = | 13mm |
| A2 | = | 44.7mm |
| B | = | 23.8mm |
| B1 | = | 35.7mm |
| d1 | = | 44.1mm |
| e | = | 18mm |
| J | = | 83mm |
| L | = | 108mm |
| N | = | 12mm |
| S | = | 9mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 19.5 kN |
| Static load C0 | = | 11.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 8 Nm |
| Mass | = | 1.1 kg |
