SKU: ESF211-SNR

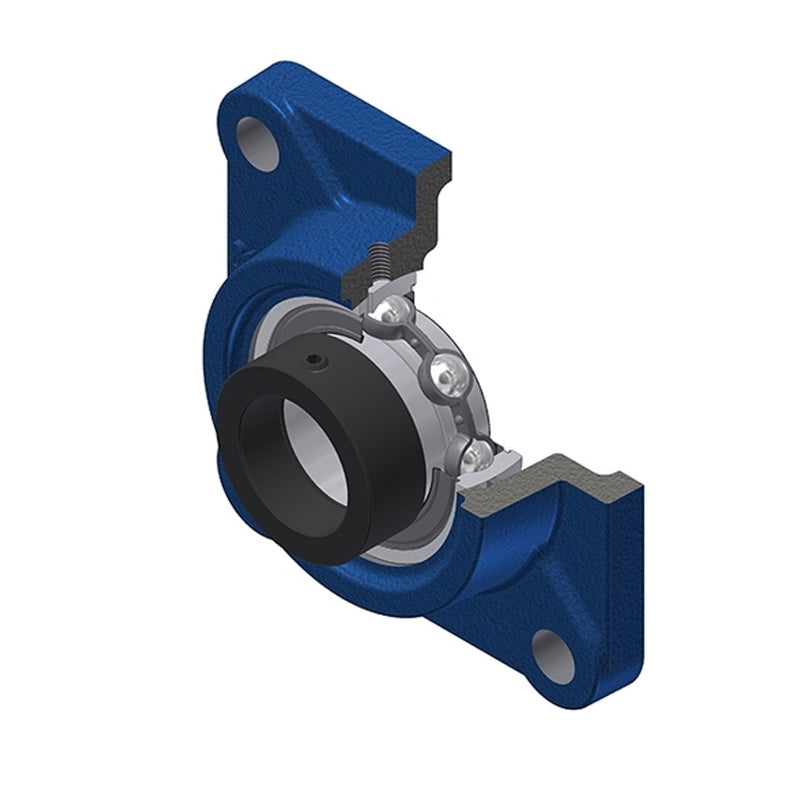

SNR ESF211 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 55mm Bore - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€53.36
4
€50.36
9
€49.76
19
€49.16
49
€48.56
99
€47.96
499
€44.96
999
€44.36
1999
€43.76
2999
€43.16
4999
€41.97
SKU:
ESF211-SNR
SNR ESF211 Metric Four Bolt Square Cast Iron Flange Housing with Eccentric Collar 55mm Bore - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Description
ESF200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 55mm |
| A | = | 43mm |
| A1 | = | 18mm |
| A2 | = | 61.4mm |
| B | = | 32.5mm |
| B1 | = | 48.4mm |
| d1 | = | 74.5mm |
| e | = | 25mm |
| J | = | 130mm |
| L | = | 162mm |
| N | = | 19mm |
| S | = | 12mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.06 kg |
