SKU: ESFAE207-SNR

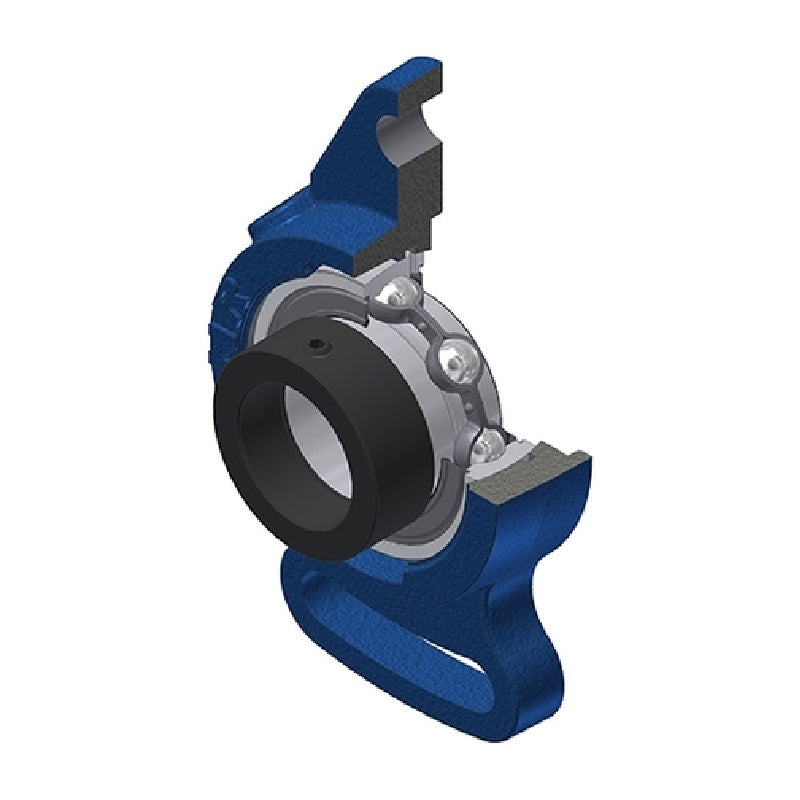

SNR ESFAE207 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Not in stock
Quantity Price Breaks
3
€30.72
4
€29.00
9
€28.65
19
€28.31
49
€27.96
99
€27.62
499
€25.89
999
€25.54
1999
€25.20
2999
€24.85
4999
€24.16
SKU:
ESFAE207-SNR
SNR ESFAE207 Metric Cast Iron Adjustable Flange Unit with Eccentric Collar Insert 35mm Bore - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Description
ESFAE200 Series Cast Iron Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

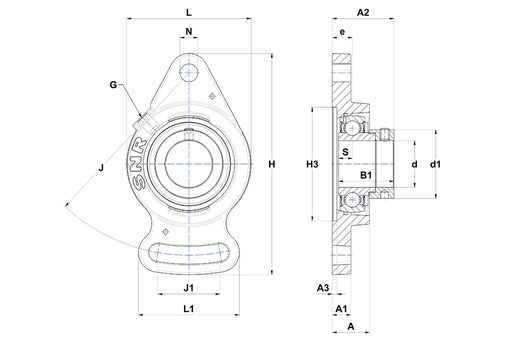

| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 26.5mm |
| A1 | = | 12.5mm |
| A2 | = | 44.4mm |
| A3 | = | 4.5mm |
| B | = | 25.4mm |
| B1 | = | 38.9mm |
| d1 | = | 51.1mm |
| e | = | 15mm |
| H | = | 155mm |
| H3 | = | 82.5mm |
| J | = | 128mm |
| J1 | = | 45mm |
| L | = | 90mm |
| L1 | = | 75mm |
| N | = | 14mm |
| S | = | 9.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.1 kg |
