SKU: ESFLE207-SNR

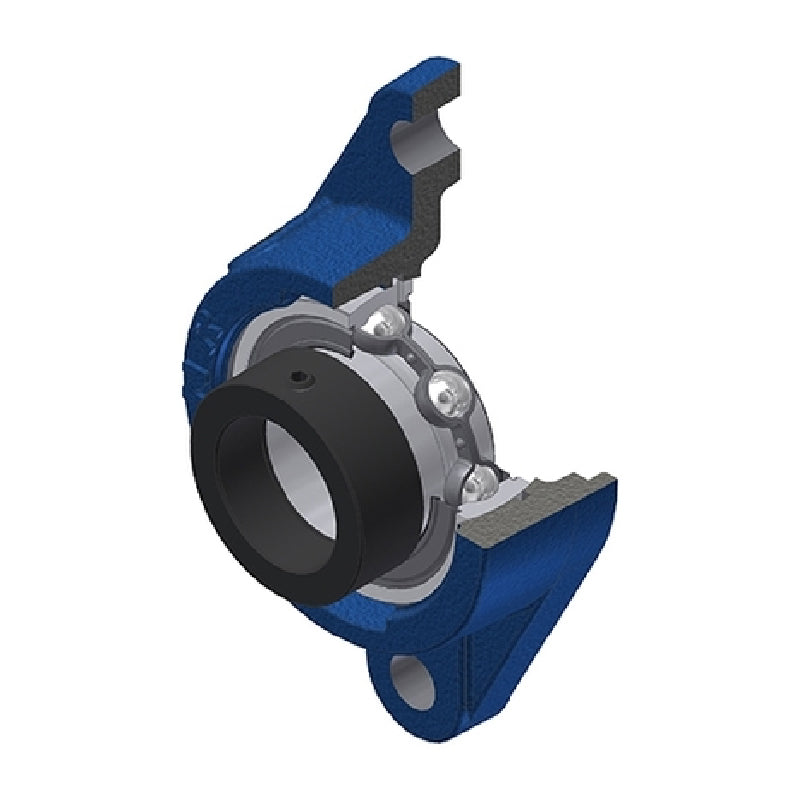

SNR ESFLE207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Not in stock
Quantity Price Breaks
3
€30.18
4
€28.48
9
€28.15
19
€27.81
49
€27.47
99
€27.13
499
€25.43
999
€25.09
1999
€24.75
2999
€24.42
4999
€23.74
SKU:
ESFLE207-SNR
SNR ESFLE207 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €33.91 ex VAT
- Sale price
- €33,91
- Regular price
-
Description
ESFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

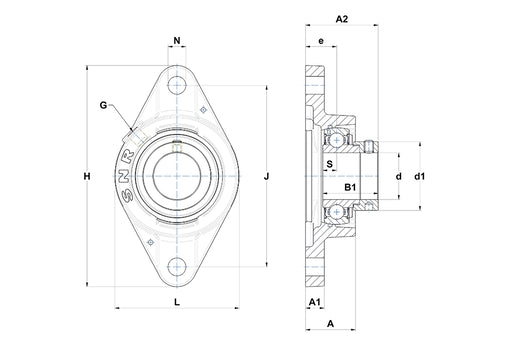

| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 33.7mm |
| A1 | = | 12.5mm |
| A2 | = | 50.4mm |
| B | = | 25.4mm |
| B1 | = | 38.9mm |
| d1 | = | 51.1mm |
| e | = | 21mm |
| H | = | 155mm |
| J | = | 130mm |
| L | = | 92mm |
| N | = | 14mm |
| S | = | 9.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.2 kg |
