SKU: ESFTE204-SNR

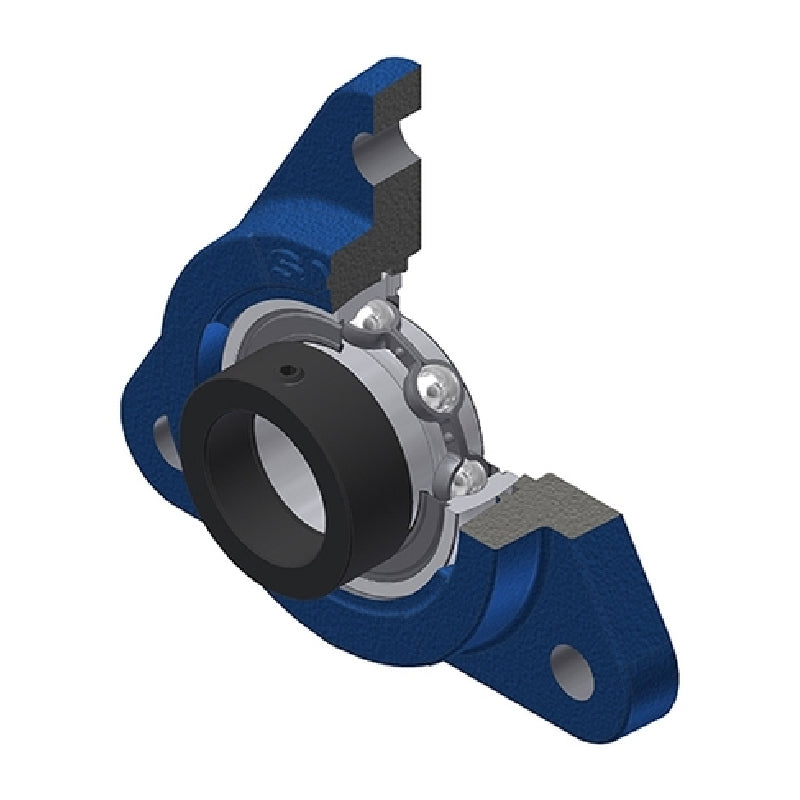

SNR ESFTE204 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Not in stock
Quantity Price Breaks
3
€25.87
4
€24.42
9
€24.13
19
€23.84
49
€23.55
99
€23.26
499
€21.80
999
€21.51
1999
€21.22
2999
€20.93
4999
€20.35
SKU:
ESFTE204-SNR
SNR ESFTE204 Metric Three Bolt Cast Iron Triangular Housing Unit with Eccentric Collar Insert 20mm Bore - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Description
ESFTE200 Series 3 Bolt Cast Iron Triangular Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

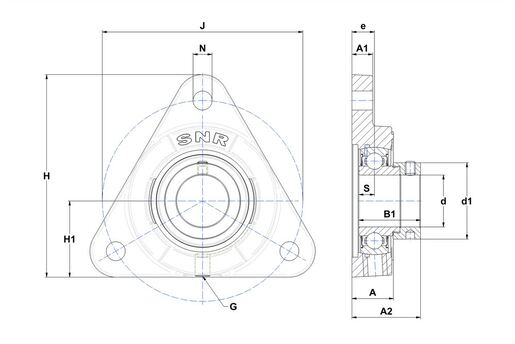

| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 20mm |
| A1 | = | 11mm |
| A2 | = | 34.4mm |
| B | = | 21.4mm |
| B1 | = | 30.9mm |
| d1 | = | 32.4mm |
| e | = | 11mm |
| H | = | 92mm |
| H1 | = | 35mm |
| J | = | 89.5mm |
| N | = | 11.5mm |
| S | = | 7.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.55 kg |
