SKU: ESP204-12-SNR

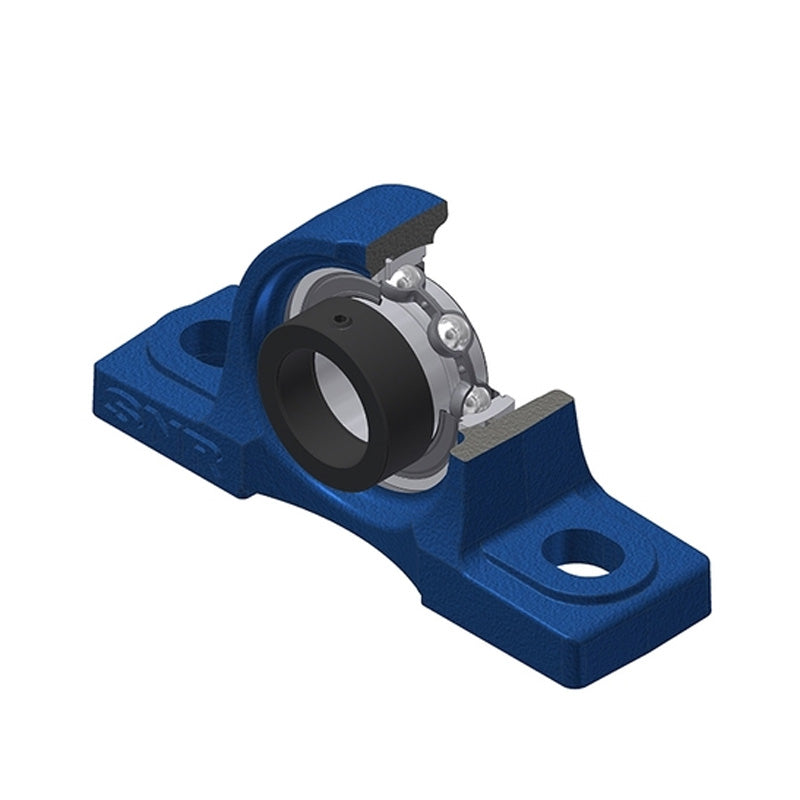

SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
Not in stock
Quantity Price Breaks
3
€22.63
4
€21.36
9
€21.11
19
€20.85
49
€20.60
99
€20.34
499
€19.07
999
€18.82
1999
€18.56
2999
€18.31
4999
€17.80
SKU:
ESP204-12-SNR
SNR ESP204-12 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 3/4 inch Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €25.43 ex VAT
- Sale price
- €25,43
- Regular price
-
Description
ESP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

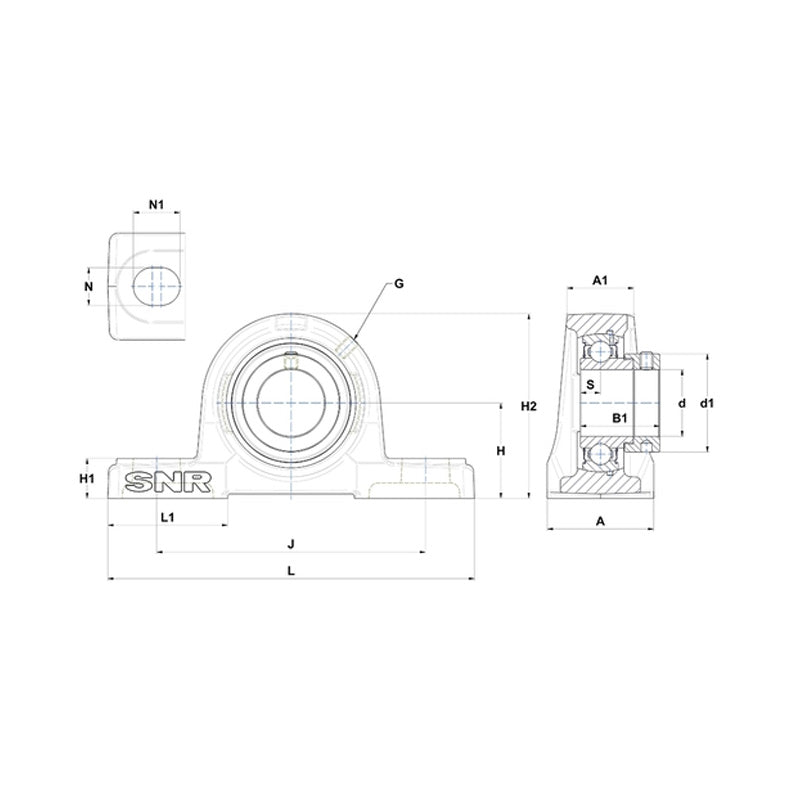

| --- | = | Dimensions |
| Shaft diameter d | = | 3/4 inch |
| A | = | 38mm |
| A1 | = | 22mm |
| B | = | 21.4mm |
| d1 | = | 32.4mm |
| H | = | 33.3mm |
| H1 | = | 15mm |
| H2 | = | 65mm |
| J | = | 95mm |
| L | = | 127mm |
| L1 | = | 42mm |
| N | = | 13mm |
| N1 | = | 19mm |
| S | = | 7.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.65 kg |
