SKU: ESP205-SNR
SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Not in stock
Quantity Price Breaks
3
€23.71
4
€22.38
9
€22.11
19
€21.84
49
€21.58
99
€21.31
499
€19.98
999
€19.71
1999
€19.45
2999
€19.18
4999
€18.65
SKU:
ESP205-SNR
SNR ESP205 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 25mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Description

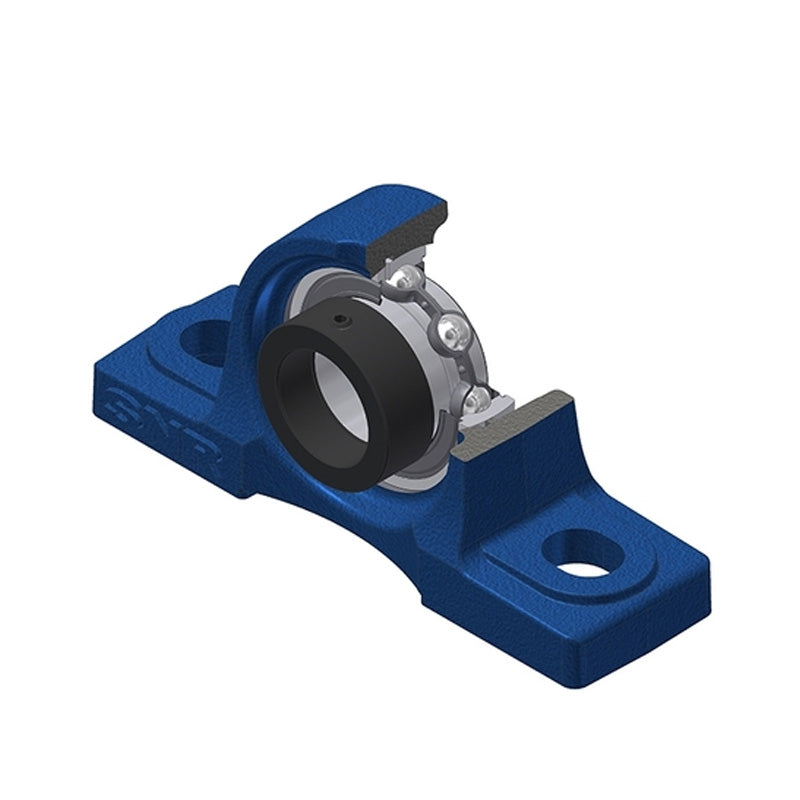

ESP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

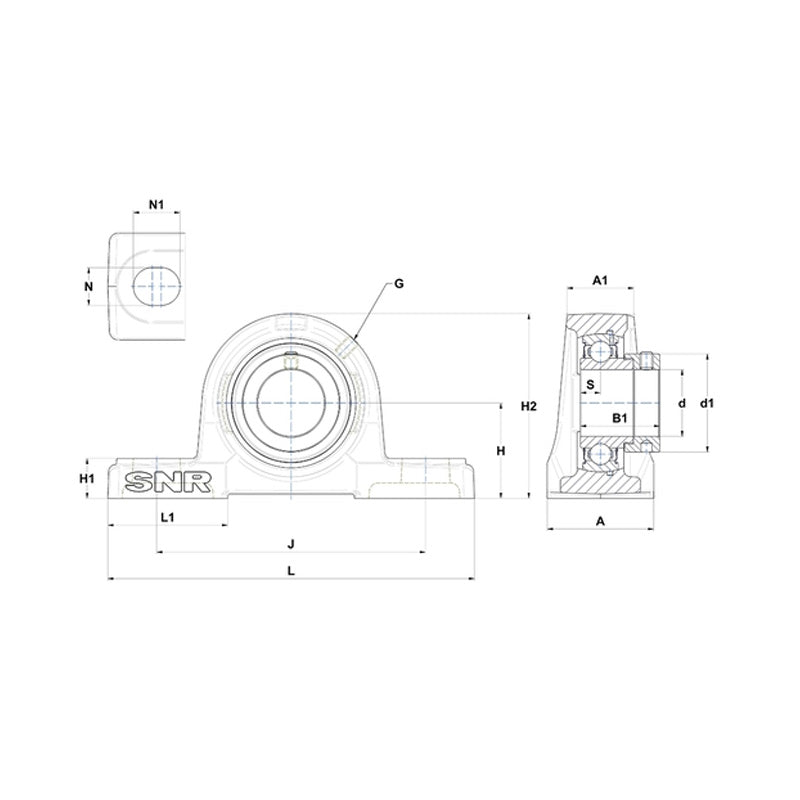

| --- | = | Dimensions |
| Shaft diameter d | = | 25mm |
| A | = | 38mm |
| A1 | = | 26mm |
| B | = | 21.4mm |
| d1 | = | 37.4mm |
| H | = | 36.5mm |
| H1 | = | 16mm |
| H2 | = | 70mm |
| J | = | 105mm |
| L | = | 140mm |
| L1 | = | 42mm |
| N | = | 13mm |
| N1 | = | 19mm |
| S | = | 7.5mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.79 kg |
