SKU: ESPA212-SNR
SNR ESPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
- Regular price
- €82.59 ex VAT
- Sale price
- €82,59
- Regular price
-
Not in stock
Quantity Price Breaks
3
€73.51
4
€69.38
9
€68.55
19
€67.72
49
€66.90
99
€66.07
499
€61.94
999
€61.12
1999
€60.29
2999
€59.46
4999
€57.81
SKU:
ESPA212-SNR
SNR ESPA212 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing with Eccentric Collar Insert 60mm Bore - Allow 2-3 Days
- Regular price
- €82.59 ex VAT
- Sale price
- €82,59
- Regular price
-
Description
|

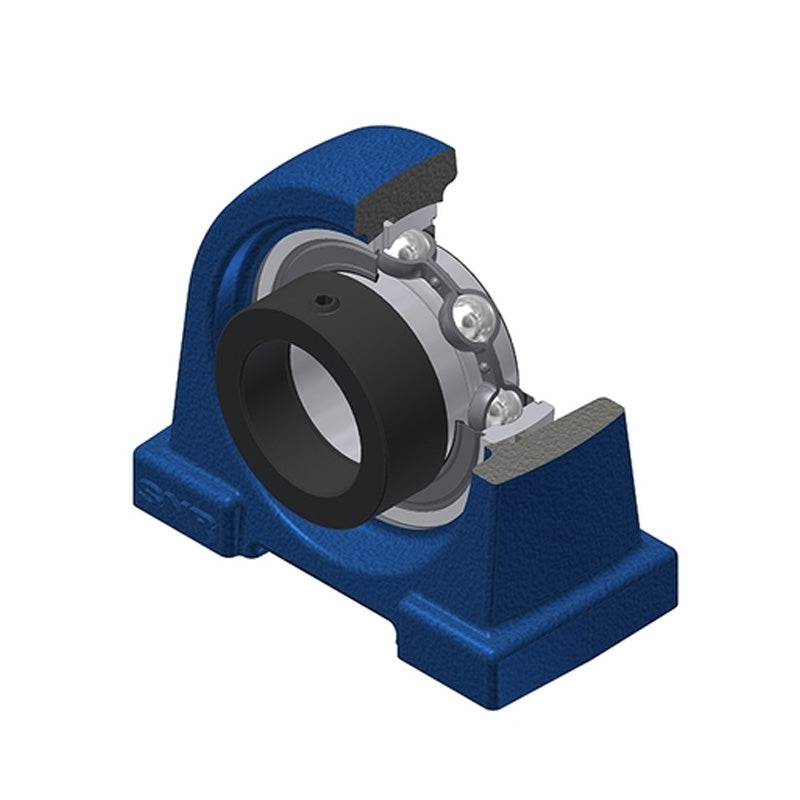

ESPA200 Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical

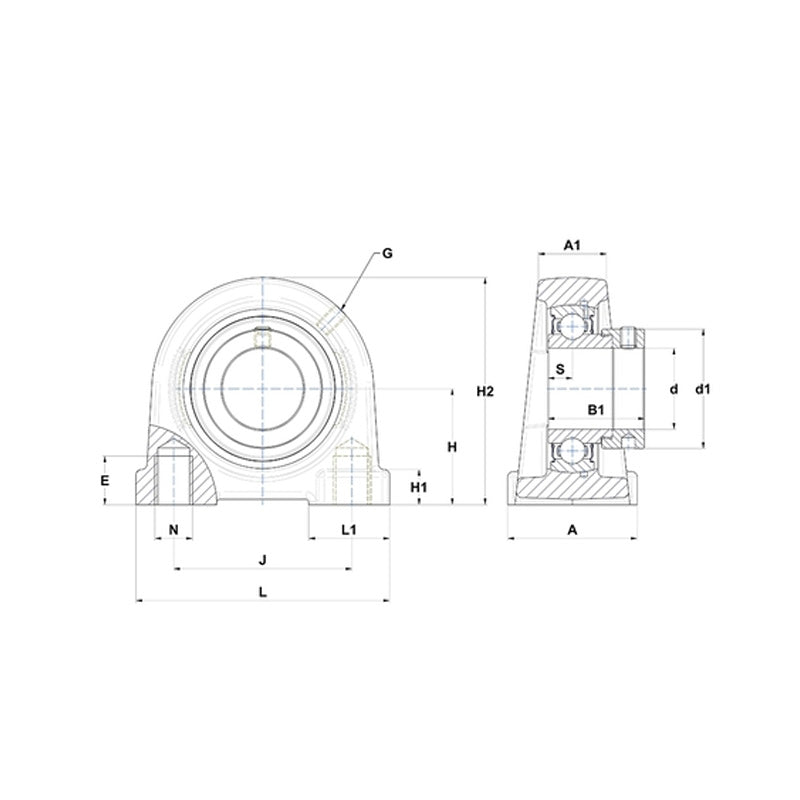

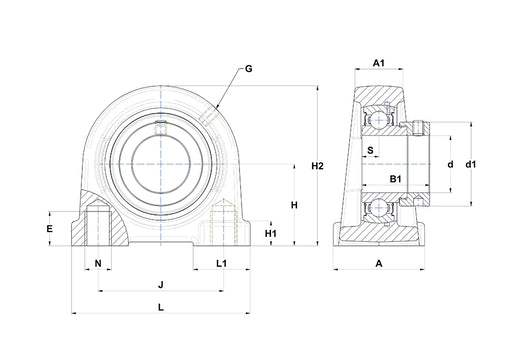

| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| A | = | 68mm |
| A1 | = | 36mm |
| B | = | 33.4mm |
| d1 | = | 82mm |
| E | = | 25mm |
| H | = | 69.9mm |
| H1 | = | 15mm |
| H2 | = | 138mm |
| J | = | 114mm |
| L | = | 150mm |
| L1 | = | 52mm |
| N | = | M16 |
| S | = | 12mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.9 kg |
