SKU: ESPLE210-SNR
SNR ESPLE210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€44.62
4
€42.12
9
€41.62
19
€41.11
49
€40.61
99
€40.11
499
€37.61
999
€37.10
1999
€36.60
2999
€36.10
4999
€35.10
Description

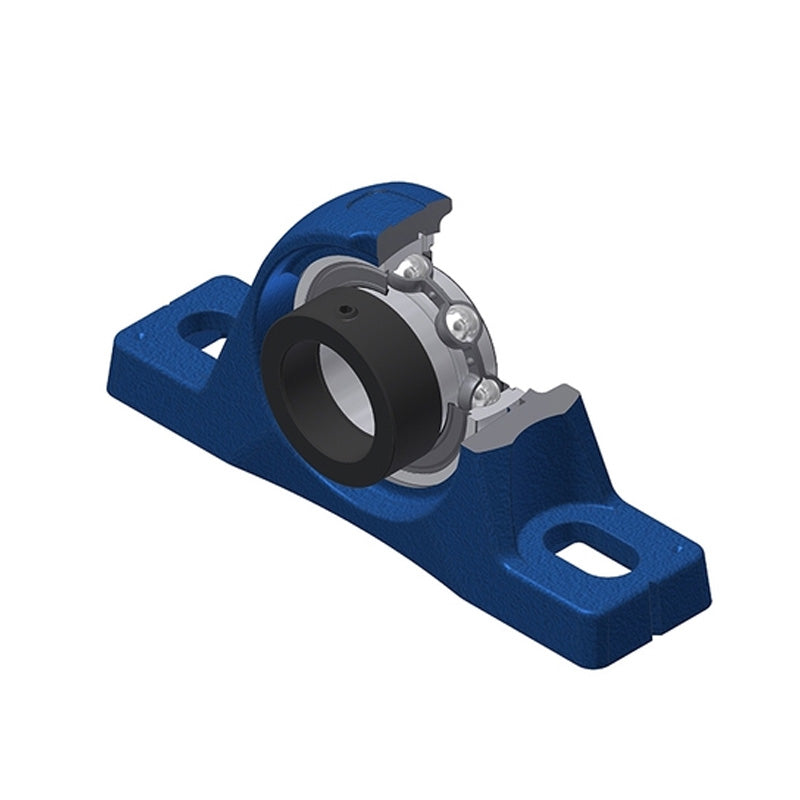

ESPLE200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

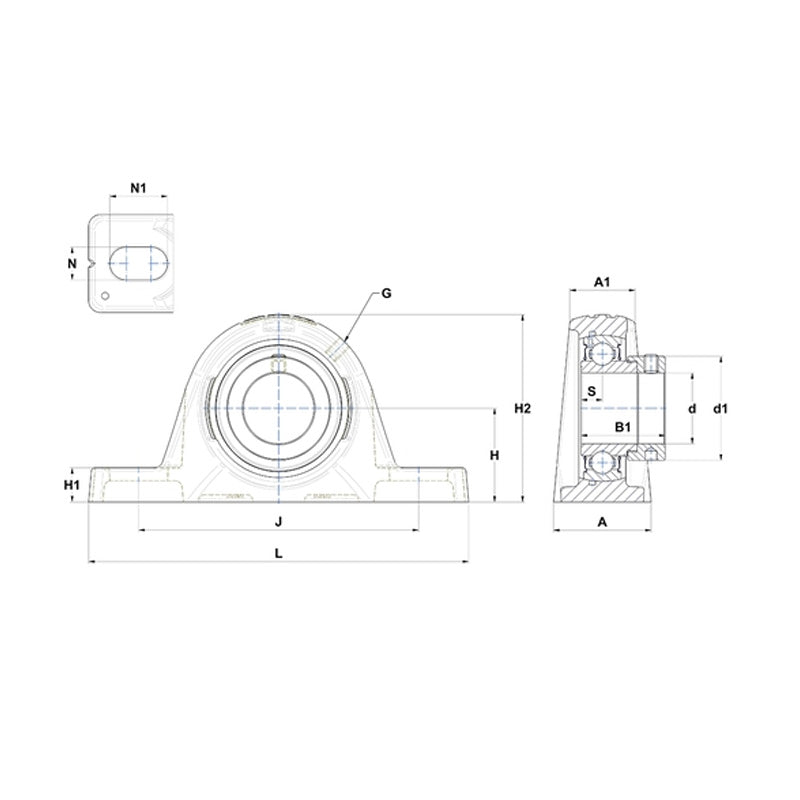

| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 55mm |
| A1 | = | 36mm |
| B | = | 30.2mm |
| d1 | = | 67.2mm |
| H | = | 55.6mm |
| H1 | = | 19.3mm |
| H2 | = | 114mm |
| J | = | 164mm |
| L | = | 214mm |
| N | = | 14mm |
| N1 | = | 27mm |
| S | = | 11mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.9 kg |
