SKU: EST209-SNR

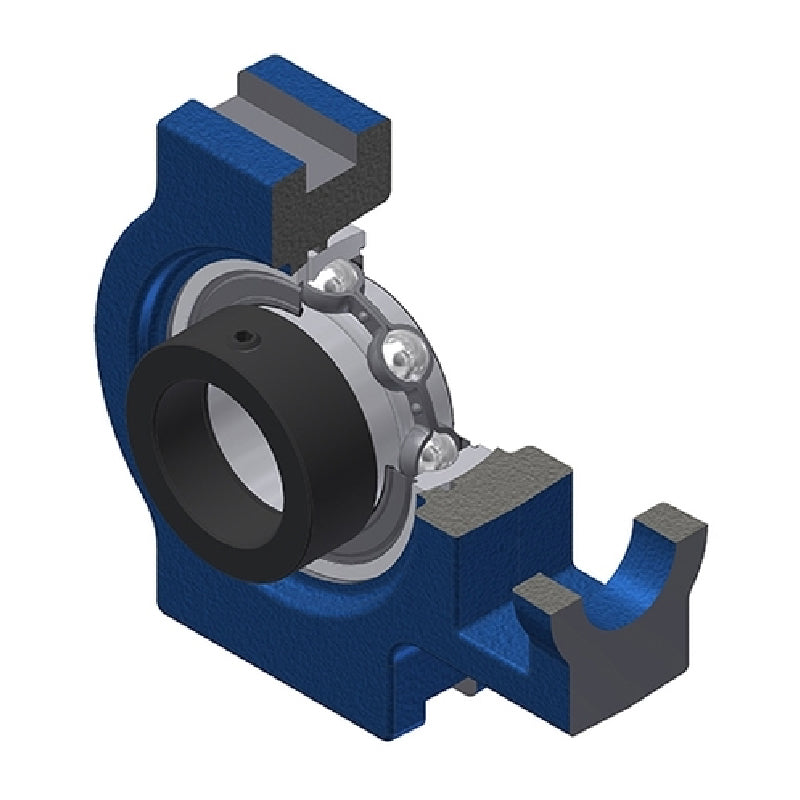

SNR EST209 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Not in stock
Quantity Price Breaks
3
€52.39
4
€49.44
9
€48.85
19
€48.27
49
€47.68
99
€47.09
499
€44.15
999
€43.56
1999
€42.97
2999
€42.38
4999
€41.20
SKU:
EST209-SNR
SNR EST209 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 45mm Bore - Allow 2-3 Days
- Regular price
- €58.86 ex VAT
- Sale price
- €58,86
- Regular price
-
Description
EST200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

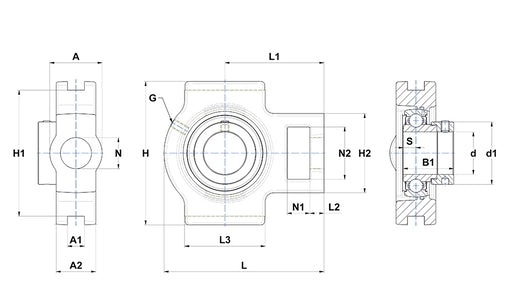

| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 49mm |
| A1 | = | 16mm |
| A2 | = | 35mm |
| B1 | = | 43.7mm |
| d1 | = | 62mm |
| H | = | 117mm |
| H1 | = | 102mm |
| H2 | = | 83mm |
| L | = | 144mm |
| L1 | = | 87mm |
| L2 | = | 16mm |
| L3 | = | 83mm |
| N | = | 29mm |
| N1 | = | 19mm |
| N2 | = | 49mm |
| S | = | 11mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 31.85 kN |
| Static load C0 | = | 20.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 2.39 kg |
