SKU: EX206G2-SNR

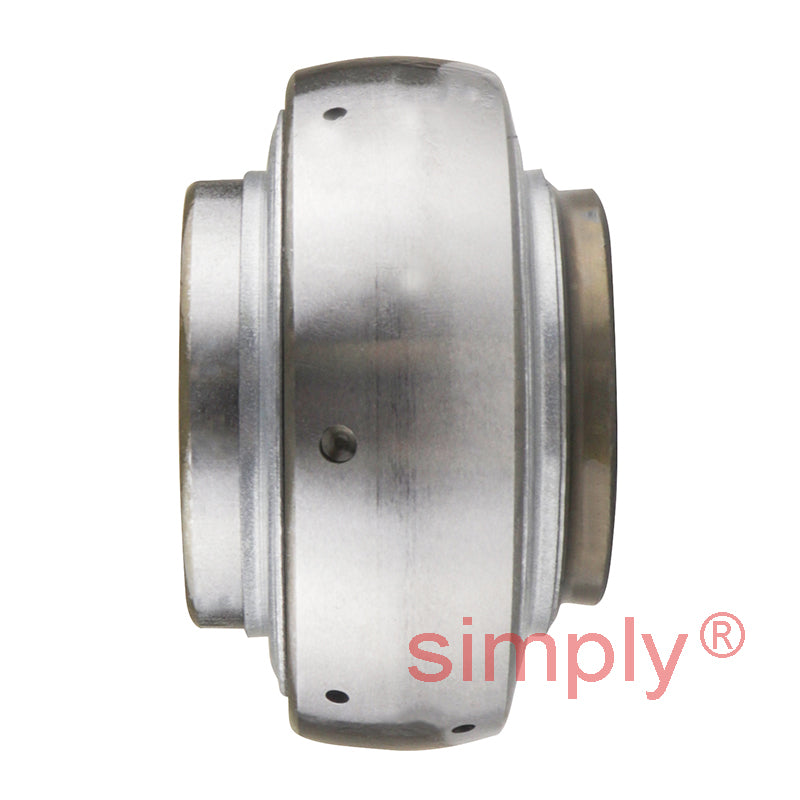

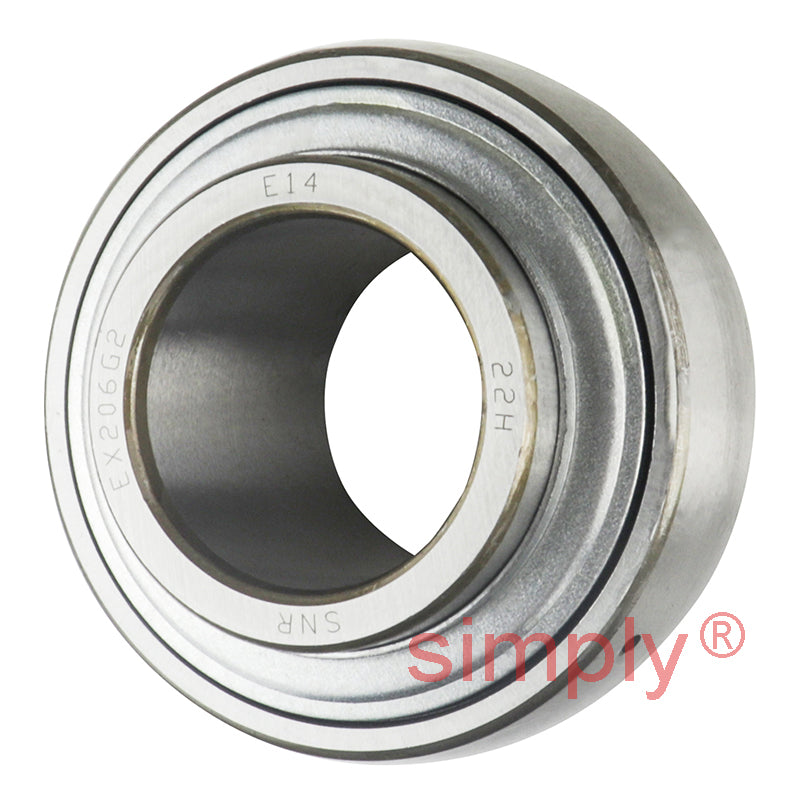

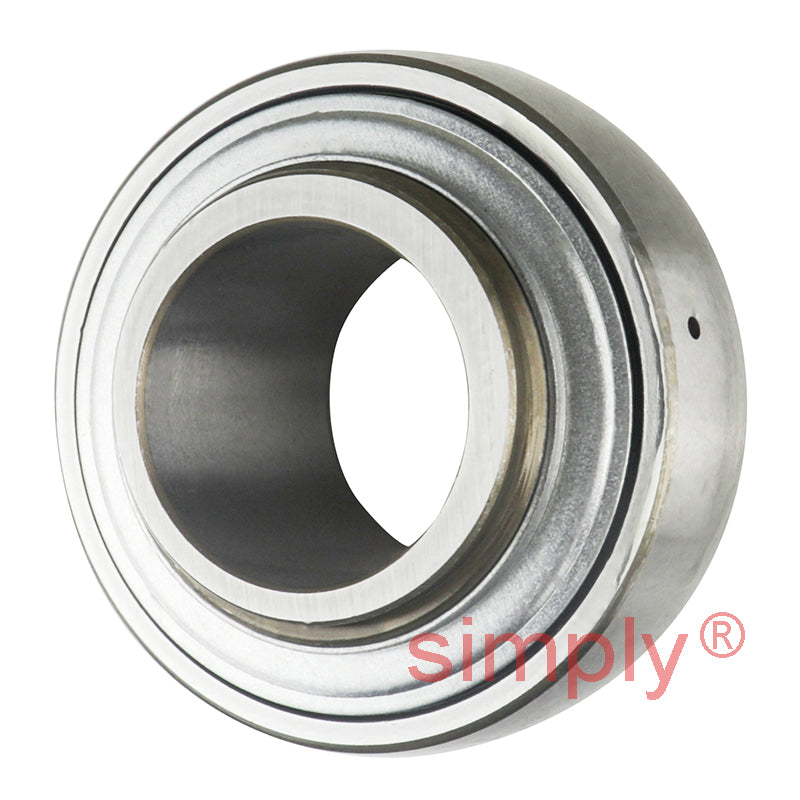

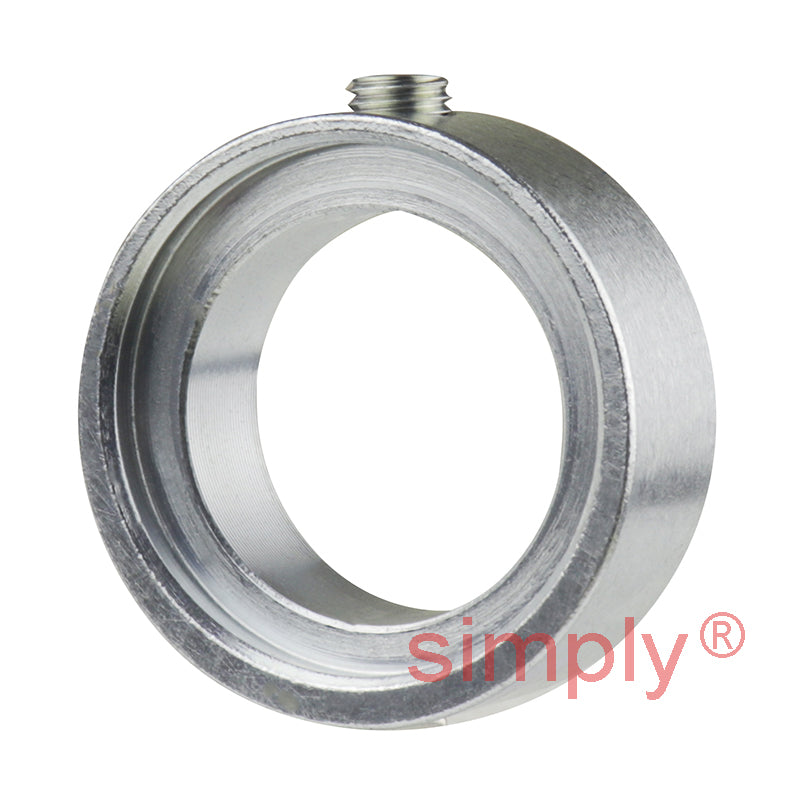

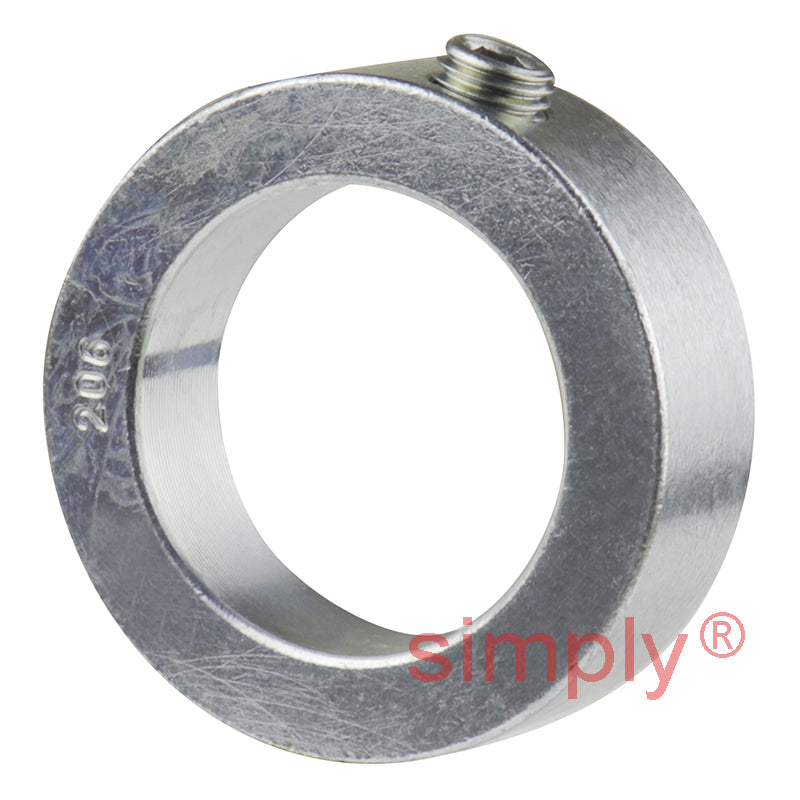

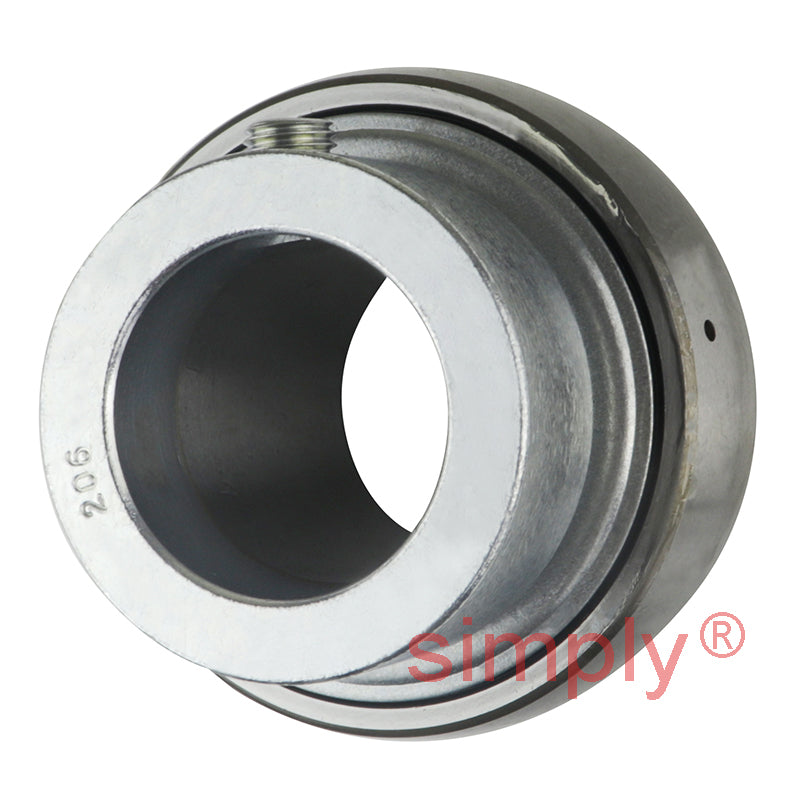

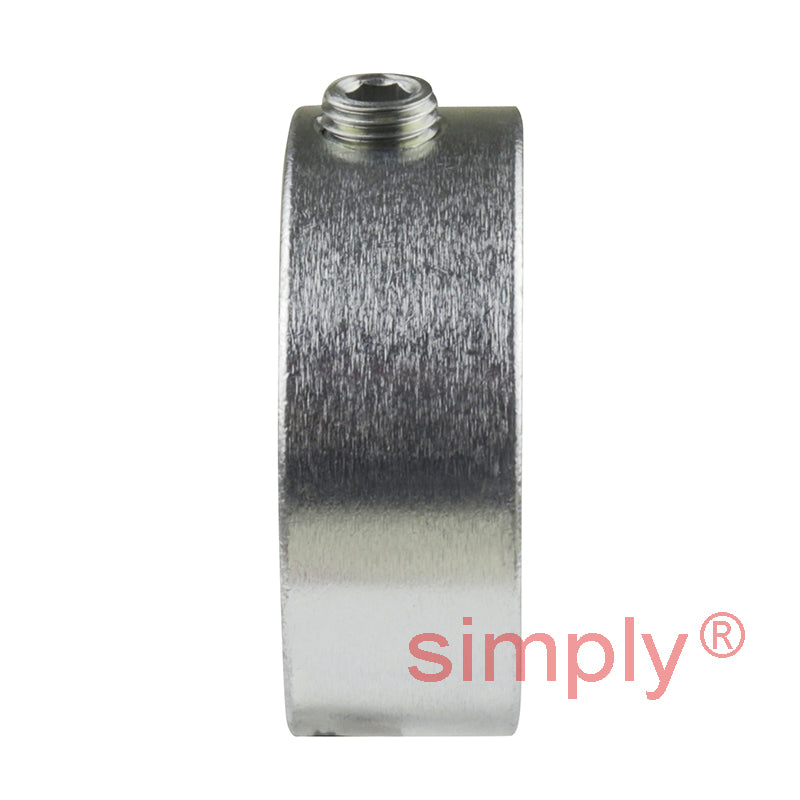

SNR EX206G2 Metric Full Width Spherical Outer Bearing Insert 30mm Bore 62mm Outside Diameter with Eccentric Collar
- Regular price
- €24.83 ex VAT
- Sale price
- €24,83
- Regular price
-
Quantity Price Breaks
SNR EX206G2 Metric Full Width Spherical Outer Bearing Insert 30mm Bore 62mm Outside Diameter with Eccentric Collar
- Regular price
- €24.83 ex VAT
- Sale price
- €24,83
- Regular price
-
Description

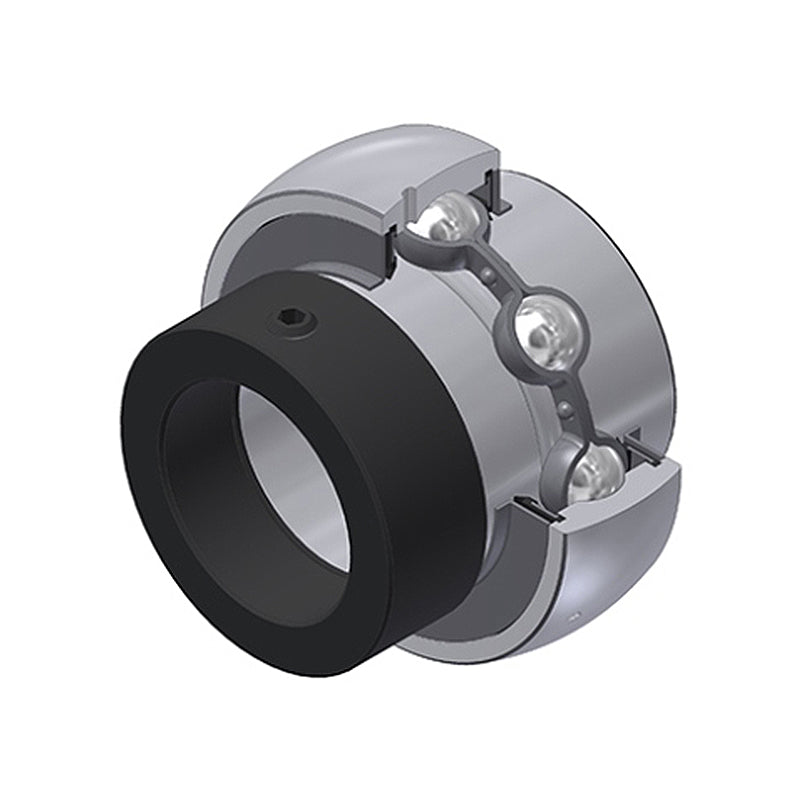

SNR EX Full Width Spherical Outer Bearing Insert with Eccentric Collar: This bearing insert is a standard version designed for robust performance. Each steel insert features a single lip seal and slinger on both sides, along with a wide inner ring design. It includes a zinc-coated sheet steel retainer over-molded with NBR, with an axially preloaded seal lip and a preconnected, zinc-coated sheet steel slinger for improved protection against mechanical impacts and particles. This bearing insert supports medium to high rotation speeds.
Benefits: High-quality brand, high-performance, precision-engineered
Technical
| d | = | 30mm |
| D | = | 62mm |
| C | = | 19mm |
| B | = | 36.4mm |
| B1 | = | 48.3mm |
| B2 | = | 15.9mm |
| d1 | = | 44.1mm |
| S | = | 18.2mm |
| m | = | 6mm |
| C1 | = | 5mm |
| r min | = | 0.6mm |
| G | = | M8x1 |
| Wrench Size | = | 4mm |
| Set screw torque | = | 11.5 Nm |
| Min Temp | = | -20 deg C |
| Max Temp | = | 100 deg C |
| Dynamic load rating C | = | 19.5kN |
| Static load rating C0 | = | 11.2kN |
| Weight | = | 0.4kg |
