SKU: EXC210-SNR

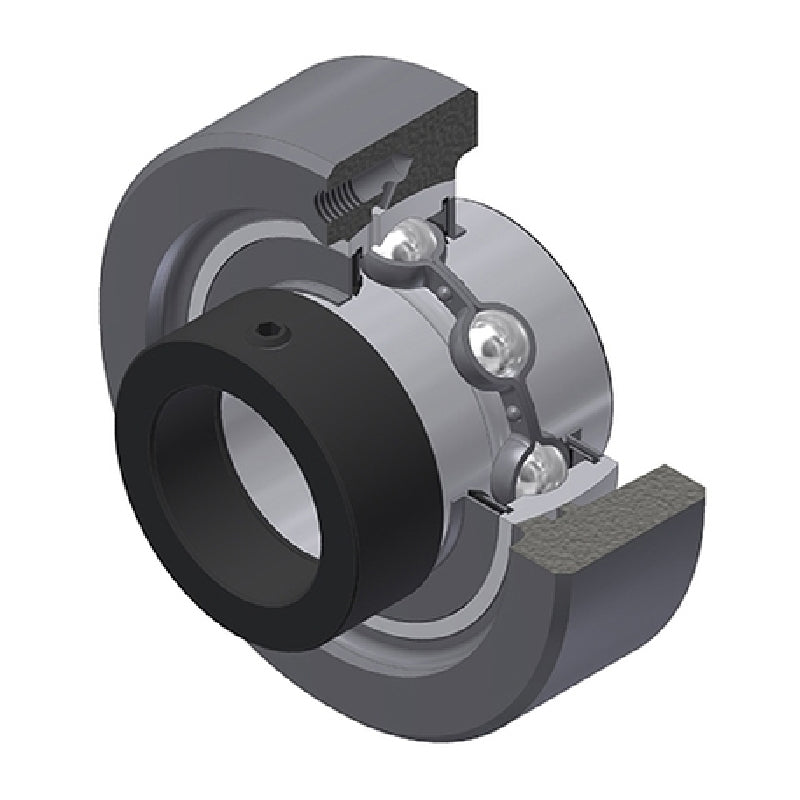

SNR EXC210 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Not in stock
Quantity Price Breaks
3
€53.36
4
€50.36
9
€49.76
19
€49.16
49
€48.56
99
€47.96
499
€44.96
999
€44.36
1999
€43.76
2999
€43.16
4999
€41.97
SKU:
EXC210-SNR
SNR EXC210 Metric Cast Iron Cartridge Unit with 50mm Bore Insert 31mm Outside Dia - Allow 2-3 Days
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Description
EXC200 Series Cast Iron Cartridge Unit: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

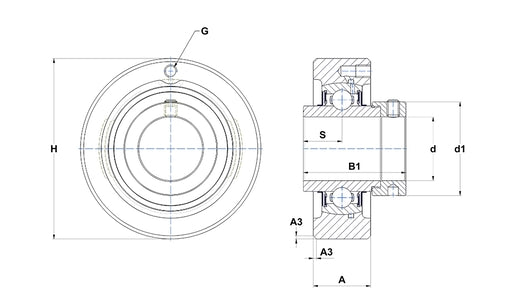

| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 31mm |
| A3 | = | 2mm |
| B1 | = | 62.7mm |
| d1 | = | 67.2mm |
| H | = | 120mm |
| S | = | 24.6mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 2.11 kg |
