SKU: EXF204-SNR

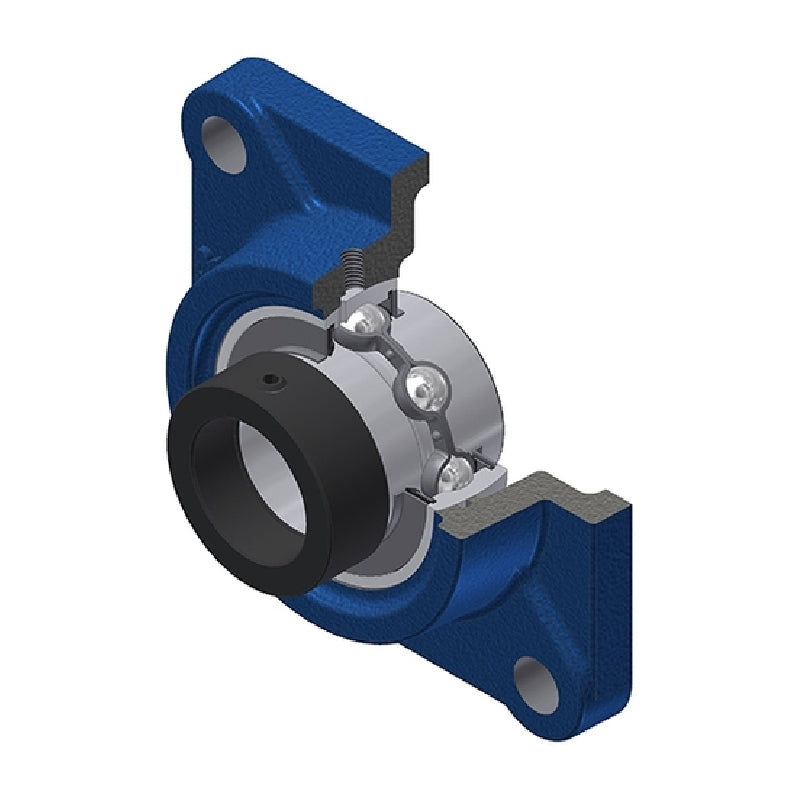

SNR EXF204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Not in stock
Quantity Price Breaks
3
€25.87
4
€24.42
9
€24.13
19
€23.84
49
€23.55
99
€23.26
499
€21.80
999
€21.51
1999
€21.22
2999
€20.93
4999
€20.35
SKU:
EXF204-SNR
SNR EXF204 Metric Four Bolt Square Cast Iron Flange Housing with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €29.07 ex VAT
- Sale price
- €29,07
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 25.5mm |
| A1 | = | 11mm |
| A2 | = | 41.5mm |
| B | = | 34mm |
| B1 | = | 43.5mm |
| d1 | = | 32.4mm |
| e | = | 15mm |
| J | = | 64mm |
| L | = | 86mm |
| N | = | 12mm |
| S | = | 17mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.64 kg |
