SKU: EXF213-SNR
SNR EXF213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €99.92 ex VAT
- Sale price
- €99,92
- Regular price
-
Not in stock
Quantity Price Breaks
3
€88.93
4
€83.93
9
€82.93
19
€81.93
49
€80.94
99
€79.94
499
€74.94
999
€73.94
1999
€72.94
2999
€71.94
4999
€69.94
SKU:
EXF213-SNR
SNR EXF213 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €99.92 ex VAT
- Sale price
- €99,92
- Regular price
-
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

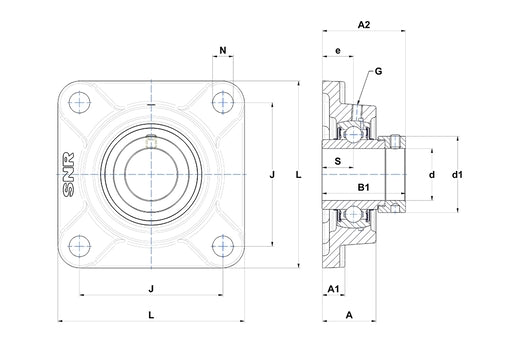

| --- | = | Dimensions |
| Shaft diameter d | = | 65mm |
| A | = | 50mm |
| A1 | = | 22mm |
| A2 | = | 81.6mm |
| B | = | 68.2mm |
| B1 | = | 85.7mm |
| d1 | = | 86mm |
| e | = | 30mm |
| J | = | 149mm |
| L | = | 187mm |
| N | = | 19mm |
| S | = | 34.1mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 57.2 kN |
| Static load C0 | = | 40 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 6.03 kg |
