SNR EXFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
SNR EXFC212 Metric Four Bolt Cast Iron Round Flanged Housing with 60mm Eccentric Collar Insert - Allow 2-3 Days
Regular price
€95,27
ex VAT
Regular price
Sale price
€95,27
ex VAT
In stock
Price Break
3+
€72,40
4+
€68,33
9+
€67,52
19+
€66,70
49+
€65,89
99+
€65,08
499+
€61,01
999+
€60,20
1999+
€59,38
2999+
€58,57
4999+
€56,94
Quantity
Couldn't load pickup availability
Share this product
Description
Description
EXFC200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- EXFC
- Pitch Circle Diameter:
- 160mm
Technical
Technical

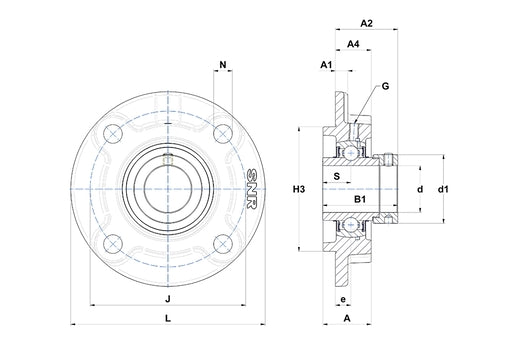

| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 15mm |
| A2 | 63.8mm |
| A4 | 36mm |
| B | 61.8mm |
| B1 | 77.7mm |
| d1 | 82mm |
| e | 17mm |
| H3 | 135mm |
| J | 160mm |
| L | 195mm |
| N | 19mm |
| S | 30.9mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 5.26 kg |
