SKU: EXFCE216-SNR

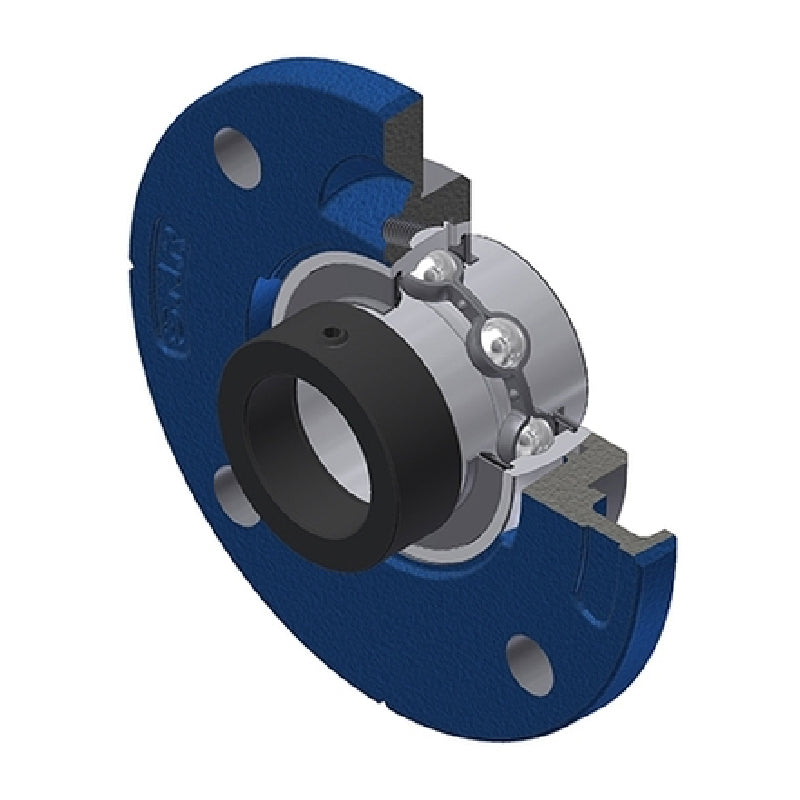

SNR EXFCE216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €184.38 ex VAT
- Sale price
- €184,38
- Regular price
-
Not in stock
Quantity Price Breaks
3
€164.10
4
€154.88
9
€153.04
19
€151.19
49
€149.35
99
€147.50
499
€138.29
999
€136.44
1999
€134.60
2999
€132.75
4999
€129.07
SKU:
EXFCE216-SNR
SNR EXFCE216 Metric Four Bolt Cast Iron Round Flanged Housing with 80mm Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €184.38 ex VAT
- Sale price
- €184,38
- Regular price
-
Description
EXFCE200 Series 4 Bolt Cast Iron Round Flanged Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar with a grub screw to facilitate securing the bearing to the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, eccentric collar/grub screw fixing
Technical

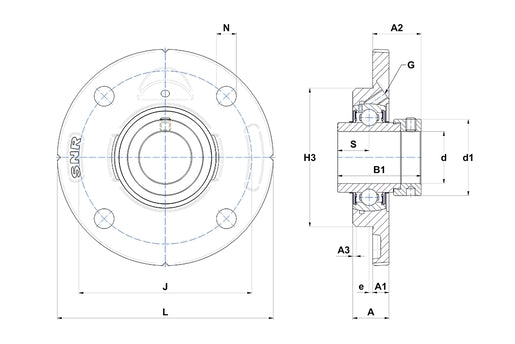

| --- | = | Dimensions |
| Shaft diameter | = | 80mm |
| A | = | 33mm |
| A1 | = | 18.5mm |
| A2 | = | 59.9mm |
| A3 | = | 6mm |
| B | = | 74.6mm |
| B1 | = | 95.2mm |
| d1 | = | 110mm |
| e | = | 2mm |
| H3 | = | 160mm |
| J | = | 184mm |
| L | = | 220mm |
| N | = | 18mm |
| S | = | 37.3mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 72.5 kN |
| Static load C0 | = | 54.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 5.91 kg |
