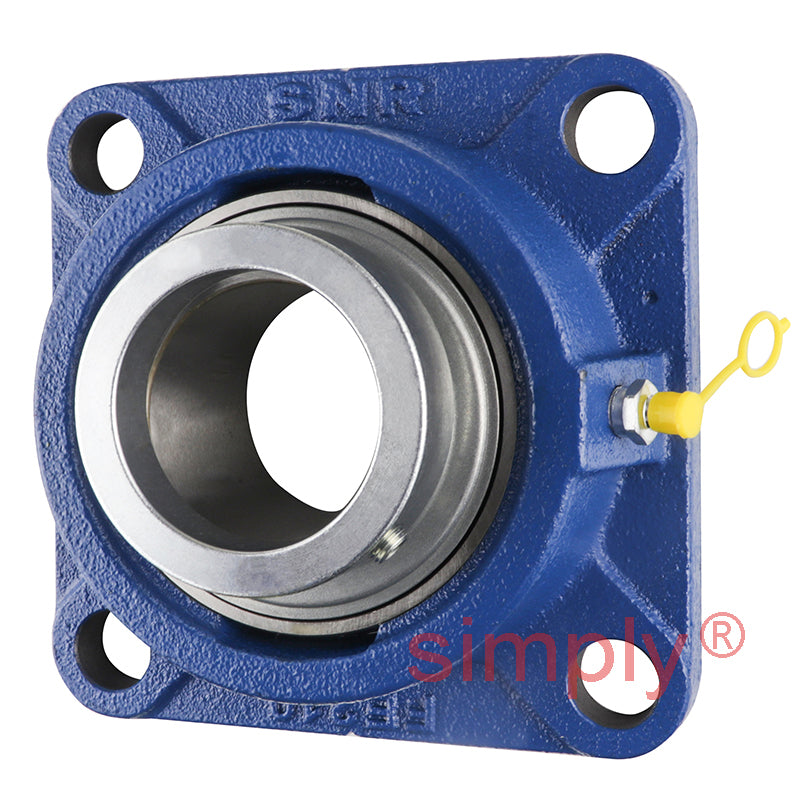

SNR EXFE212 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €84.47 ex VAT
- Sale price
- €84,47
- Regular price
-
Description
EXFE200 Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 60mm |
| A | = | 53.5mm |
| A1 | = | 16mm |
| A2 | = | 80.8mm |
| B | = | 61.8mm |
| B1 | = | 77.7mm |
| d1 | = | 82mm |
| e | = | 34mm |
| J | = | 143mm |
| L | = | 175mm |
| N | = | 18mm |
| S | = | 30.9mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 52.5 kN |
| Static load C0 | = | 32.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 5.2 kg |
