SKU: EXFLE207L3-SNR

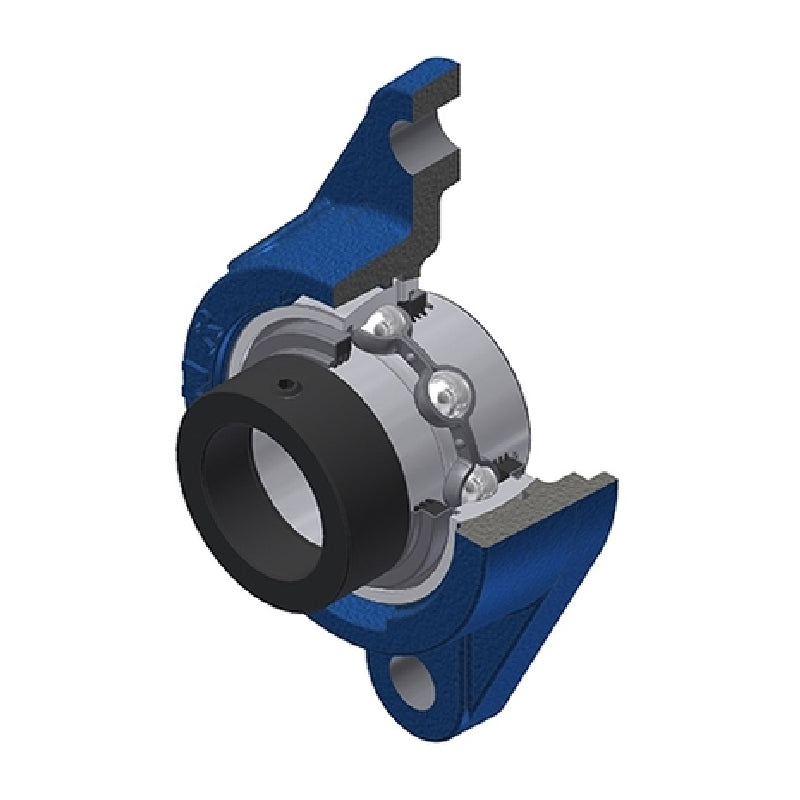

SNR EXFLE207L3 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
In stock
Quantity Price Breaks
3
€50.45
4
€47.61
9
€47.04
19
€46.48
49
€45.91
99
€45.34
499
€42.51
999
€41.94
1999
€41.38
2999
€40.81
4999
€39.68
SKU:
EXFLE207L3-SNR
SNR EXFLE207L3 Metric Two Bolt Cast Iron Oval Housing with 35mm Bore Eccentric Collar Insert with Triple Lip Seal
- Regular price
- €56.68 ex VAT
- Sale price
- €56,68
- Regular price
-
Description
EXFLE200 Series 2 Bolt Cast Iron Oval Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 33.7mm |
| A1 | = | 12.5mm |
| A2 | = | 53.3mm |
| B | = | 37.6mm |
| B1 | = | 51.1mm |
| d1 | = | 51.1mm |
| e | = | 21mm |
| H | = | 155mm |
| J | = | 130mm |
| L | = | 92mm |
| N | = | 14mm |
| S | = | 18.8mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.3 kg |
