SKU: EXP210-SNR

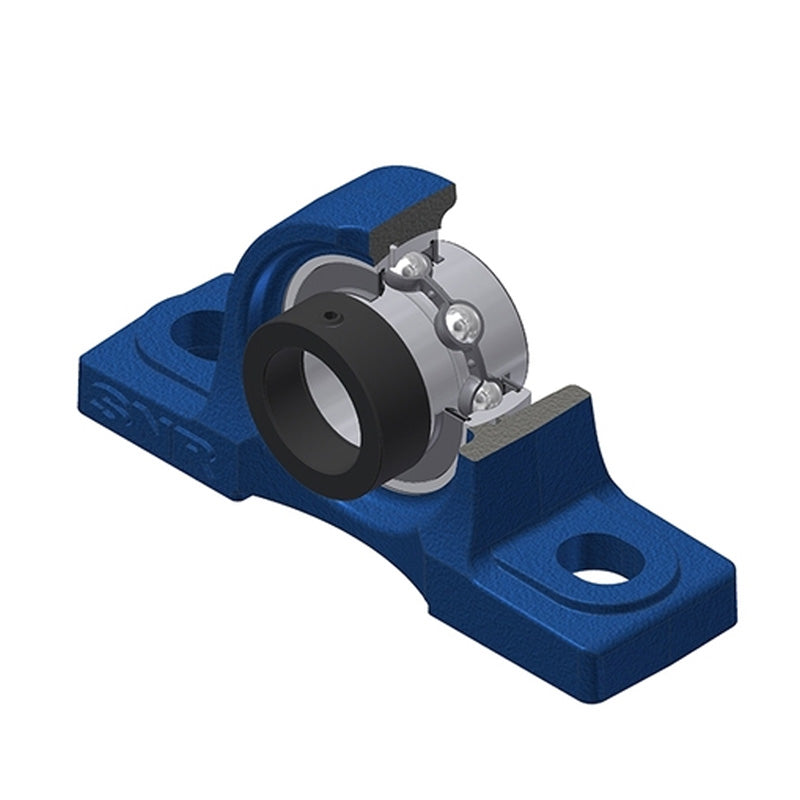

SNR EXP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert
- Regular price
- €63.22 ex VAT
- Sale price
- €63,22
- Regular price
-
In stock
Quantity Price Breaks
3
€56.27
4
€53.10
9
€52.47
19
€51.84
49
€51.21
99
€50.58
499
€47.42
999
€46.78
1999
€46.15
2999
€45.52
4999
€44.25
SKU:
EXP210-SNR
SNR EXP210 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Eccentric Collar Insert
- Regular price
- €63.22 ex VAT
- Sale price
- €63,22
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

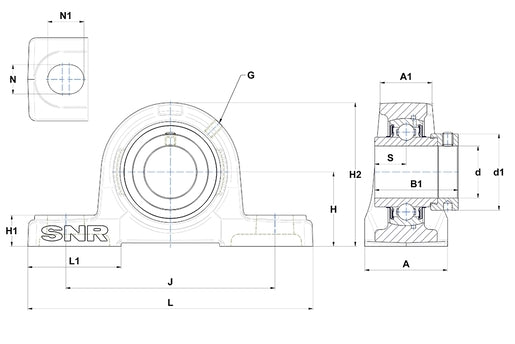

| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 60mm |
| A1 | = | 39mm |
| B | = | 49.2mm |
| d1 | = | 67.2mm |
| H | = | 57.2mm |
| H1 | = | 22mm |
| H2 | = | 114mm |
| J | = | 159mm |
| L | = | 206mm |
| L1 | = | 65mm |
| N | = | 20mm |
| N1 | = | 25mm |
| S | = | 24.6mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 3.21 kg |
