SKU: EXP211-32-SNR

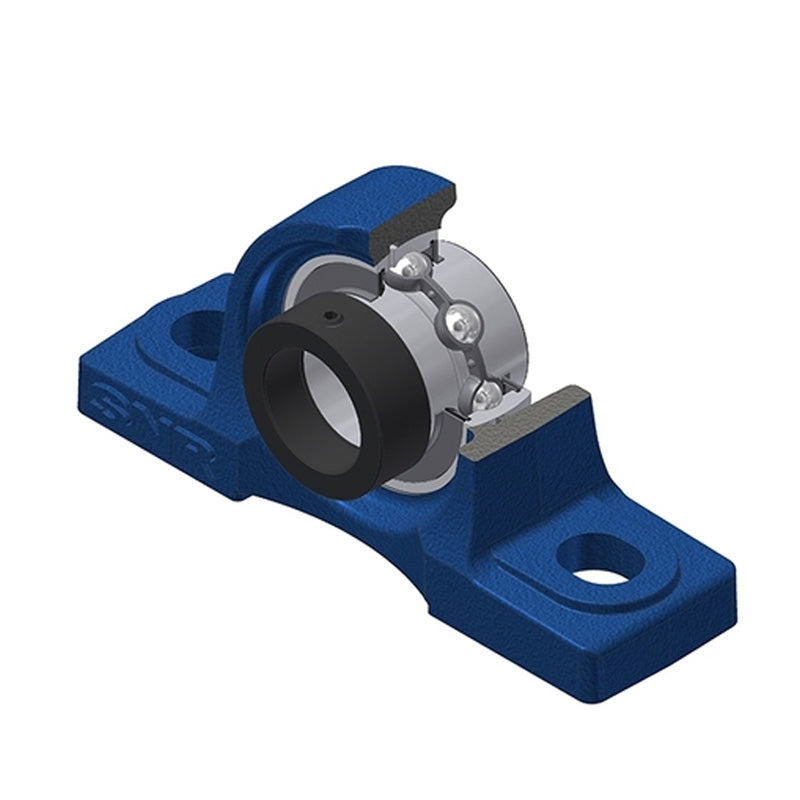

SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €71.94 ex VAT
- Sale price
- €71,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€64.03
4
€60.43
9
€59.71
19
€58.99
49
€58.27
99
€57.55
499
€53.96
999
€53.24
1999
€52.52
2999
€51.80
4999
€50.36
SKU:
EXP211-32-SNR
SNR EXP211-32 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2 inch Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €71.94 ex VAT
- Sale price
- €71,94
- Regular price
-
Description
EXP200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 2 inch |
| A | = | 60mm |
| A1 | = | 40mm |
| B | = | 55.4mm |
| d1 | = | 74.5mm |
| H | = | 63.5mm |
| H1 | = | 22mm |
| H2 | = | 126mm |
| J | = | 171mm |
| L | = | 219mm |
| L1 | = | 70mm |
| N | = | 20mm |
| N1 | = | 25mm |
| S | = | 27.7mm |
| Dz | = | mm |
| Z | = | mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 43.55 kN |
| Static load C0 | = | 29.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 16.8 Nm |
| Mass | = | 4.18 kg |
