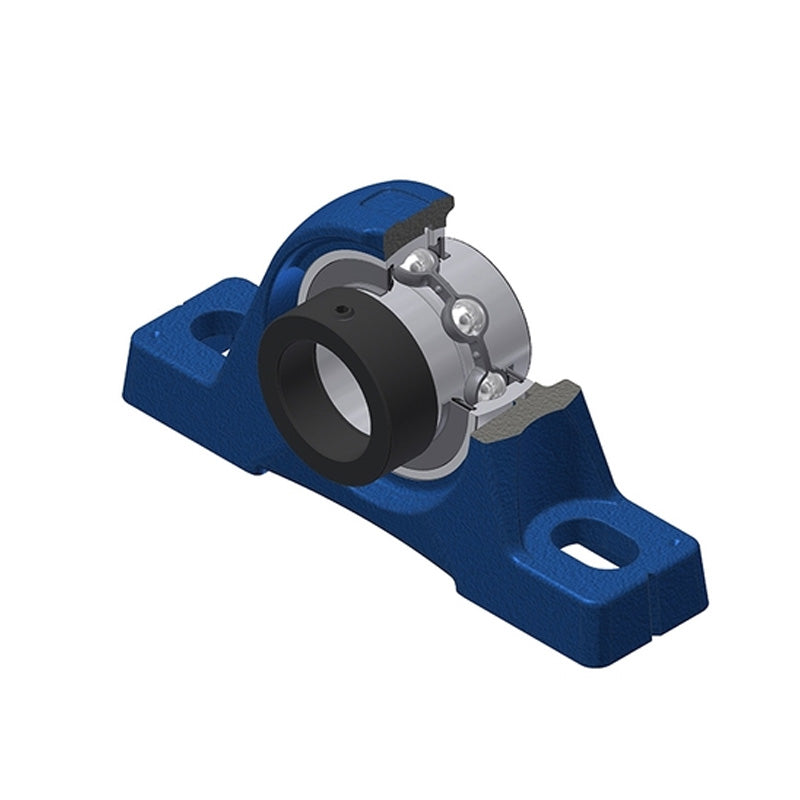

• SNR EXPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
1 1

SKU: EXPE211-SNR

SNR EXPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days

SNR EXPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Eccentric Collar Insert - Allow 2-3 Days
€72,43 ex VAT
€72,43 ex VAT
Sale Sold out

In stock

Price Break
3+ €55,05
4+ €51,96
9+ €51,34
19+ €50,72
49+ €50,10
99+ €49,48
499+ €46,39
999+ €45,77
1999+ €45,15
2999+ €44,53
4999+ €43,30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
3O5D679ERX
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
EXPE
Bolt Hole Centres:
176mm
Technical

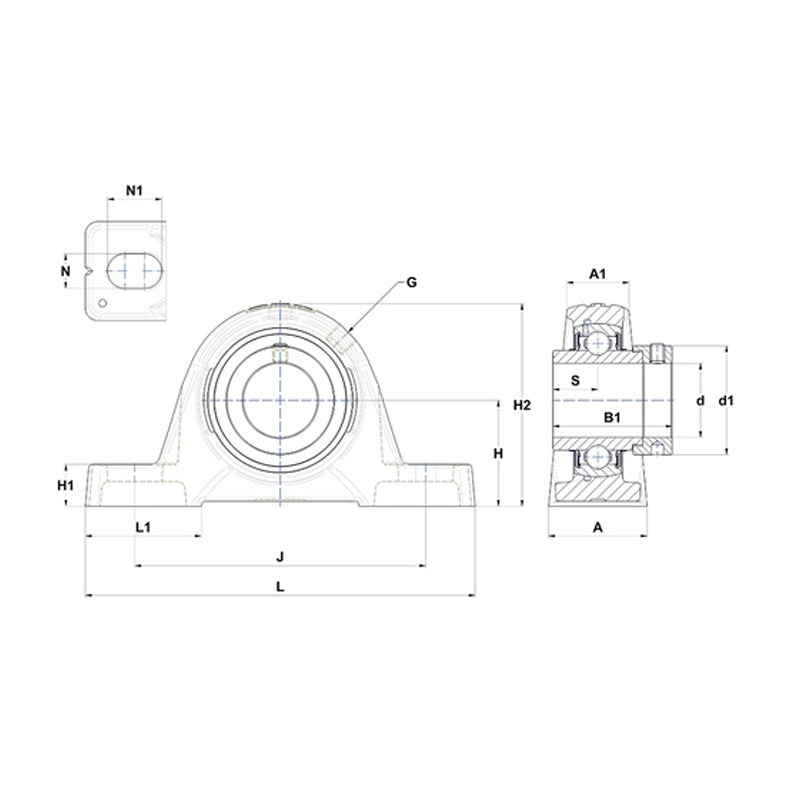

--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 55.4mm
d1 74.5mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 27.7mm
G R1/8
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.69 kg
