SKU: EXSP204-SNR

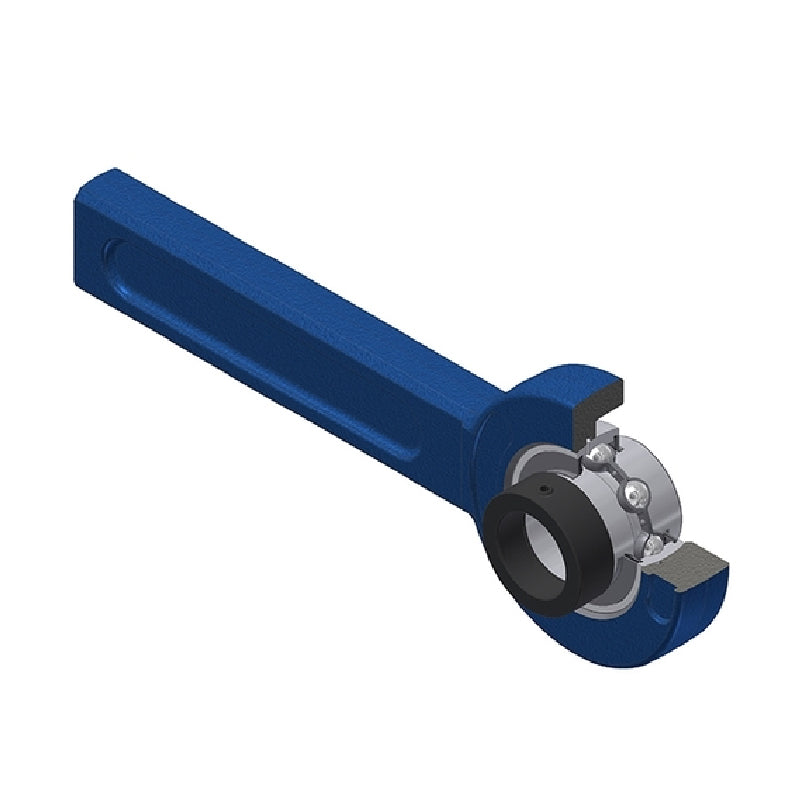

SNR EXSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Not in stock
Quantity Price Breaks
3
€38.80
4
€36.62
9
€36.19
19
€35.75
49
€35.32
99
€34.88
499
€32.70
999
€32.26
1999
€31.83
2999
€31.39
4999
€30.52
SKU:
EXSP204-SNR
SNR EXSP204 Metric Cast Iron Tensioner Unit with 20mm Bore Eccentric Collar Insert - Allow 2-3 Days
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Description
EXSP200 Series Cast Iron Tensioner Units: These bearing units are supplied with a fully sealed bearing insert fitted in the tensioner housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical

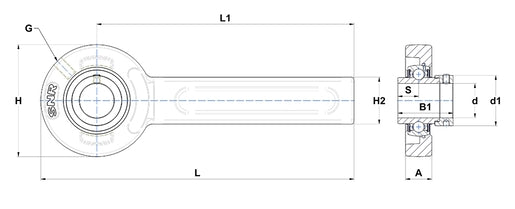

| --- | = | Dimensions |
| Shaft diameter | = | 20mm |
| A | = | 21mm |
| B1 | = | 43.5mm |
| d1 | = | 32.4mm |
| H | = | 78mm |
| H2 | = | 41mm |
| L | = | 264mm |
| L1 | = | 225mm |
| S | = | 17mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Stretcher frame 2 | = | SPR11 |
| Stretcher frame 3 | = | SPR12 |
| Stretcher frame 4 | = | SPR14 |
| Mass | = | 1.62 kg |
