SKU: EXT205-SNR

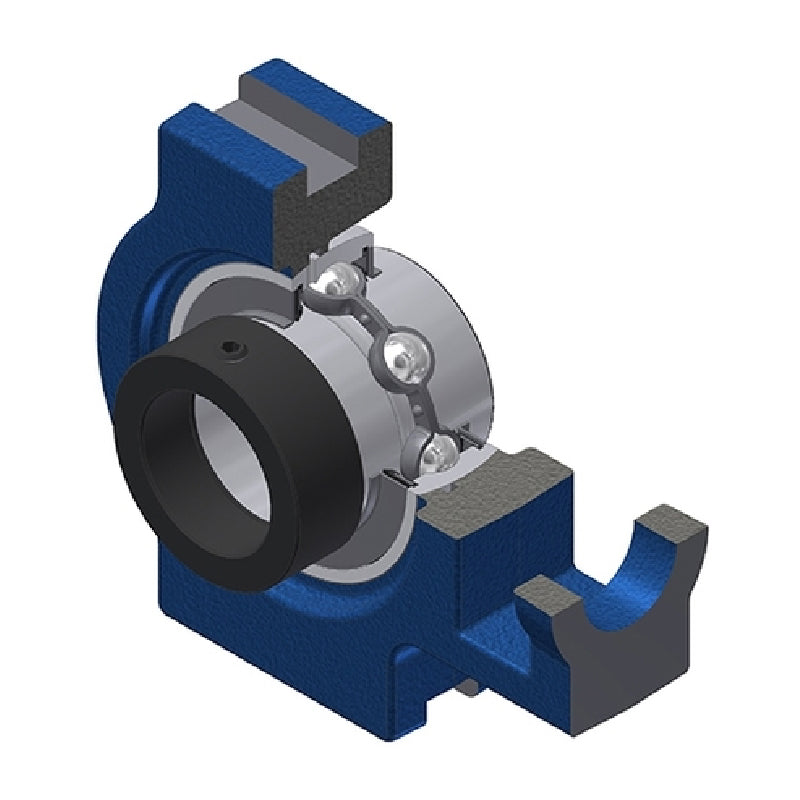

SNR EXT205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Not in stock
Quantity Price Breaks
3
€30.72
4
€29.00
9
€28.65
19
€28.31
49
€27.96
99
€27.62
499
€25.89
999
€25.54
1999
€25.20
2999
€24.85
4999
€24.16
SKU:
EXT205-SNR
SNR EXT205 Metric Cast Iron Take Up Unit with Eccentric Collar Insert 25mm Bore - Allow 2-3 Days
- Regular price
- €34.52 ex VAT
- Sale price
- €34,52
- Regular price
-
Description
EXT200 Series Cast Iron Take Up Units: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

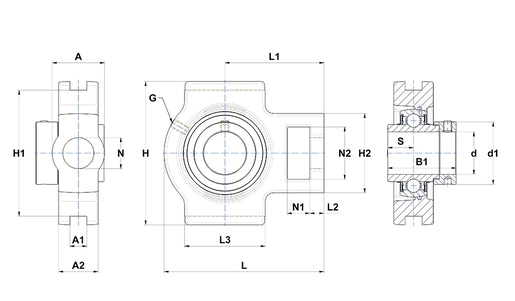

Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 25mm |
| A | = | 32mm |
| A1 | = | 12mm |
| A2 | = | 24mm |
| B1 | = | 44.3mm |
| d1 | = | 37.4mm |
| H | = | 89mm |
| H1 | = | 76mm |
| H2 | = | 51mm |
| L | = | 97mm |
| L1 | = | 62mm |
| L2 | = | 10mm |
| L3 | = | 51mm |
| N | = | 19mm |
| N1 | = | 16mm |
| N2 | = | 32mm |
| S | = | 17.4mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 0.85 kg |
