SKU: F110H-MB
Major Branded F110H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 75mm / 3 inch
Major Branded F110H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 75mm / 3 inch
Regular price
€155,69
ex VAT
Regular price
Sale price
€155,69
ex VAT
Equivalent to: F110H-3020
In stock
Price Break
10+
€118,32
19+
€111,67
29+
€110,34
39+
€109,01
49+
€107,68
74+
€106,35
99+
€99,71
199+
€98,38
249+
€97,05
499+
€95,72
999+
€93,06
Quantity
Couldn't load pickup availability
Description
Description
Branded Drive Coupling Outer Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

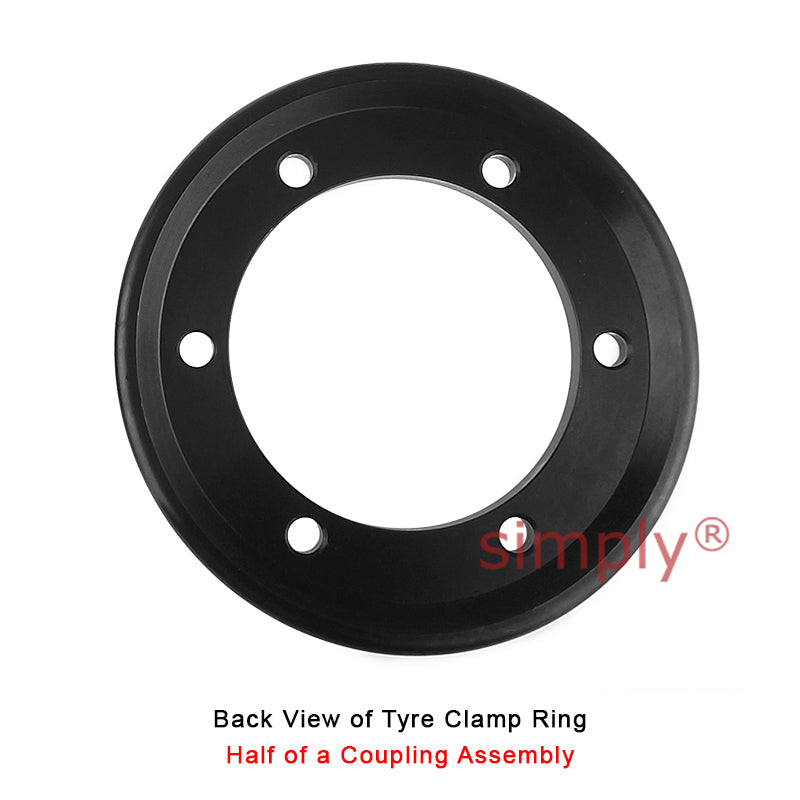

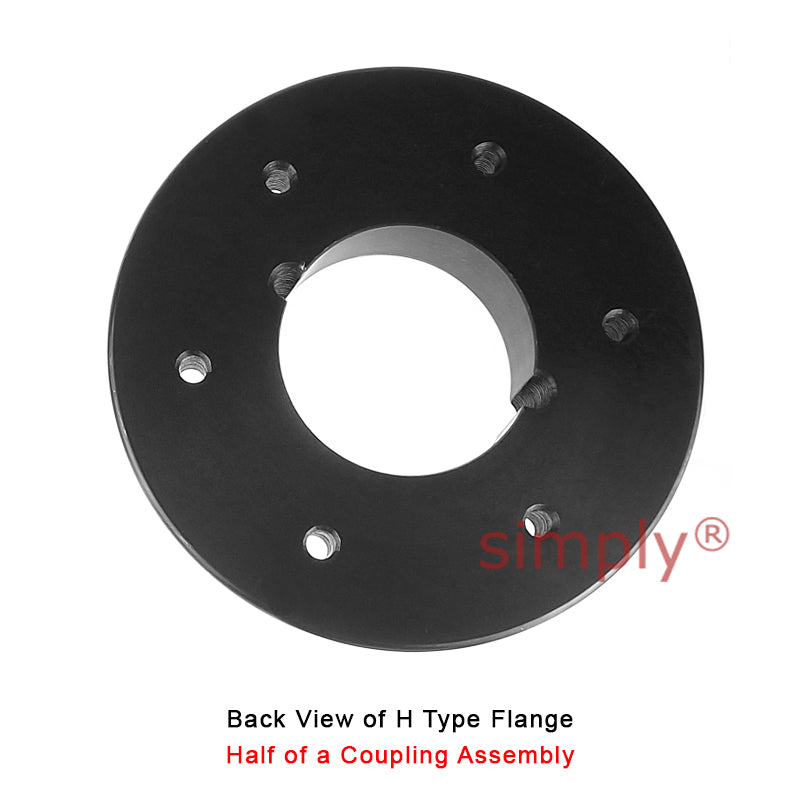

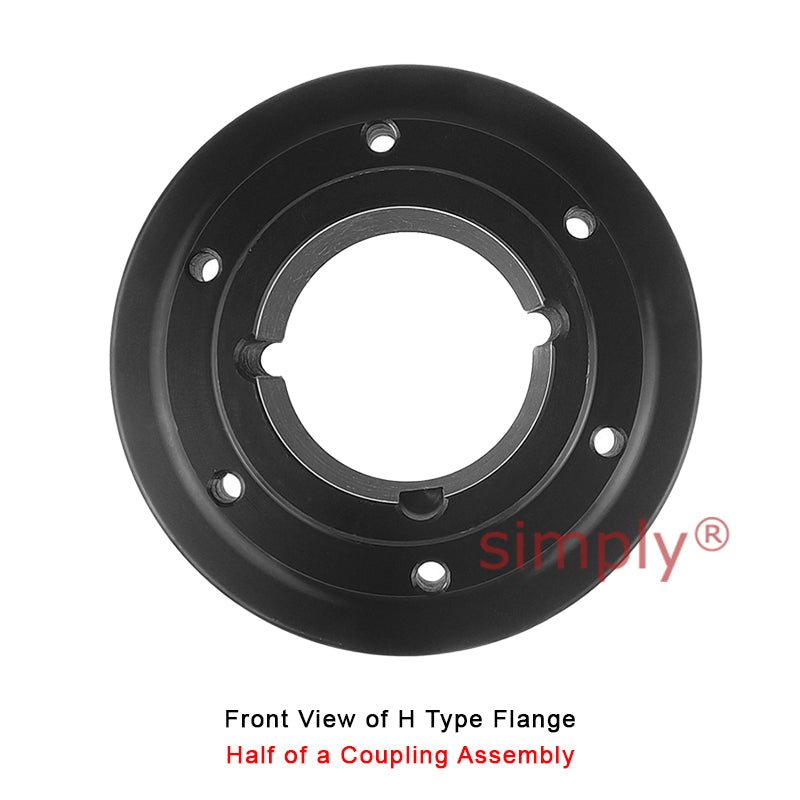

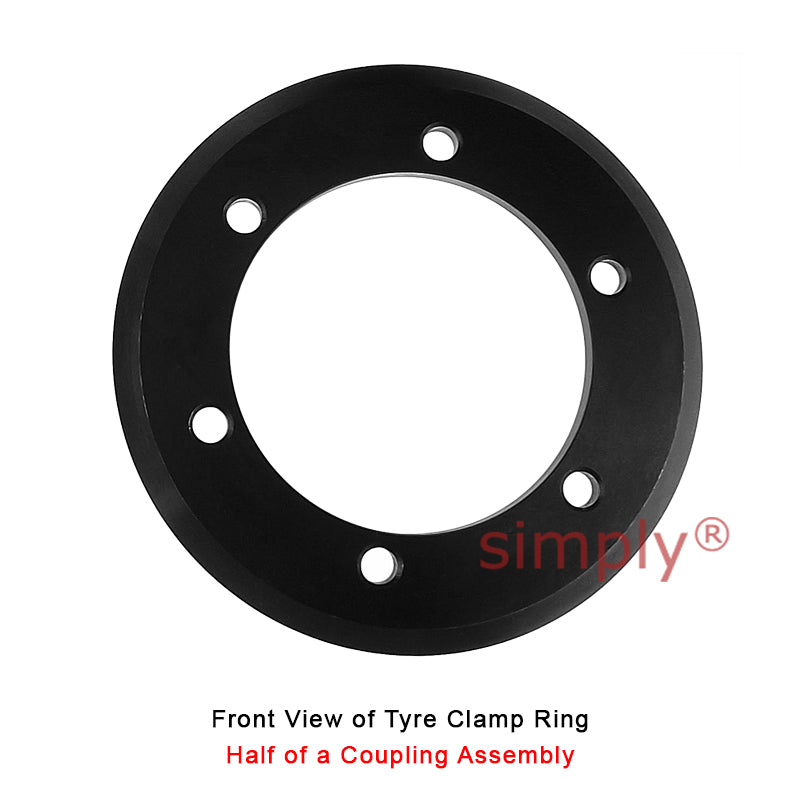

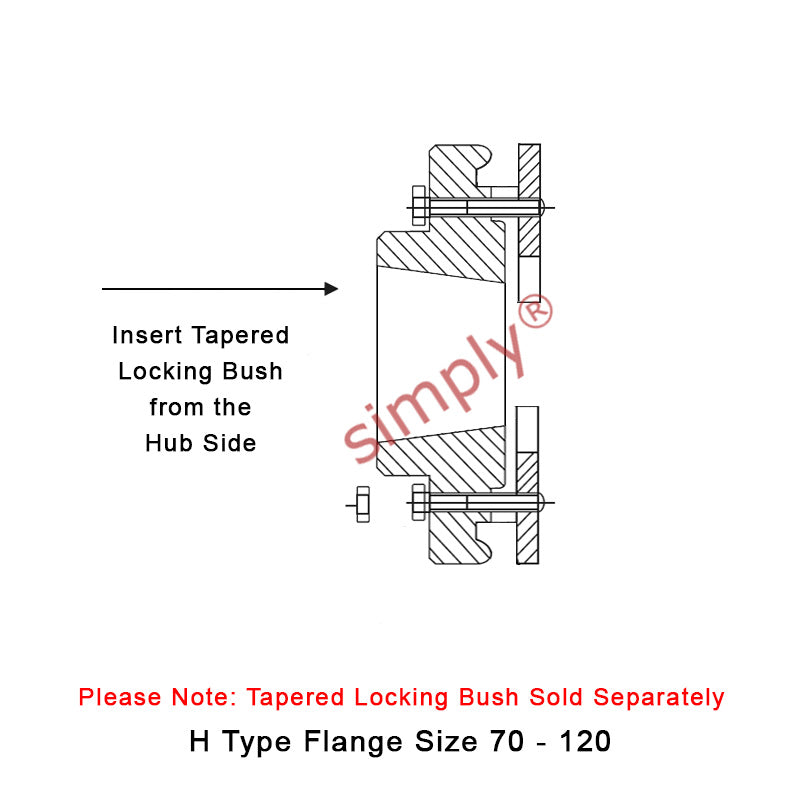

This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 75mm or 3 inch
Technical
Technical
| H Type - Bush | 3020 <a href="advanced_search_result.php?keywords=taper+lock+bush+3020">[Click Here]</a> |
|---|---|
| H Type - Max Bore | 75mm |
| H Type - Max Bore | 3 inch |

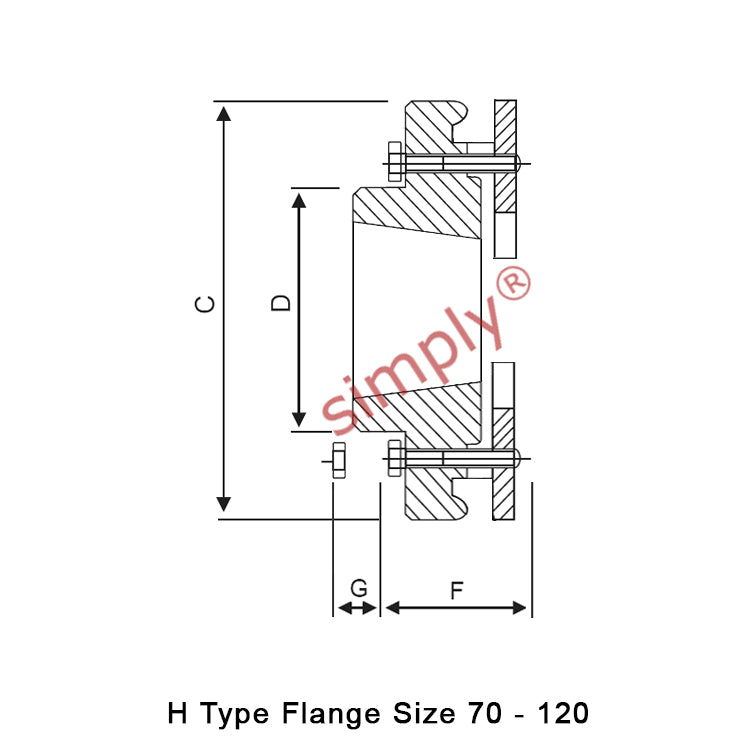

| H Type - Flange A | 279mm |
| H Type - Flange B | 134mm |
| H Type - Flange C | 233mm |
| H Type - Flange E | 12.5mm |
| H Type - Flange G | 55mm |
| H Type - Flange F | 63.5mm |
| H Type - Flange D | 51mm |
| H Type - Flange Weight | 9.45kg |
| H Type - Inertia | 0.078kgm2 |
| H Type - Flange Face Spacing | 25mm |
| H Type - Gap Between Tyre Ends | 3mm |
| H Type - Nominal Torque | 875 Nm |
| H Type - Max Speed | 2300 rev/min |
| H Type - Max Par Mis | 2.9mm |
| H Type - Max End Float | 3.7mm |

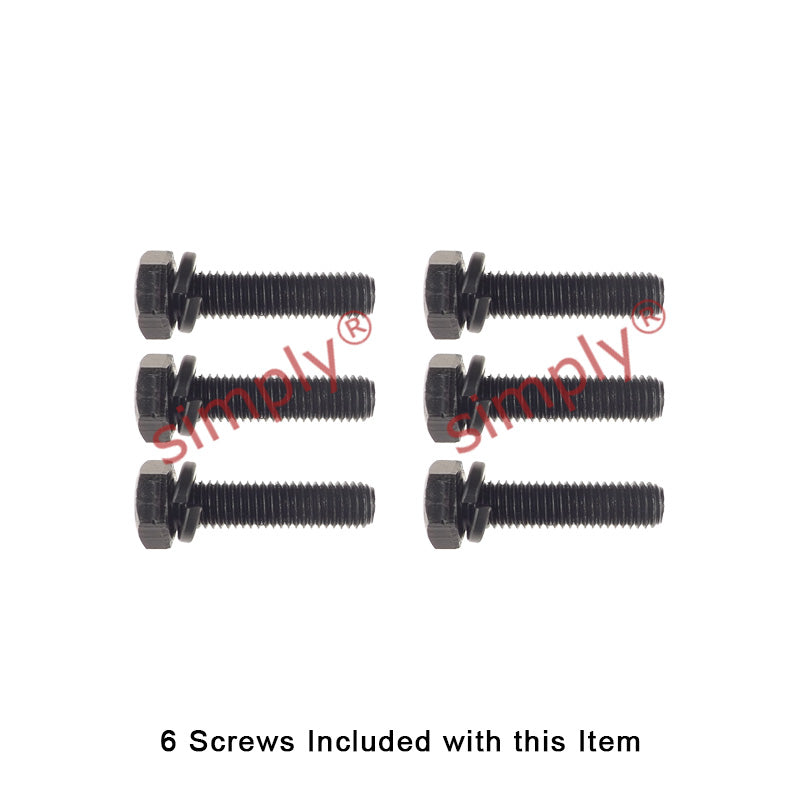

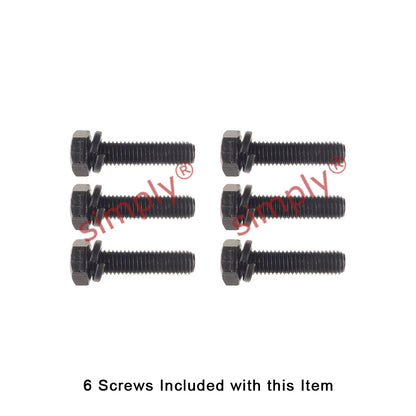

| H Type - Screw Size | M10 |
| H Type - Tigtening Torque | 40 Nm |
| Max Power at 100 rpm | 9.16 kW |
| Max Power at 200 rpm | 18.3 kW |
| Max Power at 300 rpm | 27.5 kW |
| Max Power at 400 rpm | 36.6 kW |
| Max Power at 500 rpm | 45.8 kW |
| Max Power at 600 rpm | 55 kW |
| Max Power at 700 rpm | 64.1 kW |
| Max Power at 720 rpm | 66 kW |
| Max Power at 800 rpm | 73.3 kW |
| Max Power at 900 rpm | 82.5 kW |
| Max Power at 960 rpm | 88 kW |
| Max Power at 1000 rpm | 91.6 kW |
| Max Power at 1200 rpm | 110 kW |
| Max Power at 1400 rpm | 128 kW |
| Max Power at 1440 rpm | 132 kW |
| Max Power at 1600 rpm | 147 kW |
| Max Power at 1800 rpm | 165 kW |
| Max Power at 2000 rpm | 183 kW |
| Max Power at 2200 rpm | 202 kW |
| Maximum Speed | 2300 rev/min |
| Nominal Torque | 875 Nm TKN |
| Maximum Torque | 2137 Nm TK MAX |
| Torsional Stiffness | 178 Nm/° |
| Max. Parallel Misalignment | 2.9mm |
| Maximum End Float | 3.7mm ± |
| Approximate Mass | 1.4kg |
| Alternating Torque | 356 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
