SKU: F120F-MB
Major Branded F120F-MB Drive Coupling Inner Tapered Locking Bush Type Max Bush Bore 100mm / 4 inch
Major Branded F120F-MB Drive Coupling Inner Tapered Locking Bush Type Max Bush Bore 100mm / 4 inch
Regular price
€116,11
ex VAT
Regular price
Sale price
€116,11
ex VAT
Equivalent to: F120F-3525
In stock
Price Break
10+
€88,24
19+
€83,28
29+
€82,29
39+
€81,30
49+
€80,31
74+
€79,32
99+
€74,36
199+
€73,37
249+
€72,38
499+
€71,38
999+
€69,40
Quantity
Couldn't load pickup availability
Description
Description
Branded Drive Coupling Inner Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

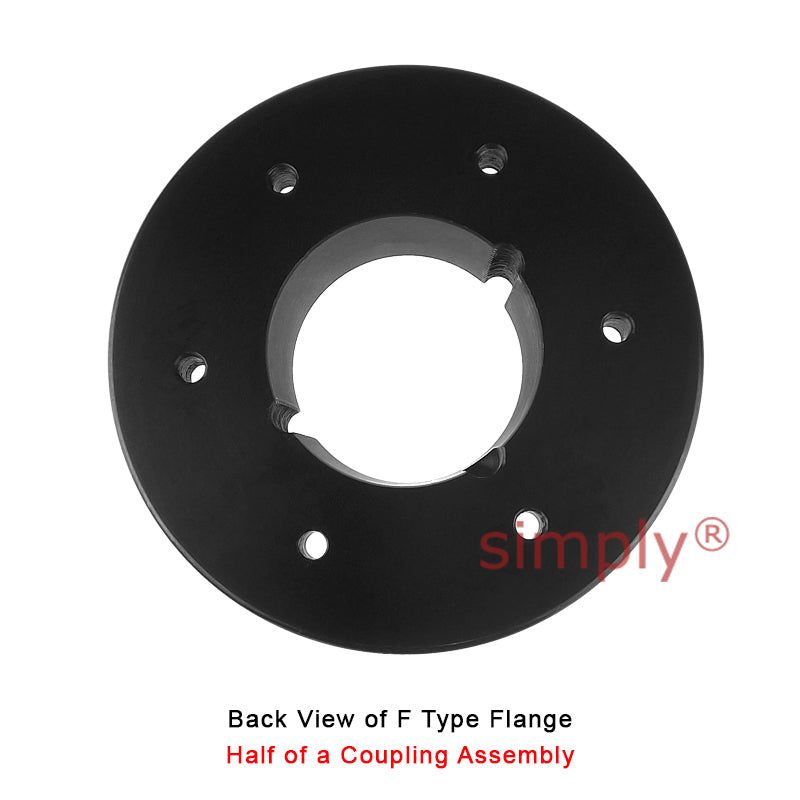

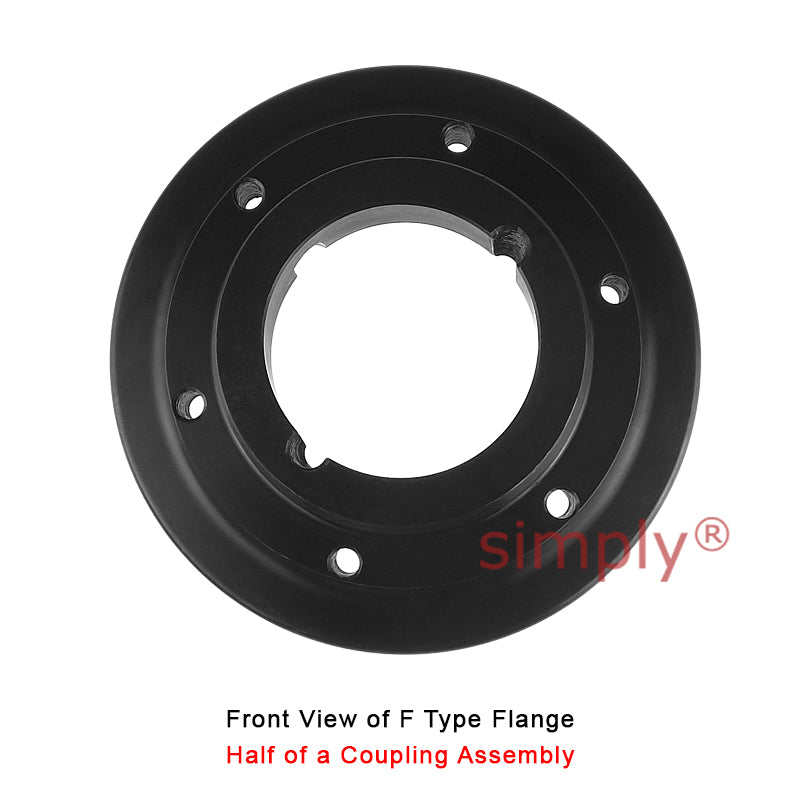

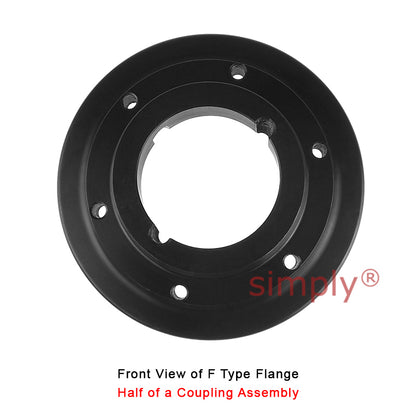

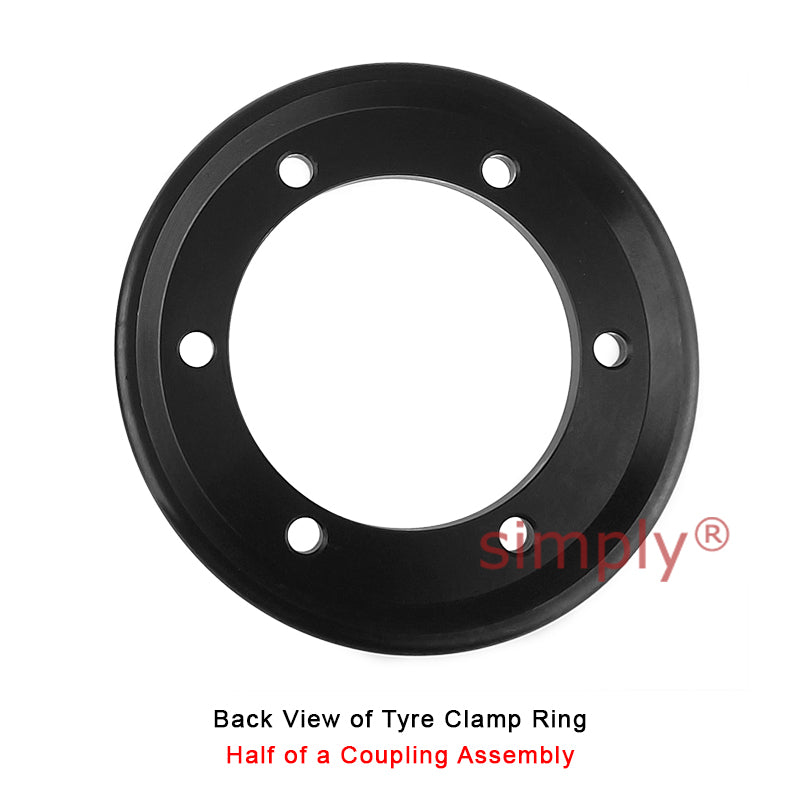

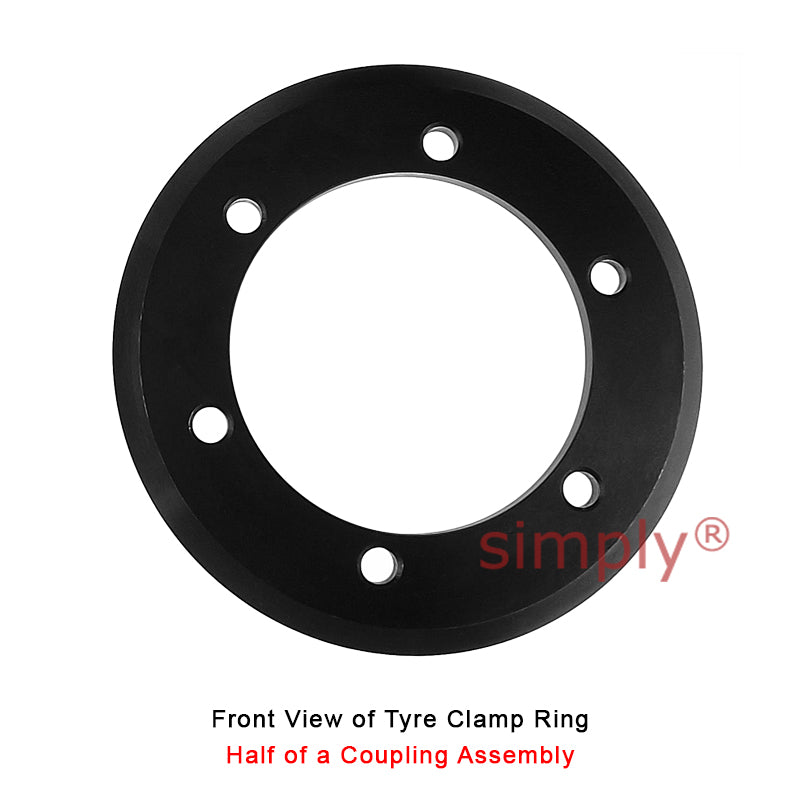

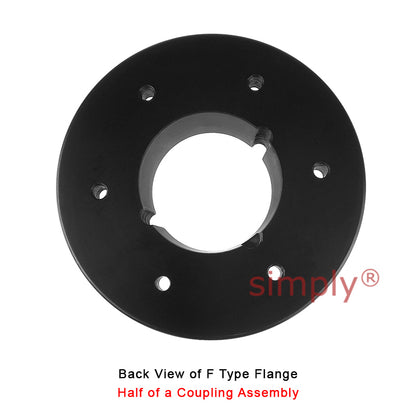

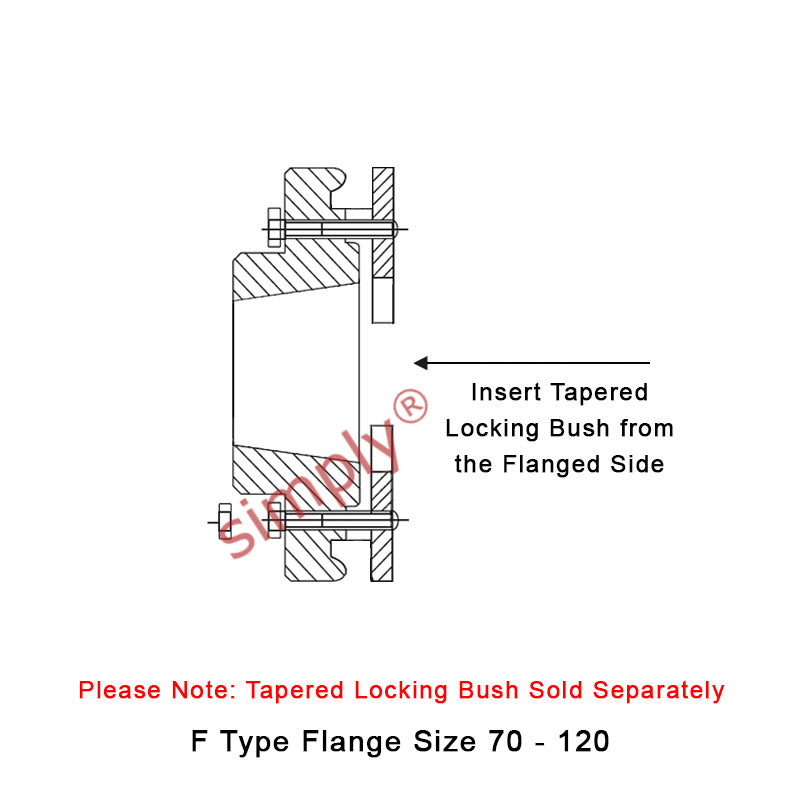

This coupling is the F type where the larger diameter of the taper bore is on the same side to the tyre clamping flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 3525mm or 100 inch
Technical
Technical
| F Type - Bush | 3525 <a href="advanced_search_result.php?keywords=taper+lock+bush+3525">[Click Here]</a> |
|---|---|
| F Type - Max Bore | 100mm |
| F Type - Max Bore | 4 inch |
| F Type - Flange A | 314mm |
| F Type - Flange B | 140mm |
| F Type - Flange C | 264mm |
| F Type - Flange E | 14.5mm |
| F Type - Flange G | 67mm |
| F Type - Flange F | 79.5mm |
| F Type - Flange D | 65mm |
| F Type - Flange Weight | 12.3kg |
| F Type - Inertia | 0.137kgm2 |
| F Type - Flange Face Spacing | 29mm |
| F Type - Gap Between Tyre Ends | 3mm |
| F Type - Nominal Torque | 1330 Nm |
| F Type - Max Speed | 2050 rev/min |
| F Type - Max Par Mis | 3.2mm |
| F Type - Max End Float | 4mm |

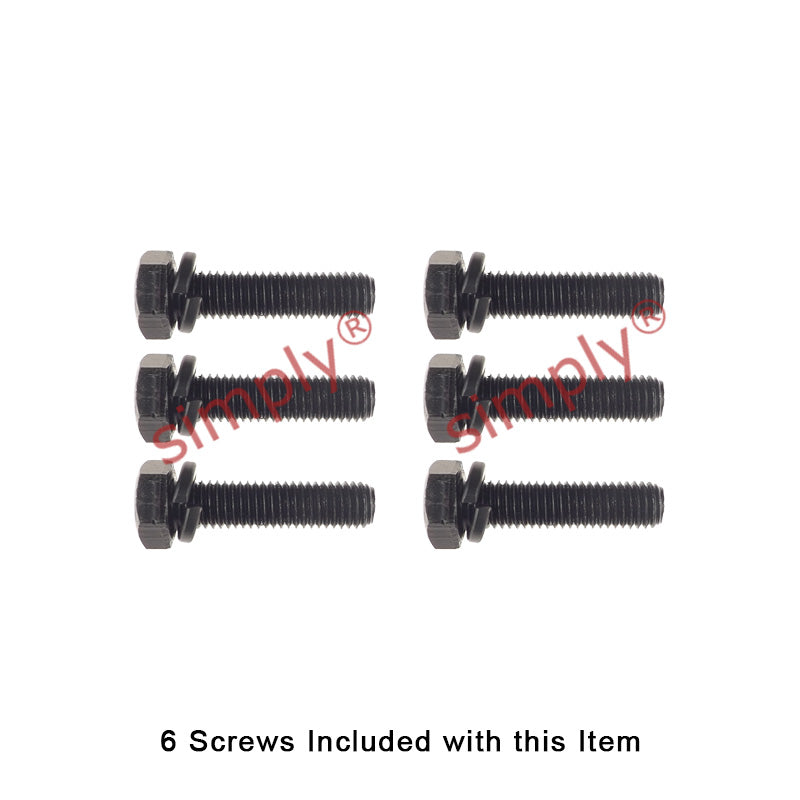

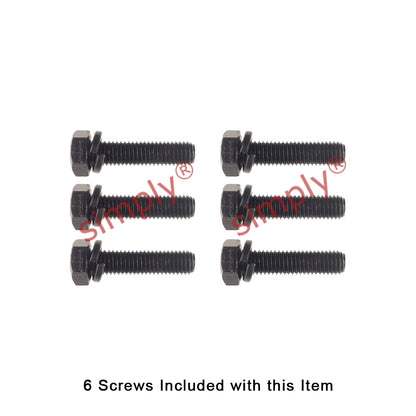

| F Type - Screw Size | M12 |
| F Type - Tigtening Torque | 50 Nm |
| Max Power at 100 rpm | 13.9 kW |
| Max Power at 200 rpm | 27.9 kW |
| Max Power at 300 rpm | 41.8 kW |
| Max Power at 400 rpm | 55.7 kW |
| Max Power at 500 rpm | 69.6 kW |
| Max Power at 600 rpm | 93.6 kW |
| Max Power at 700 rpm | 97.5 kW |
| Max Power at 720 rpm | 100 kW |
| Max Power at 800 rpm | 111 kW |
| Max Power at 900 rpm | 125 kW |
| Max Power at 960 rpm | 134 kW |
| Max Power at 1000 rpm | 139 kW |
| Max Power at 1200 rpm | 167 kW |
| Max Power at 1400 rpm | 195 kW |
| Max Power at 1440 rpm | 201 kW |
| Max Power at 1600 rpm | 223 kW |
| Max Power at 1800 rpm | 251 kW |
| Max Power at 2000 rpm | 279 kW |
| Maximum Speed | 2050 rev/min |
| Nominal Torque | 1330 Nm TKN |
| Maximum Torque | 3547 Nm TK MAX |
| Torsional Stiffness | 296 Nm/° |
| Max. Parallel Misalignment | 3.2mm |
| Maximum End Float | 4mm ± |
| Approximate Mass | 2.3kg |
| Alternating Torque | 591 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
