Major Branded F140B-MB Drive Coupling Pilot Bore Max Bore 130mm
Major Branded F140B-MB Drive Coupling Pilot Bore Max Bore 130mm
Regular price
€227,20
ex VAT
Regular price
Sale price
€227,20
ex VAT
Equivalent to: F140B
In stock
Price Break
10+
€172,66
19+
€162,96
29+
€161,02
39+
€159,08
49+
€157,14
74+
€155,20
99+
€145,50
199+
€143,56
249+
€141,62
499+
€139,68
999+
€135,80
Quantity
Couldn't load pickup availability
Description
Description

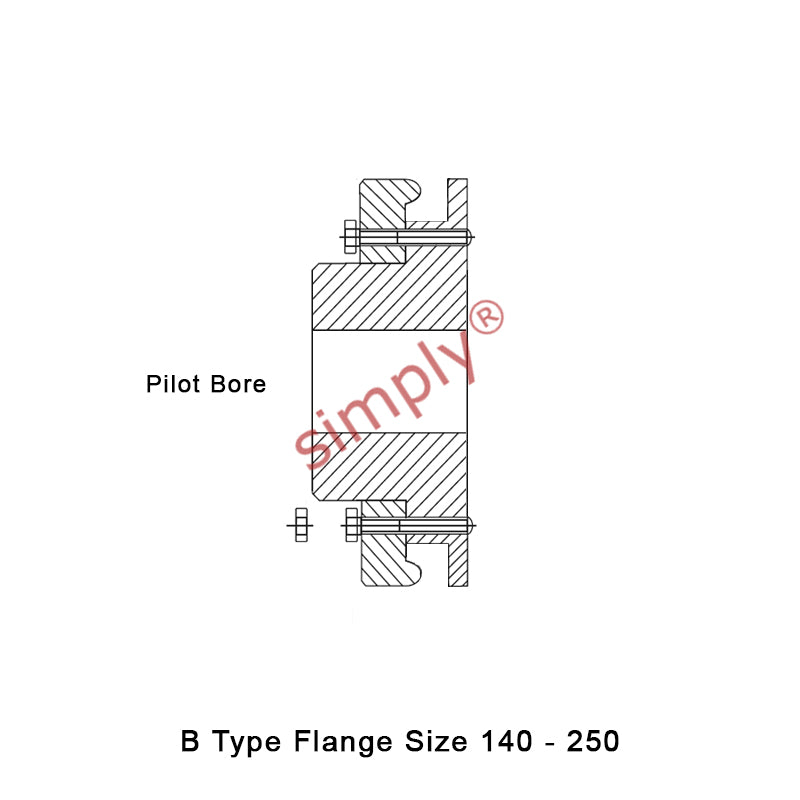

Branded Drive Coupling Pilot Bore: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.
This coupling is the B type is supplied with a nominally sized pilot bore flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 130mm
Technical
Technical

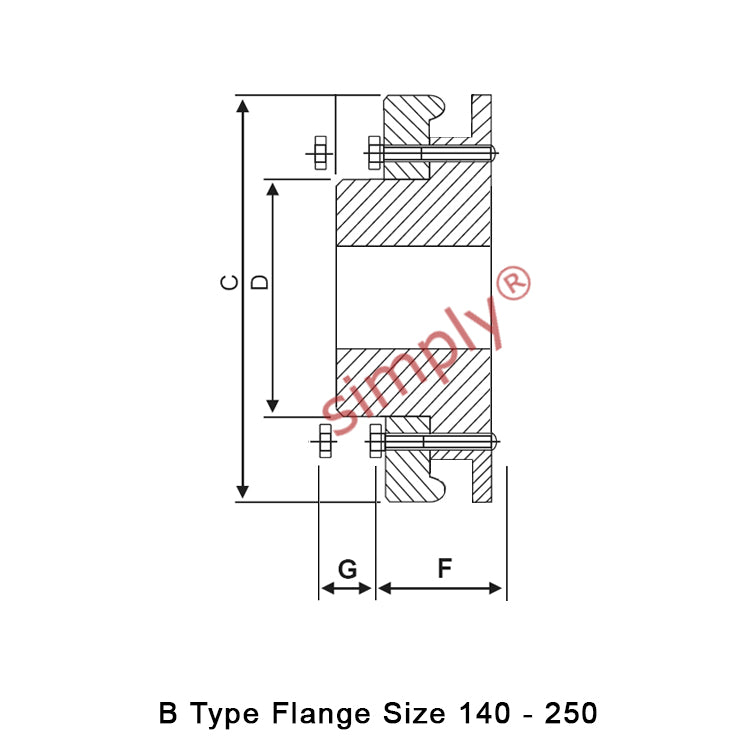

| B Type - Max Bore | 130mm |
|---|---|
| B Type - Flange A | 359mm |
| B Type - Flange B | 94mm |
| B Type - Flange C | 311mm |
| B Type - Flange E | 16mm |
| B Type - Flange F | 110.5mm |
| B Type - Flange D | 178mm |
| B Type - Clamping Screws | M20 |
| B Type - Flange Weight | 31.55kg |
| B Type - Inertia | 0.254kgm2 |
| B Type - Flange Face Spacing | 32mm |
| B Type - Gap Between Tyre Ends | 5mm |
| B Type - Nominal Torque | 2325 Nm |
| B Type - Max Speed | 1800 rev/min |
| B Type - Max Par Mis | 3.7mm |
| B Type - Max End Float | 4.6mm |
| B Type - Screw Size | M12 |
| B Type - Tigtening Torque | 55 Nm |
| Max Power at 100 rpm | 24.3 kW |
| Max Power at 200 rpm | 48.7 kW |
| Max Power at 300 rpm | 73 kW |
| Max Power at 400 rpm | 97.4 kW |
| Max Power at 500 rpm | 122 kW |
| Max Power at 600 rpm | 146 kW |
| Max Power at 700 rpm | 170 kW |
| Max Power at 720 rpm | 175 kW |
| Max Power at 800 rpm | 195 kW |
| Max Power at 900 rpm | 219 kW |
| Max Power at 960 rpm | 234 kW |
| Max Power at 1000 rpm | 243 kW |
| Max Power at 1200 rpm | 292 kW |
| Max Power at 1400 rpm | 341 kW |
| Max Power at 1440 rpm | 351 kW |
| Max Power at 1600 rpm | 390 kW |
| Max Power at 1800 rpm | 438 kW |
| Maximum Speed | 1800 rev/min |
| Nominal Torque | 2325 Nm TKN |
| Maximum Torque | 5642 Nm TK MAX |
| Torsional Stiffness | 470 Nm/° |
| Max. Parallel Misalignment | 3.7mm |
| Maximum End Float | 4.6mm ± |
| Approximate Mass | 2.6kg |
| Alternating Torque | 940 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
