• Major Branded F140H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 100mm / 4 inch
1 1

SKU: F140H-MB

Major Branded F140H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 100mm / 4 inch

Major Branded F140H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 100mm / 4 inch
€202,11 ex VAT
€202,11 ex VAT
Sale Sold out

Equivalent to: F140H-3525

In stock

Price Break
10+ €153,60
19+ €144,97
29+ €143,24
39+ €141,52
49+ €139,79
74+ €138,07
99+ €129,44
199+ €127,71
249+ €125,99
499+ €124,26
999+ €120,81

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Branded Drive Coupling Outer Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

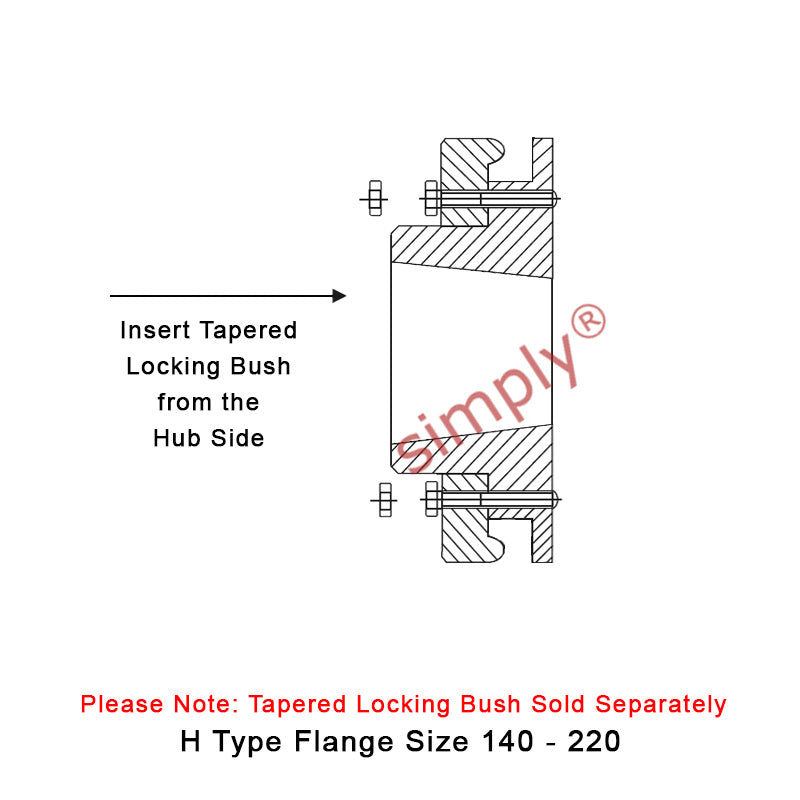

This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.

This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.

Brand / Quality:
Major Brand - High Quality
Max Bore:
100mm or 4 inch
Technical
H Type - Bush 3525 <a href="advanced_search_result.php?keywords=taper+lock+bush+3525">[Click Here]</a>
H Type - Max Bore 100mm
H Type - Max Bore 4 inch
H Type - Flange A 359mm
H Type - Flange B 178mm
H Type - Flange C 311mm
H Type - Flange E 16mm
H Type - Flange G 67mm
H Type - Flange F 81.5mm
H Type - Flange D 65mm
H Type - Flange Weight 22.3kg
H Type - Inertia 0.255kgm2
H Type - Flange Face Spacing 32mm
H Type - Gap Between Tyre Ends 5mm
H Type - Nominal Torque 2325 Nm
H Type - Max Speed 1800 rev/min
H Type - Max Par Mis 3.7mm
H Type - Max End Float 4.6mm
H Type - Screw Size M12
H Type - Tigtening Torque 55 Nm
Max Power at 100 rpm 24.3 kW
Max Power at 200 rpm 48.7 kW
Max Power at 300 rpm 73 kW
Max Power at 400 rpm 97.4 kW
Max Power at 500 rpm 122 kW
Max Power at 600 rpm 146 kW
Max Power at 700 rpm 170 kW
Max Power at 720 rpm 175 kW
Max Power at 800 rpm 195 kW
Max Power at 900 rpm 219 kW
Max Power at 960 rpm 234 kW
Max Power at 1000 rpm 243 kW
Max Power at 1200 rpm 292 kW
Max Power at 1400 rpm 341 kW
Max Power at 1440 rpm 351 kW
Max Power at 1600 rpm 390 kW
Max Power at 1800 rpm 438 kW
Maximum Speed 1800 rev/min
Nominal Torque 2325 Nm TKN
Maximum Torque 5642 Nm TK MAX
Torsional Stiffness 470 Nm/&deg;
Max. Parallel Misalignment 3.7mm
Maximum End Float 4.6mm &plusmn;
Approximate Mass 2.6kg
Alternating Torque 940 &plusmn; Nm @ 10Hz TKW
Resonance Factor V B 7
Damping Coefficient &Oslash; 0.9
