SKU: F40B-MB
Major Branded F40B-MB Drive Coupling Pilot Bore Max Bore 32mm
Major Branded F40B-MB Drive Coupling Pilot Bore Max Bore 32mm
Regular price
€19,78
ex VAT
Regular price
Sale price
€19,78
ex VAT
Equivalent to: F40B
In stock
Price Break
10+
€15,03
19+
€14,19
29+
€14,02
39+
€13,85
49+
€13,68
74+
€13,51
99+
€12,67
199+
€12,50
249+
€12,33
499+
€12,16
999+
€11,82
Quantity
Couldn't load pickup availability
Description
Description
Branded Drive Coupling Pilot Bore: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

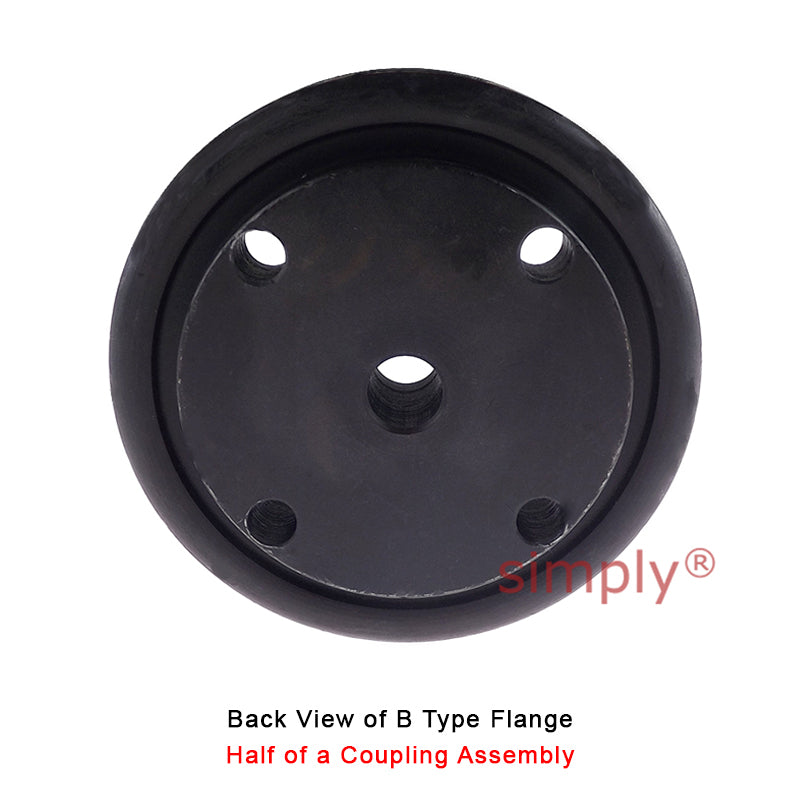

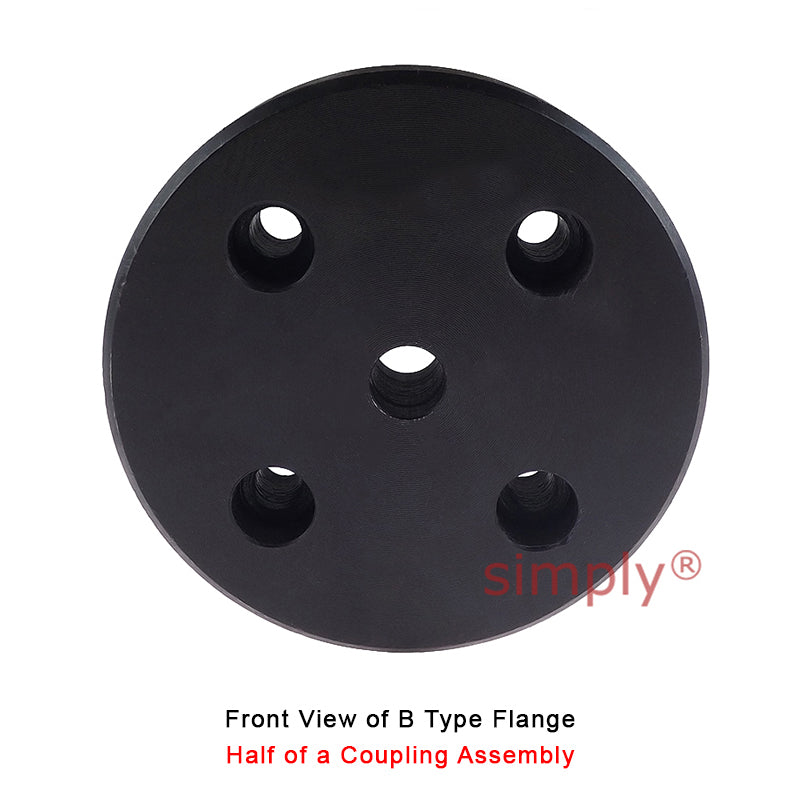

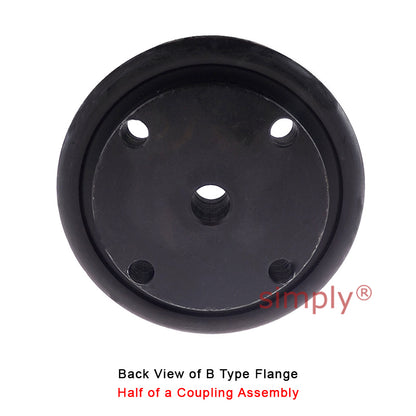

This coupling is the B type is supplied with a nominally sized pilot bore flange.
This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 32mm
Technical
Technical
| B Type - Max Bore | 32mm |
|---|---|
| B Type - Flange A | 104mm |
| B Type - Flange B | 22mm |
| B Type - Flange C | 82mm |
| B Type - Flange E | 11mm |
| B Type - Flange G | 29mm |
| B Type - Flange F | 33mm |

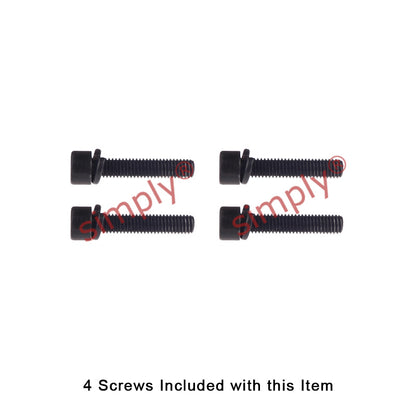

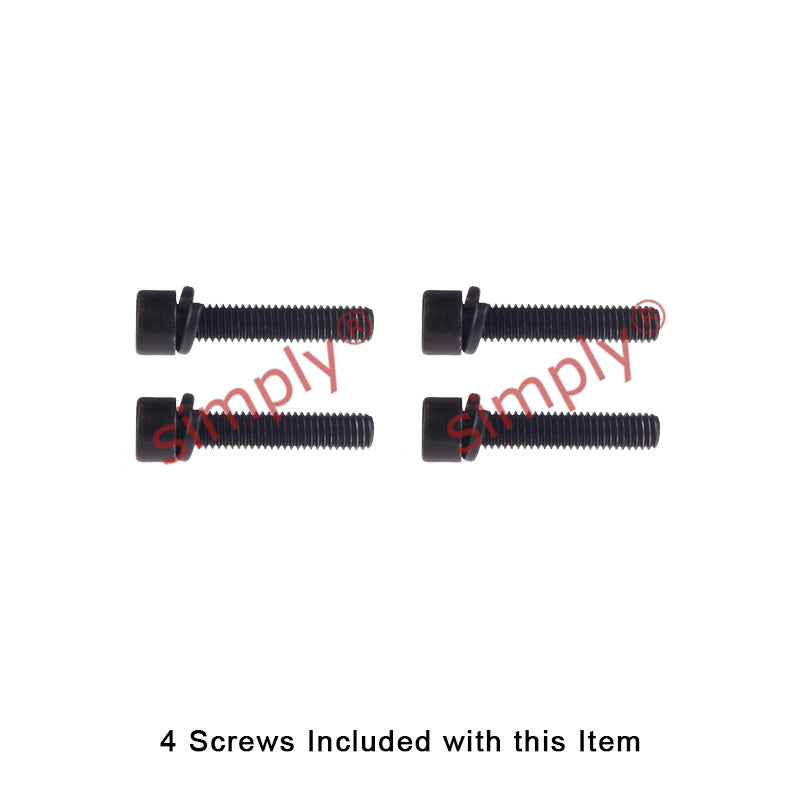

| B Type - Clamping Screws | M5 |
| B Type - Flange Weight | 1.61kg |
| B Type - Inertia | 0.00074kgm2 |
| B Type - Flange Face Spacing | 22mm |
| B Type - Gap Between Tyre Ends | 2mm |
| B Type - Nominal Torque | 24 Nm |
| B Type - Max Speed | 4500 rev/min |
| B Type - Max Par Mis | 1.1mm |
| B Type - Max End Float | 1.3mm |
| B Type - Screw Size | M6 |
| B Type - Tigtening Torque | 15 Nm |
| Max Power at 100 rpm | 0.25 kW |
| Max Power at 200 rpm | 0.5 kW |
| Max Power at 300 rpm | 0.75 kW |
| Max Power at 400 rpm | 1.01 kW |
| Max Power at 500 rpm | 1.26 kW |
| Max Power at 600 rpm | 1.51 kW |
| Max Power at 700 rpm | 1.76 kW |
| Max Power at 720 rpm | 1.81 kW |
| Max Power at 800 rpm | 2.01 kW |
| Max Power at 900 rpm | 2.26 kW |
| Max Power at 960 rpm | 2.41 kW |
| Max Power at 1000 rpm | 2.51 kW |
| Max Power at 1200 rpm | 3.02 kW |
| Max Power at 1400 rpm | 3.52 kW |
| Max Power at 1440 rpm | 3.62 kW |
| Max Power at 1600 rpm | 4.02 kW |
| Max Power at 1800 rpm | 4.52 kW |
| Max Power at 2000 rpm | 5.03 kW |
| Max Power at 2200 rpm | 5.53 kW |
| Max Power at 2400 rpm | 6.03 kW |
| Max Power at 2600 rpm | 6.53 kW |
| Maximum Speed | 4500 rev/min |
| Nominal Torque | 24 Nm TKN |
| Maximum Torque | 64 Nm TK MAX |
| Torsional Stiffness | 5 Nm/° |
| Max. Parallel Misalignment | 1.1mm |
| Maximum End Float | 1.3mm ± |
| Approximate Mass | 0.1kg |
| Alternating Torque | 11 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
