SKU: F80H-MB
Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
Major Branded F80H-MB Drive Coupling Outer Tapered Locking Bush Type Max Bush Bore 50mm / 2 inch
Regular price
€54,19
ex VAT
Regular price
Sale price
€54,19
ex VAT
Equivalent to: F80H-2012
In stock
Price Break
10+
€41,18
19+
€38,86
29+
€38,40
39+
€37,94
49+
€37,48
74+
€37,01
99+
€34,70
199+
€34,24
249+
€33,78
499+
€33,31
999+
€32,39
Quantity
Couldn't load pickup availability
Description
Description
Branded Drive Coupling Outer Tapered Locking Bush Type: This type of coupling can accommodate simultaneous maximum misalignment in all planes without imposing undue loads on adjacent bearings.

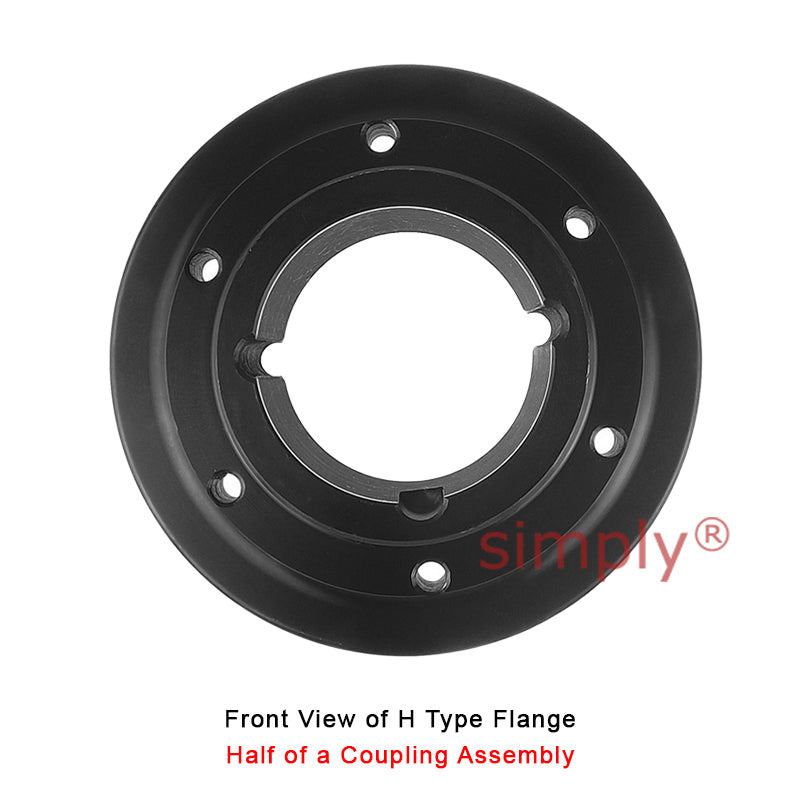

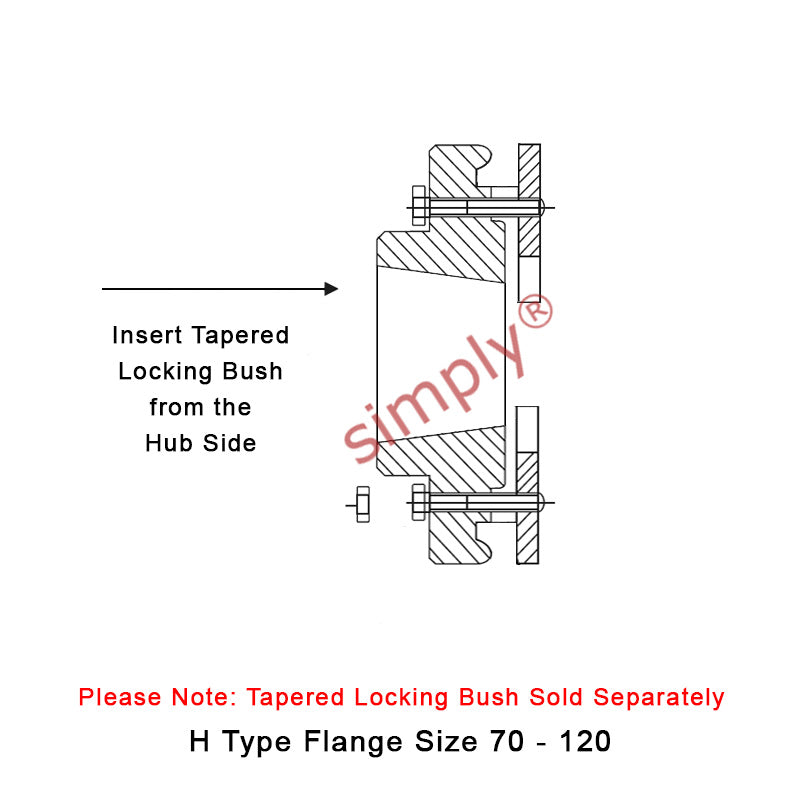

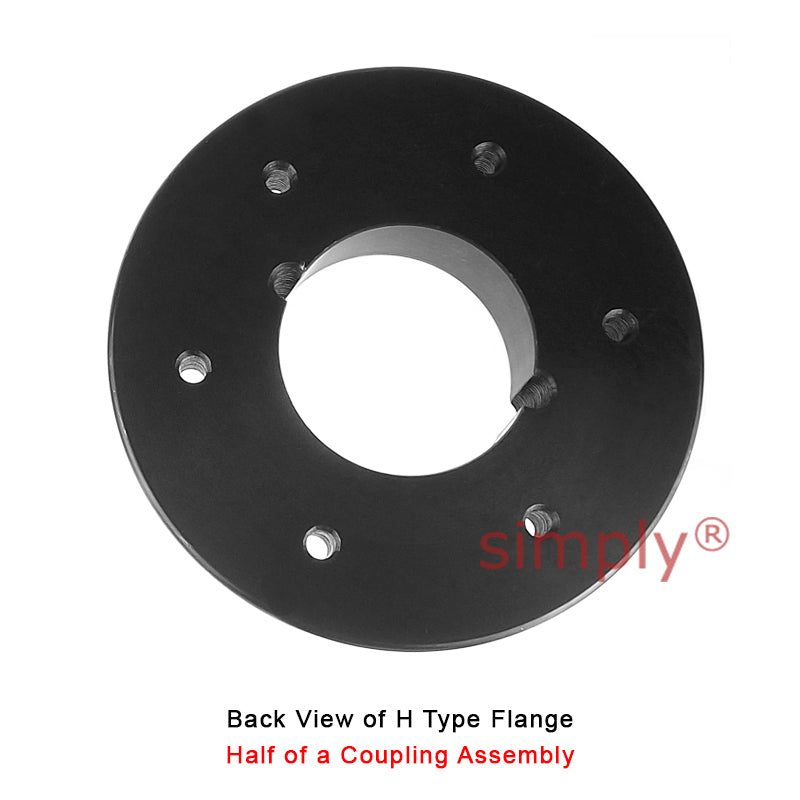

This coupling is the H type where the larger diameter of the taper bore is on the opposite side to the tyre clamping flange.

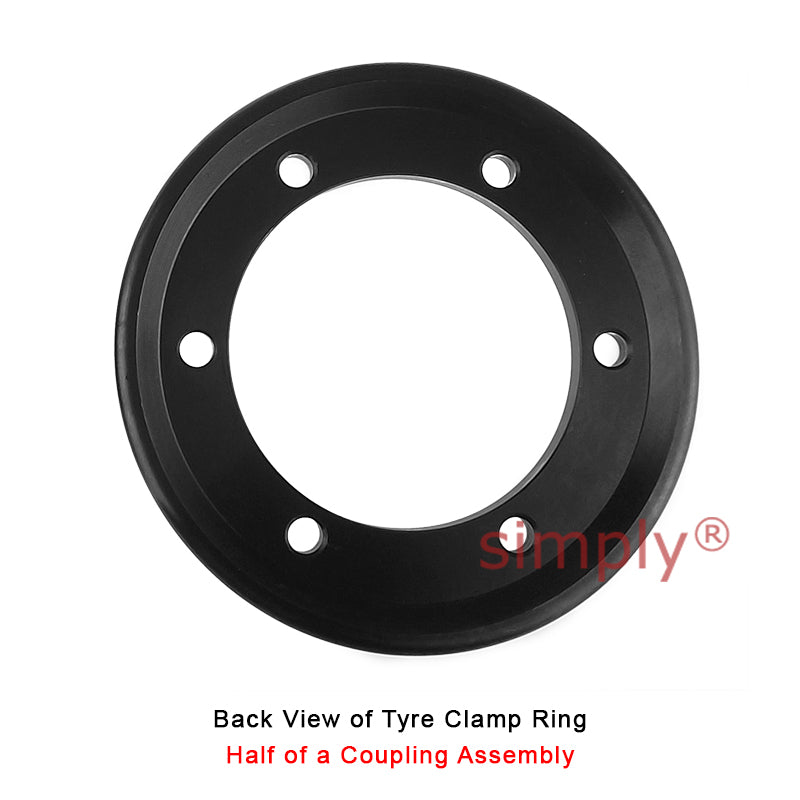

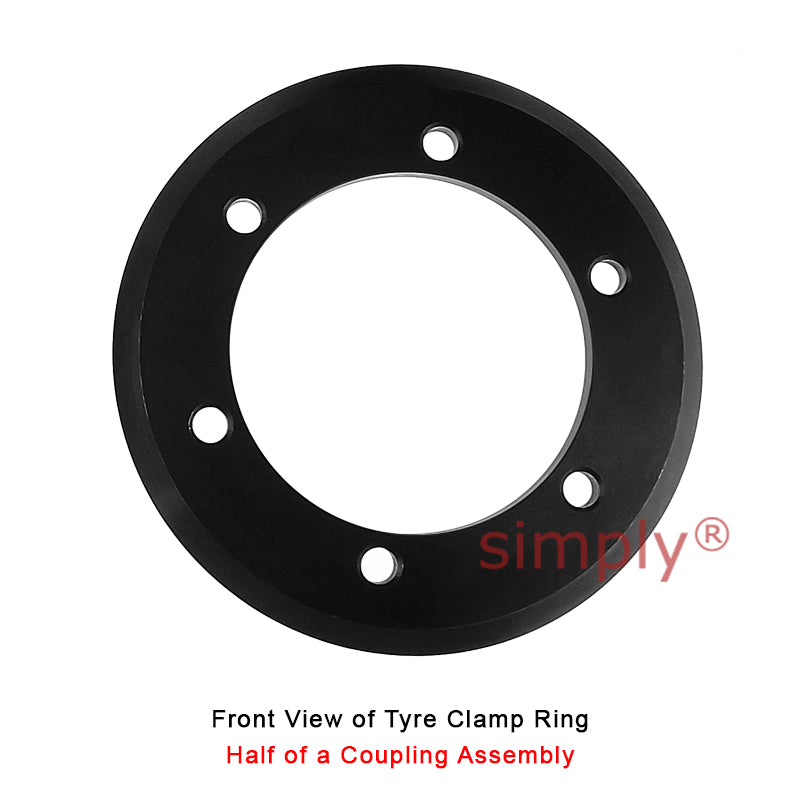

This is a half coupling. You require 2 x flanges and 1 x tyre to create a full coupling. Do you need a Fire Resistant Antistatic (F.R.A.S) rubber tyre. See links below.
- Brand / Quality:
- Major Brand - High Quality
- Max Bore:
- 50mm or 2 inch
Technical
Technical
| H Type - Bush | 2012 <a href="advanced_search_result.php?keywords=taper+lock+bush+2012">[Click Here]</a> |
|---|---|
| H Type - Max Bore | 50mm |
| H Type - Max Bore | 2 inch |
| H Type - Flange A | 211mm |
| H Type - Flange B | 98mm |
| H Type - Flange C | 167mm |
| H Type - Flange E | 12.5mm |
| H Type - Flange G | 42mm |
| H Type - Flange F | 45mm |
| H Type - Flange D | 32mm |
| H Type - Flange Weight | 3.65kg |
| H Type - Inertia | 0.017kgm2 |
| H Type - Flange Face Spacing | 25mm |
| H Type - Gap Between Tyre Ends | 3mm |
| H Type - Nominal Torque | 375 Nm |
| H Type - Max Speed | 3100 rev/min |
| H Type - Max Par Mis | 2.1mm |
| H Type - Max End Float | 2.6mm |

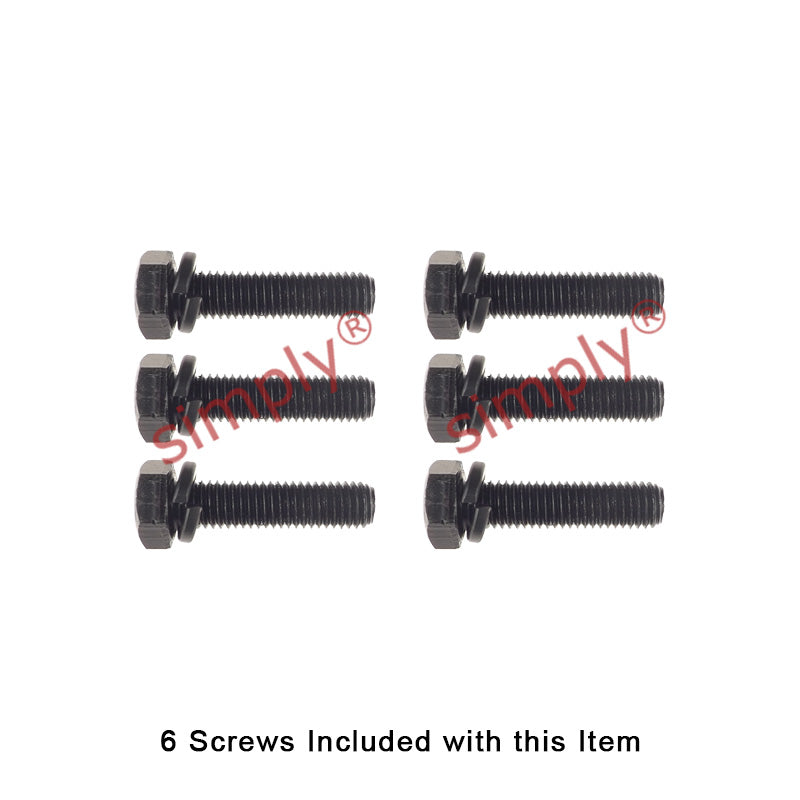

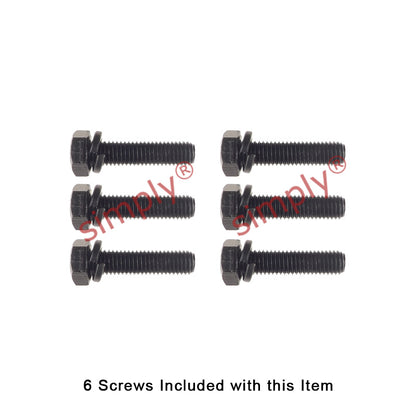

| H Type - Screw Size | M8 |
| H Type - Tigtening Torque | 24 Nm |
| Max Power at 100 rpm | 3.93 kW |
| Max Power at 200 rpm | 7.85 kW |
| Max Power at 300 rpm | 11.8 kW |
| Max Power at 400 rpm | 15.7 kW |
| Max Power at 500 rpm | 19.6 kW |
| Max Power at 600 rpm | 23.6 kW |
| Max Power at 700 rpm | 27.5 kW |
| Max Power at 720 rpm | 28.3 kW |
| Max Power at 800 rpm | 31.4 kW |
| Max Power at 900 rpm | 35.3 kW |
| Max Power at 960 rpm | 37.7 kW |
| Max Power at 1000 rpm | 39.3 kW |
| Max Power at 1200 rpm | 47.1 kW |
| Max Power at 1400 rpm | 55 kW |
| Max Power at 1440 rpm | 56.5 kW |
| Max Power at 1600 rpm | 62.8 kW |
| Max Power at 1800 rpm | 70.5 kW |
| Max Power at 2000 rpm | 78.5 kW |
| Max Power at 2200 rpm | 86.4 kW |
| Max Power at 2400 rpm | 94.2 kW |
| Max Power at 2600 rpm | 102 kW |
| Maximum Speed | 3100 rev/min |
| Nominal Torque | 250 Nm TKN |
| Maximum Torque | 487 Nm TK MAX |
| Torsional Stiffness | 41 Nm/° |
| Max. Parallel Misalignment | 1.9mm |
| Maximum End Float | 2.3mm ± |
| Approximate Mass | 1kg |
| Alternating Torque | 127 ± Nm @ 10Hz TKW |
| Resonance Factor V B | 7 |
| Damping Coefficient Ø | 0.9 |
