SKU: FB-04S-MB

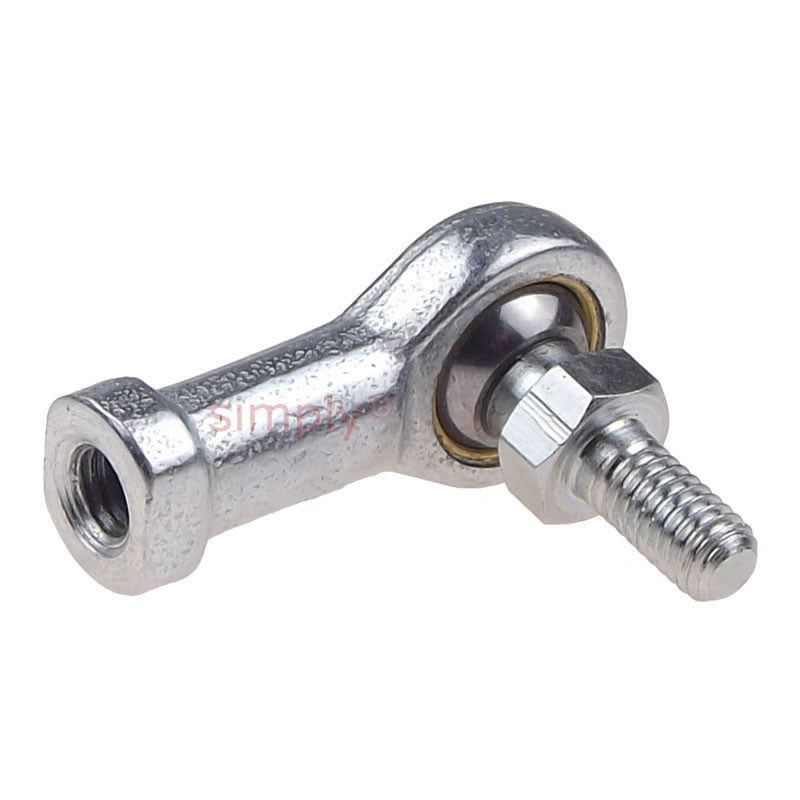

Branded FB-04S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 1/4 UNF Thread
- Regular price
- €15.97 ex VAT
- Sale price
- €15,97
- Regular price
-
In stock
Quantity Price Breaks
10
€14.21
19
€13.41
29
€13.26
39
€13.10
49
€12.94
74
€12.78
99
€11.98
199
€11.82
249
€11.66
499
€11.50
999
€11.18
SKU:
FB-04S-MB
Branded FB-04S Right Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 1/4 UNF Thread
- Regular price
- €15.97 ex VAT
- Sale price
- €15,97
- Regular price
-
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
Technical
| Stud size | = | 1/4 UNF |
| Thread | = | 1/4 UNF |
| A | = | 0.562 inch |
| B | = | 0.485 inch |
| C | = | 0.5 inch |
| K | = | 0.375 inch |
| Static load | = | 1930 N |
