SKU: FB-M06-MB

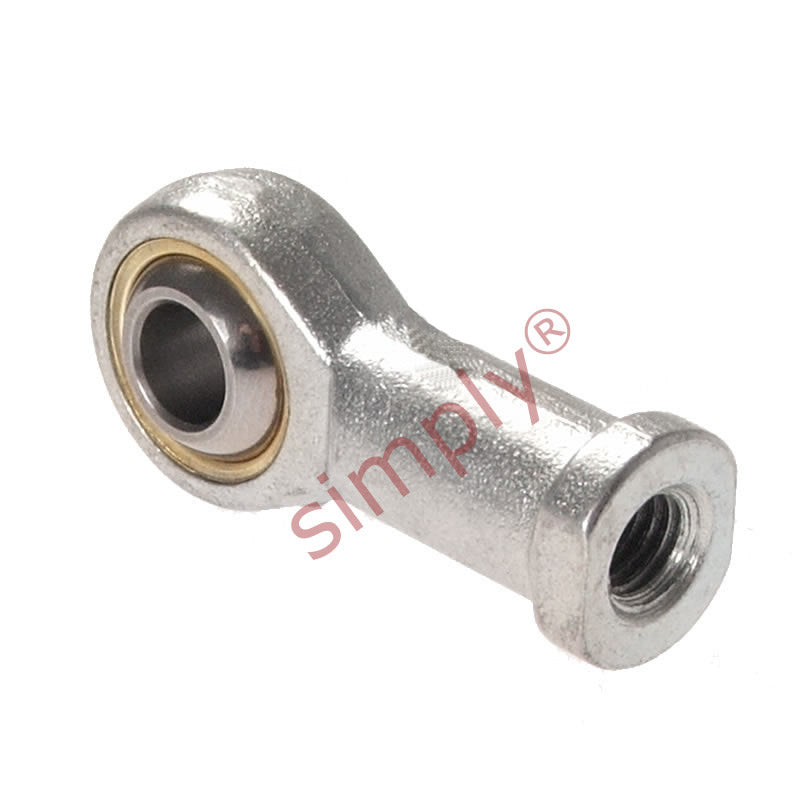

Branded FB-M06 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M6x1 Thread
Branded FB-M06 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M6x1 Thread
Regular price
€5,97
ex VAT
Regular price
Sale price
€5,97
ex VAT
Equivalent to: PHS6
In stock
Price Break
10+
€4,54
19+
€4,28
29+
€4,23
39+
€4,18
49+
€4,13
74+
€4,08
99+
€3,82
199+
€3,77
249+
€3,72
499+
€3,67
999+
€3,57
Quantity
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M6x1
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Bore size | 6mm |
|---|---|
| Thread | M6x1 |
| W | 9mm |
| H | 6.75mm |
| D | 18mm |
| L1 | 30mm |
| L2 | 14mm |
| O | 9.3mm |
| AF | 11mm |
| Static load | 6820 N |
