SKU: FB-M06S-DUN

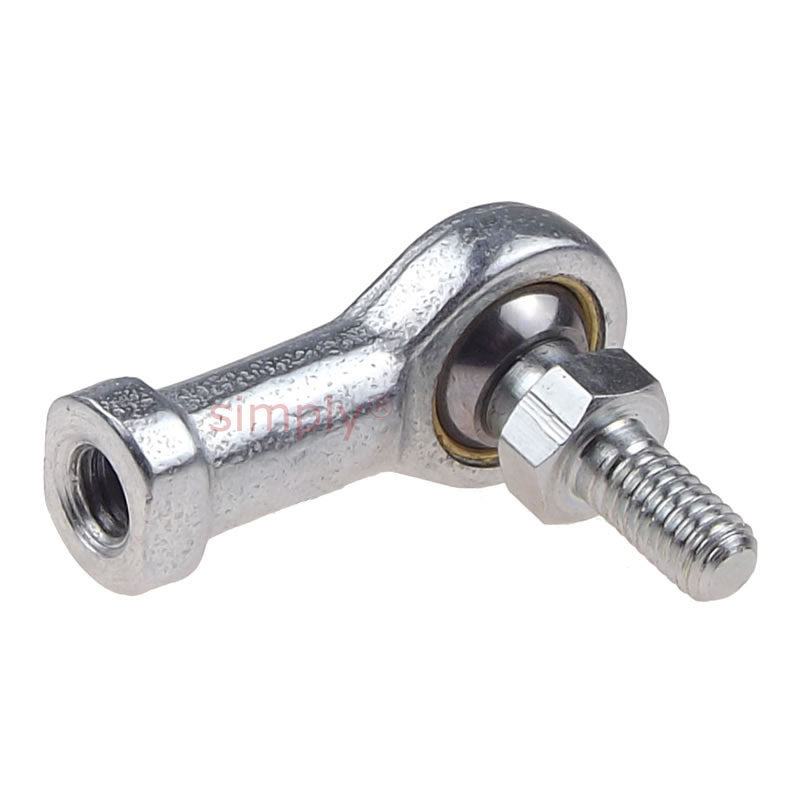

Dunlop FB-M06S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M6x1 Thread
Dunlop FB-M06S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M6x1 Thread
Regular price
€16,79
ex VAT
Regular price
Sale price
€16,79
ex VAT
Equivalent to: PHS6+STUD
In stock
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- M6x1
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M6 |
|---|---|
| Thread | M6x1 |
| A | 12mm |
| B | 12mm |
| C | 10mm |
| K | 10mm |
| Static load | 1930 N |
