SKU: FB-M12S-MB

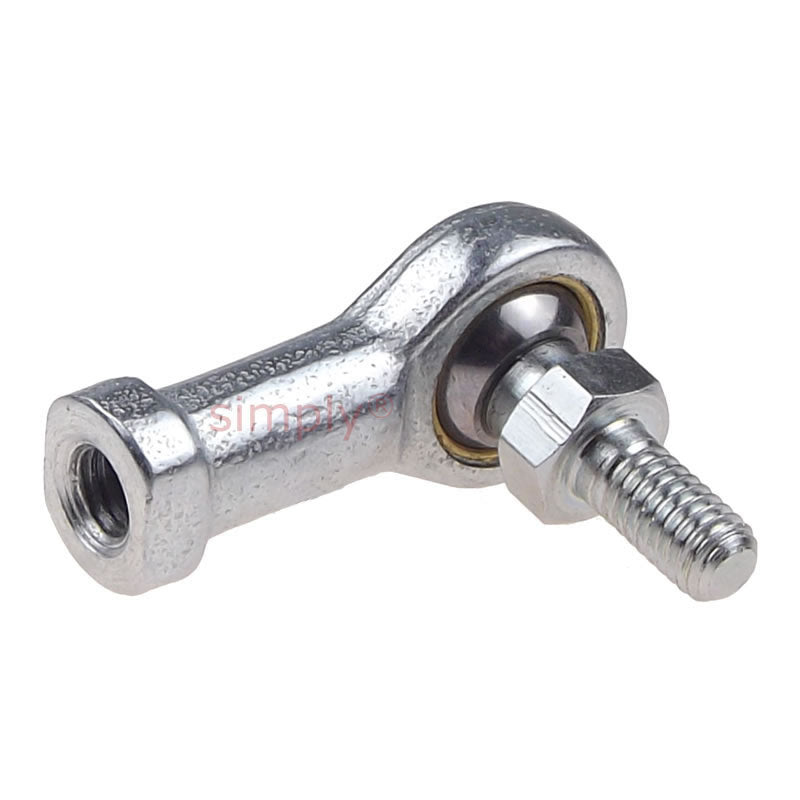

Branded FB-M12S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
Branded FB-M12S Right Hand Metric Steel / Bronze Lined Maintenance Required Studded Female Rod End M12x1.75 Thread
Regular price
€22,61
ex VAT
Regular price
Sale price
€22,61
ex VAT
Equivalent to: PHS12+STUD
In stock
Price Break
10+
€17,19
19+
€16,22
29+
€16,03
39+
€15,84
49+
€15,64
74+
€15,45
99+
€14,48
199+
€14,29
249+
€14,10
499+
€13,90
999+
€13,52
Quantity
Couldn't load pickup availability
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M12x1.75
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | M12 |
|---|---|
| Thread | M12x1.75 |
| A | 24mm |
| B | 24mm |
| C | 21mm |
| K | 19mm |
| Static load | 5720 N |
