SKU: FB-M16-MB

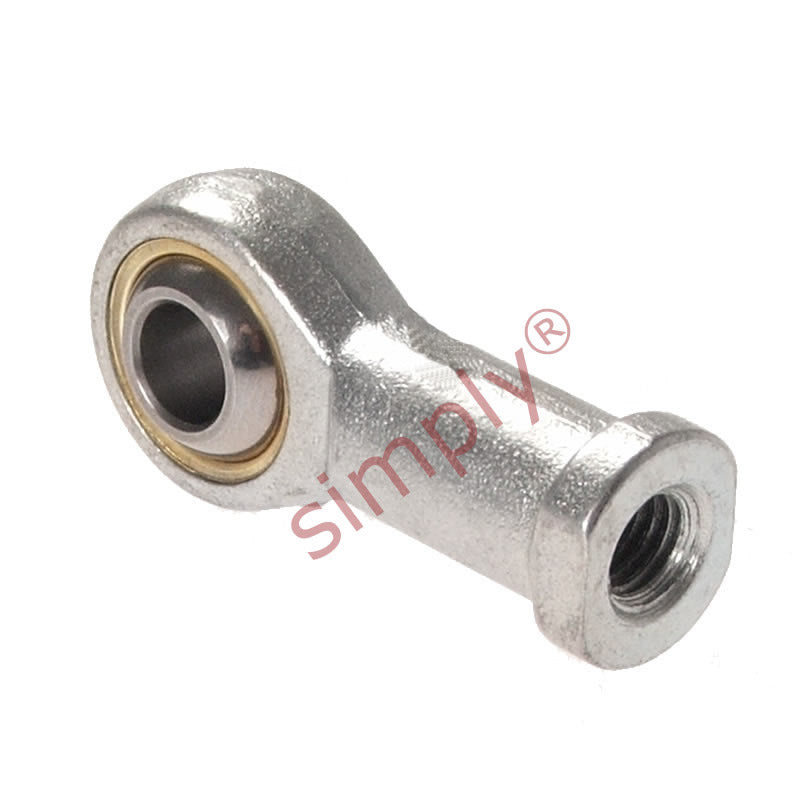

Branded FB-M16 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x2 Thread
Branded FB-M16 Right Hand Metric Steel / Bronze Lined Maintenance Required Plain Female Rod End M16x2 Thread
Regular price
€22,61
ex VAT
Regular price
Sale price
€22,61
ex VAT
Equivalent to: PHS16
In stock
Price Break
10+
€17,19
19+
€16,22
29+
€16,03
39+
€15,84
49+
€15,64
74+
€15,45
99+
€14,48
199+
€14,29
249+
€14,10
499+
€13,90
999+
€13,52
Quantity
Couldn't load pickup availability
Description
Description
|
FB Series Maintenance Required Female Rod Ends: The FB series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c Benefits: Low friction, extended wear life |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- M16x2
- Thread M / F:
- Female
- Thread Direction:
- Right Hand
- Material:
- Bronze Lined
Technical
Technical

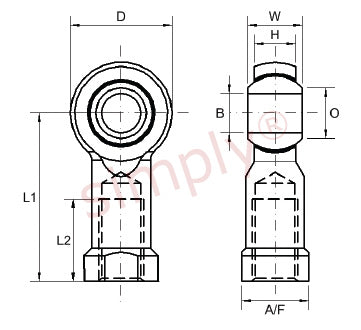

| Bore size | 16mm |
|---|---|
| Thread | M16x2 |
| W | 21mm |
| H | 15mm |
| D | 38mm |
| L1 | 64mm |
| L2 | 33mm |
| O | 19.3mm |
| AF | 24mm |
| Static load | 23700 N |
