SKU: FBL-07S-DUN

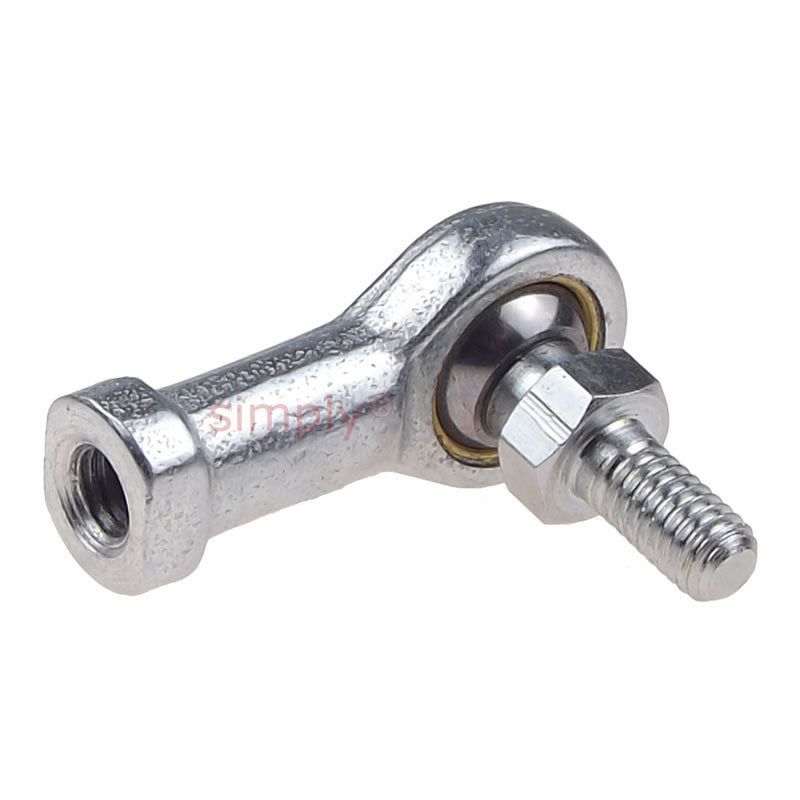

Dunlop FBL-07S Left Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 7/16 UNF Thread - Allow 7-10 Days
Dunlop FBL-07S Left Hand Imperial Steel / Bronze Lined Maintenance Required Studded Female Rod End 7/16 UNF Thread - Allow 7-10 Days
Regular price
€22,57
ex VAT
Regular price
Sale price
€22,57
ex VAT
In stock
Description
Description
|
FBS Studded Series Maintenance Required Female Rod Ends: These studded FBS series are a standard range of maintenance required general purpose female rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. Temperature range -34c to +149c. Stud, steel 230M07PB, zinc plated white and blue passivate (silver/clear). Benefits: Low friction, extended wear life |
- Brand / Quality:
- Dunlop - High Quality
- Thread Size:
- 7/16 UNF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Material:
- Bronze Lined
Technical
Technical
| Stud size | 7/16 |
|---|---|
| Thread | 7/16 UNF |
| A | 1.125 inch |
| B | 0.843 inch |
| C | 1 inch |
| K | 0.625 inch |
| Static load | 5720 N |
