SKU: FC15/16EC-RHP

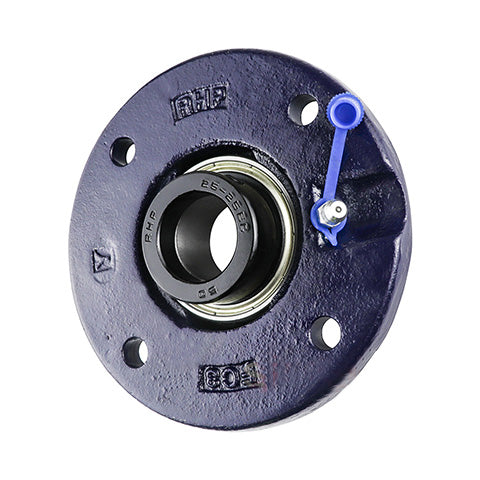

RHP FC15/16EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 15/16 inch Insert

RHP FC15/16EC-RHP Four Bolt Round Cast Iron Flanged Bearing Unit and 15/16 inch Insert

Out of stock


Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Bore 15/16 inch
L 4.528 inch
H 2.756 inch
J 3.543 inch
G 0.3125 inch
A 0.748 inch
A2 0.821 inch
A5 0.354 inch
B2 1.217 inch
s2 0.689 inch
d2 1.5 inch
Dynamic load 14000 N
Static load 7880 N
Rec max speed 6250 rpm
Weight 0.9 kg
Insert <a href="advanced_search_result.php?keywords=1225-15/16ECG+insonly">1225-15/16ECG Click Here</a>
Casting group 3
Grease nipple thread 1/4 UNF, 1/4 inch x 28 TPI
