SKU: FL16-PBC

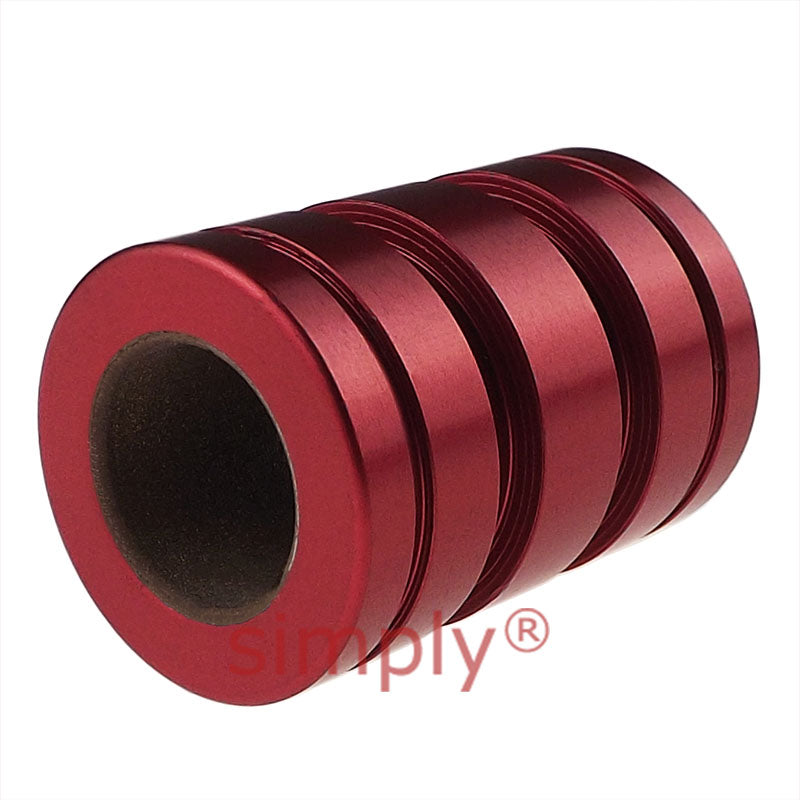

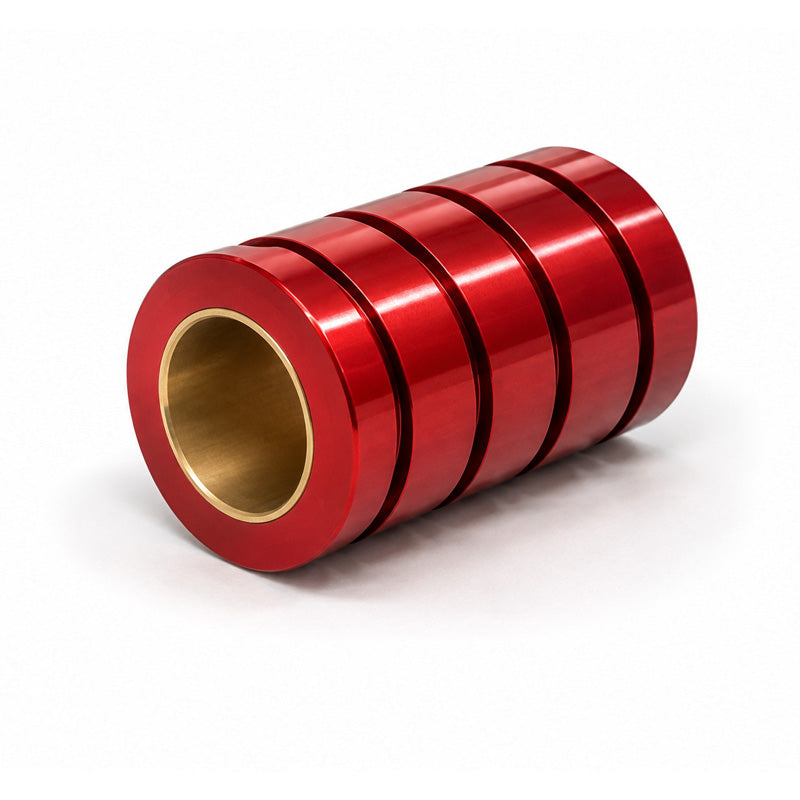

PBC FL 16 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
- Regular price
- €75.74 ex VAT
- Sale price
- €75,74
- Regular price
-
Not in stock
Quantity Price Breaks
3
€67.41
5
€63.62
9
€62.86
19
€62.11
49
€61.35
74
€60.59
99
€56.81
199
€56.05
249
€55.29
499
€54.53
999
€53.02
SKU:
FL16-PBC
PBC FL 16 Imperial Closed Precision Linear Plain Bearings with Frelon Gold 1x1.563x2.25 inch (Allow 2-3 Days)
- Regular price
- €75.74 ex VAT
- Sale price
- €75,74
- Regular price
-
Description
PBC FL Imperial Closed Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C

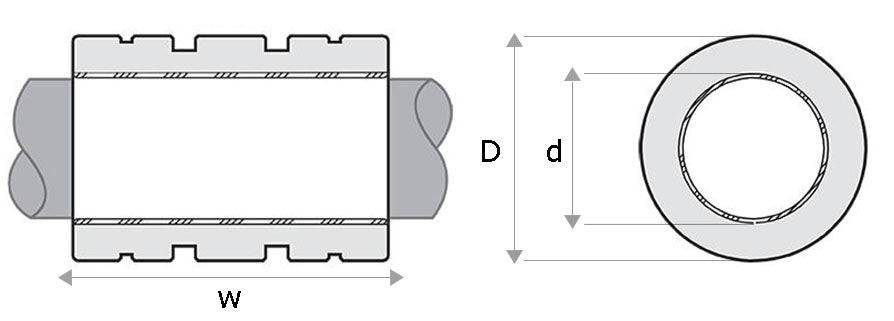

Technical
| Inside Diameter | = | 25.4mm = 1 inch |
| Outside Diameter | = | 39.69mm = 1.563 (1-9/16) inch |
| Width | = | 57.15mm = 2.25 (2-1/4) inch |
| Nominal Bore Size | = | 1 inch |
| Effective Surface Area (Square Inch) | = | 2.35kg |
| Max Static Load | = | 31.33kN |
| Weight | = | 0.103kg |
