SKU: FLCTE30-XL-INA

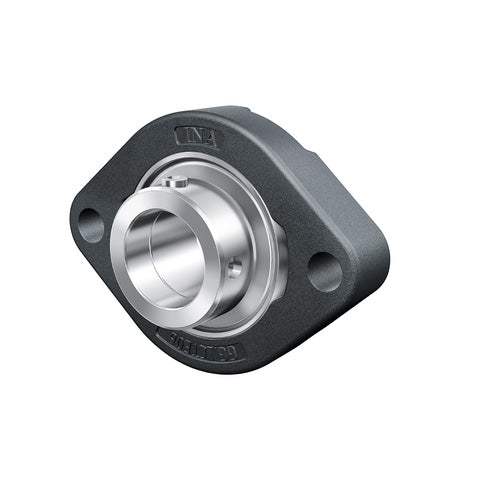

INA FLCTE30XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 30mm Bore

Name: INA FLCTE30XL Two Bolt Cast Iron Oval Housing with Eccentric Collar Insert 30mm Bore
Brand: INA
SKU: FLCTE30-XL-INA
Price: 47.51 EUR
Availability: InStock

€47,51 ex VAT

Sale Sold out

In stock

Price Break

4+ €36,11

9+ €34,08

19+ €33,67

29+ €33,27

39+ €32,86

49+ €32,46

59+ €30,43

69+ €30,02

79+ €29,62

89+ €29,21

99+ €28,40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

INA 2 Bolt Oval Housing Units: Supplied with a fully sealed bearing insert fitted in the housing with an eccentric locking collar. This oval cast iron housing has through holes for location purposes. Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft.
Note: This housing unit does not have a relubrication facility.
Benefits: Eccentric collar, tolerates misalignment of the shaft.

Brand / Quality:: INA - High Quality
Inside Diameter:: 30mm
Style:: FLCTE
Bolt Hole Centres:: 90.5mm

Technical

d	30mm
H	112.5mm
U	38.1mm
A1	20.5mm
A2	11.4mm
B1	35.8mm
d3 max	44mm
J	90.5mm
L	84mm
N	11.5mm
Mass	0.76 kg
Basic dynamic load rating Cr	20700 N
Basic static load rating Cor	11300 N
Designation of housing	LCTE06
Designation of bearing	RAE30-XL-NPP-B
