SKU: FLN06-PBC
PBC FLN 06 Imperial Open Precision Linear Plain Bearings with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
- Regular price
- €47.22 ex VAT
- Sale price
- €47,22
- Regular price
-
Not in stock
Quantity Price Breaks
3
€42.03
5
€39.66
9
€39.19
19
€38.72
49
€38.25
74
€37.78
99
€35.42
199
€34.94
249
€34.47
499
€34.00
999
€33.05
SKU:
FLN06-PBC
PBC FLN 06 Imperial Open Precision Linear Plain Bearings with Frelon Gold 0.375x0.625x0.875 inch (Allow 2-3 Days)
- Regular price
- €47.22 ex VAT
- Sale price
- €47,22
- Regular price
-
Description

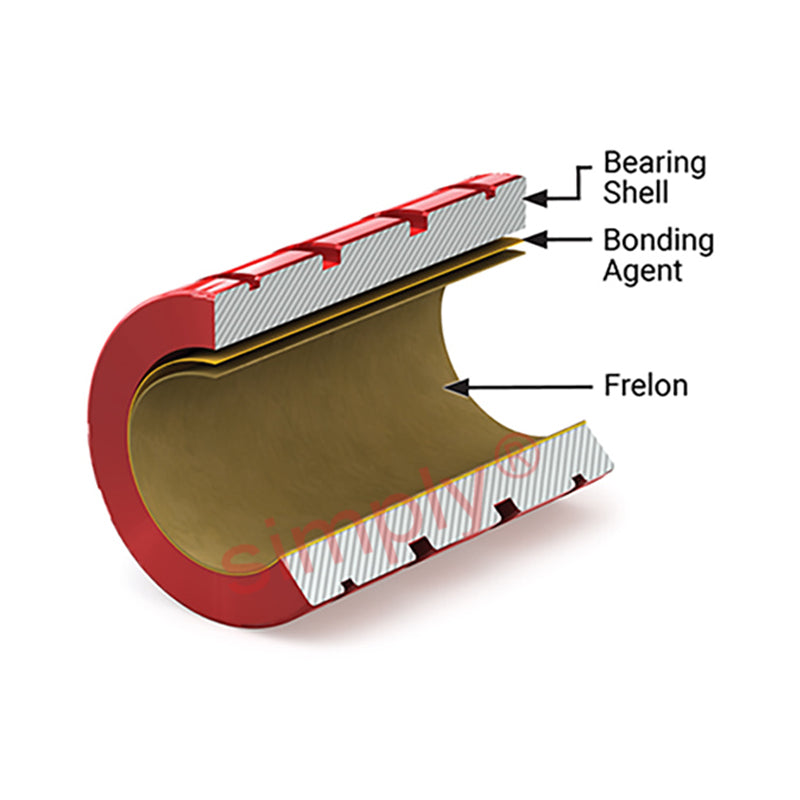

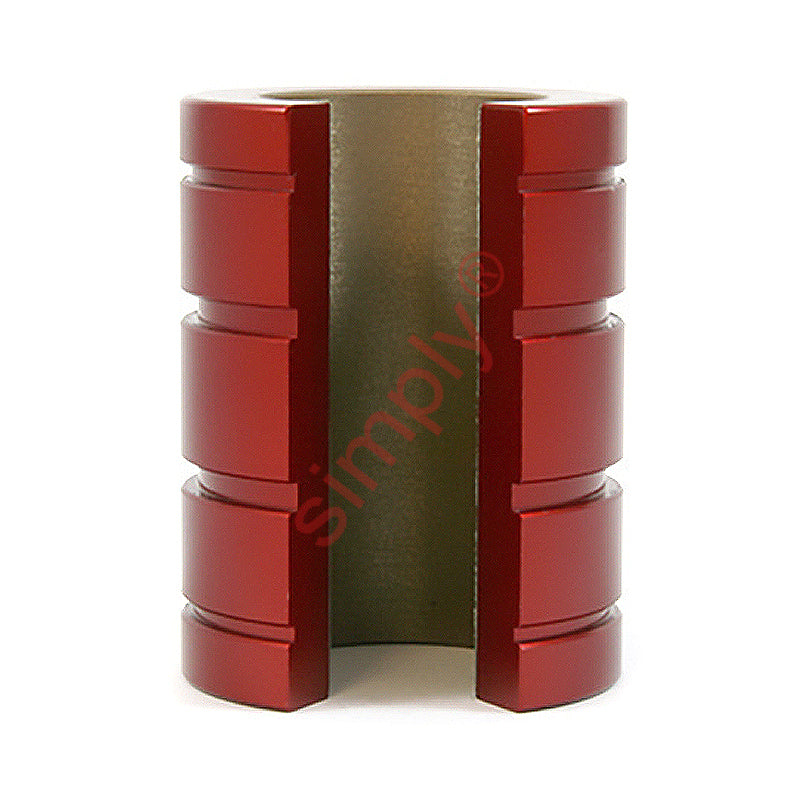

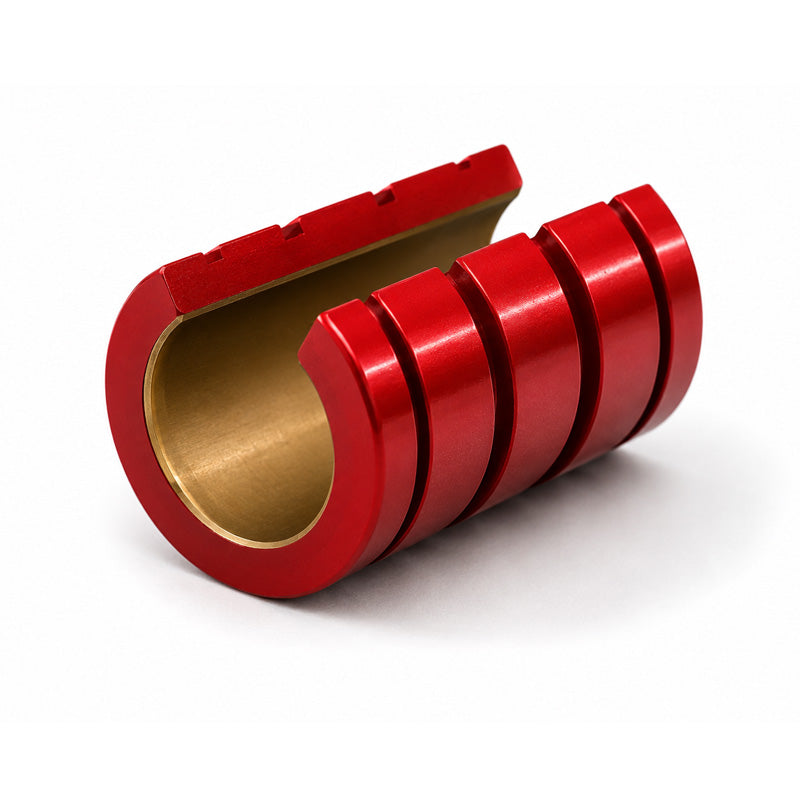

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical

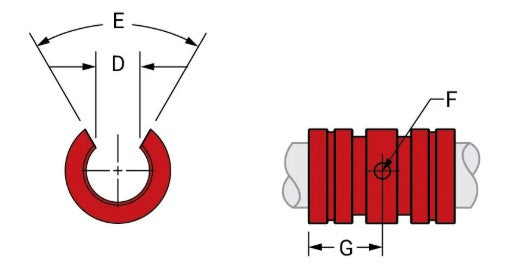

| Inside Diameter (A) | = | 9.53mm = 0.375 (3/8) inch |
| Outside Diameter (B) | = | 15.88mm = 0.625 (5/8) inch |
| Width (C) | = | 22.23mm = 0.875 (7/8) inch |
| Nominal Bore Size | = | 3/8 inch |
| Effective Surface Area (Square Inch) | = | 0.34 inch |
| Max Static Load | = | 4.53kN |
| Weight | = | 0.007kg |
