SKU: FLN08-PBC
PBC FLN 08 Imperial Open Precision Linear Plain Bearings with Frelon Gold 0.5x0.875x1.25 inch (Allow 2-3 Days)
- Regular price
- €54.15 ex VAT
- Sale price
- €54,15
- Regular price
-
Not in stock
Quantity Price Breaks
3
€48.19
5
€45.49
9
€44.94
19
€44.40
49
€43.86
74
€43.32
99
€40.61
199
€40.07
249
€39.53
499
€38.99
999
€37.91
SKU:
FLN08-PBC
PBC FLN 08 Imperial Open Precision Linear Plain Bearings with Frelon Gold 0.5x0.875x1.25 inch (Allow 2-3 Days)
- Regular price
- €54.15 ex VAT
- Sale price
- €54,15
- Regular price
-
Description

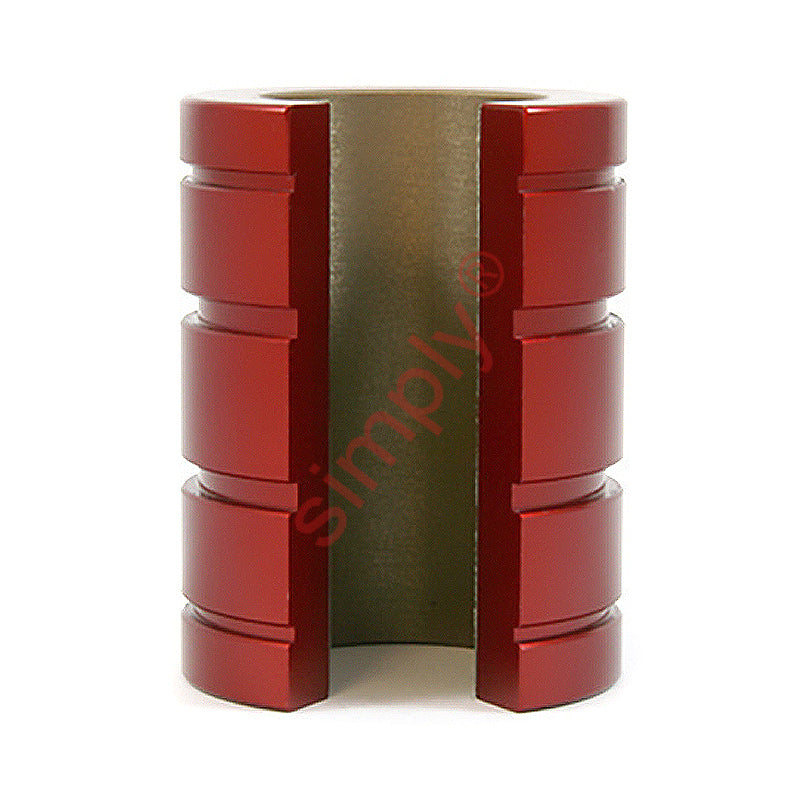

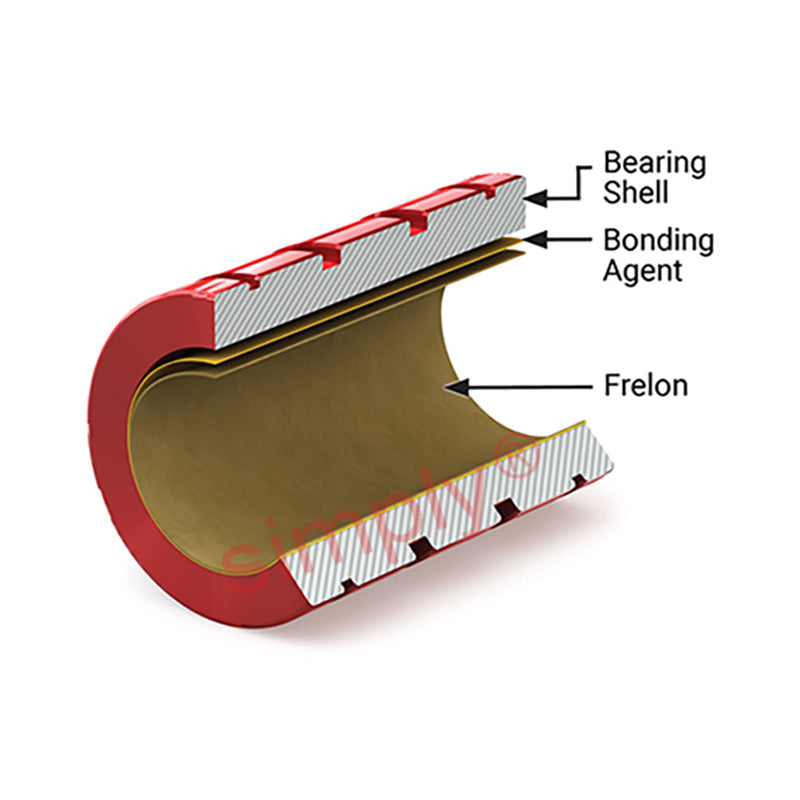

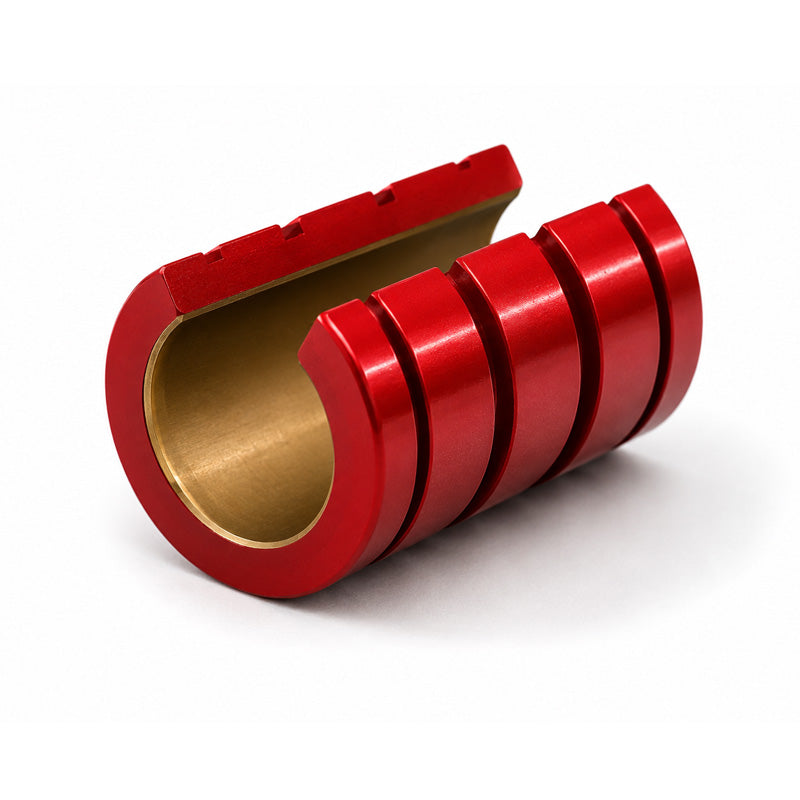

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C

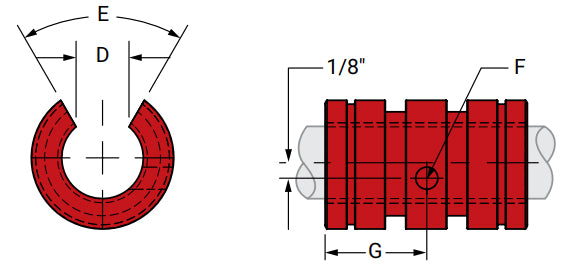

Technical
| Inside Diameter (A) | = | 12.7mm = 0.5 (1/2) inch |
| Outside Diameter (B) | = | 22.23mm = 0.875 (7/8) inch |
| Width (C) | = | 31.75mm = 1.25 (1-1/4) inch |
| Nominal Bore Size | = | 1/2 inch |
| Effective Surface Area (Square Inch) | = | 0.65 inch |
| Max Static Load | = | 8.67kN |
| Weight | = | 0.019kg |
