SKU: FLN20-PBC

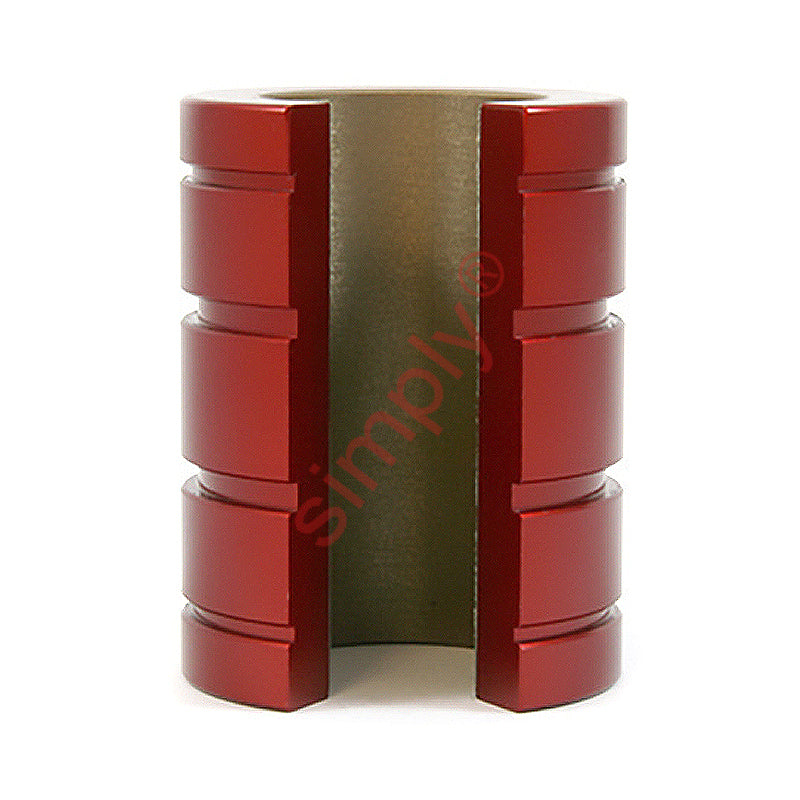

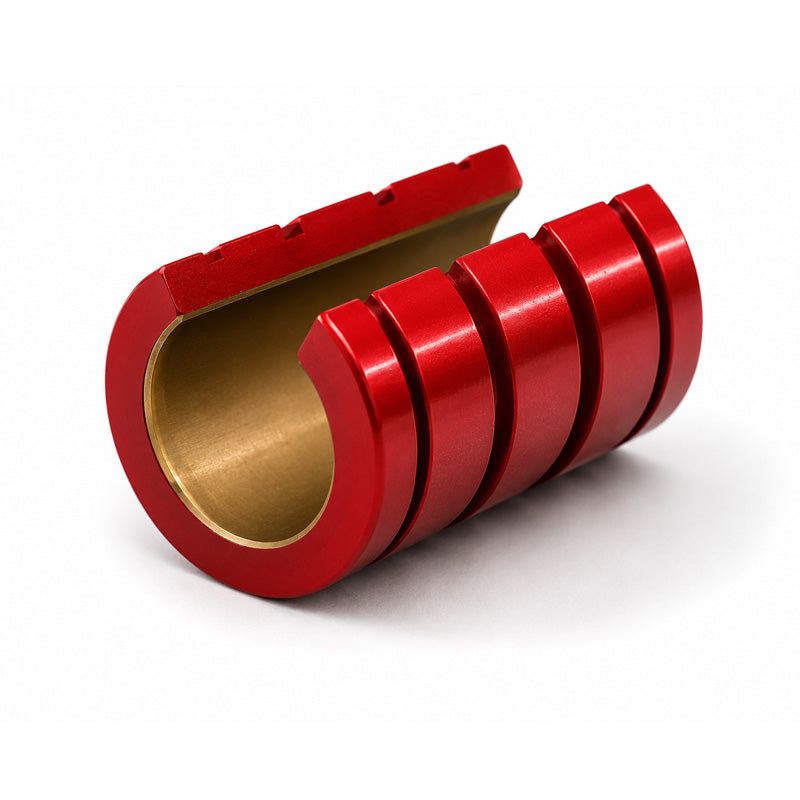

PBC FLN 20 Imperial Open Precision Linear Plain Bearings with Frelon Gold 1.25x2x2.625 inch (Allow 2-3 Days)
- Regular price
- €145.18 ex VAT
- Sale price
- €145,18
- Regular price
-
Not in stock
Quantity Price Breaks
3
€129.21
5
€121.95
9
€120.50
19
€119.05
49
€117.60
74
€116.14
99
€108.89
199
€107.43
249
€105.98
499
€104.53
999
€101.63
SKU:
FLN20-PBC
PBC FLN 20 Imperial Open Precision Linear Plain Bearings with Frelon Gold 1.25x2x2.625 inch (Allow 2-3 Days)
- Regular price
- €145.18 ex VAT
- Sale price
- €145,18
- Regular price
-
Description

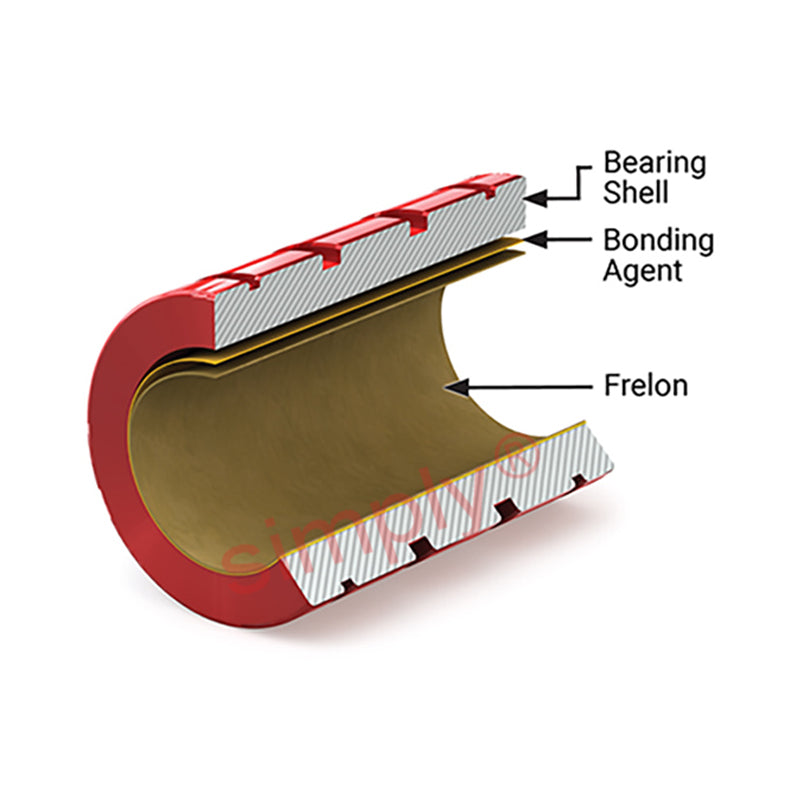

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C

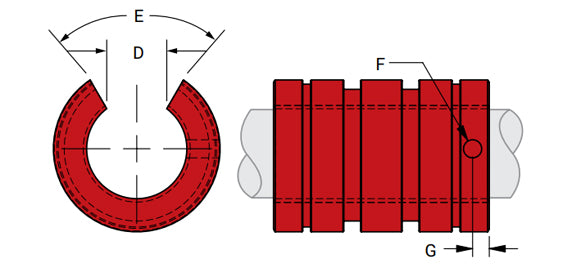

Technical
| Inside Diameter (A) | = | 31.75mm = 1.25 (1-1/4) inch |
| Outside Diameter (B) | = | 50.8mm = 2 inch |
| Width (C) | = | 66.68mm = 2.625 (2-5/8) inch |
| Nominal Bore Size | = | 1-1/4 inch |
| Effective Surface Area (Square Inch) | = | 3.43 inch |
| Max Static Load | = | 48.13kN |
| Weight | = | 0.208kg |
