SKU: FLN24-PBC

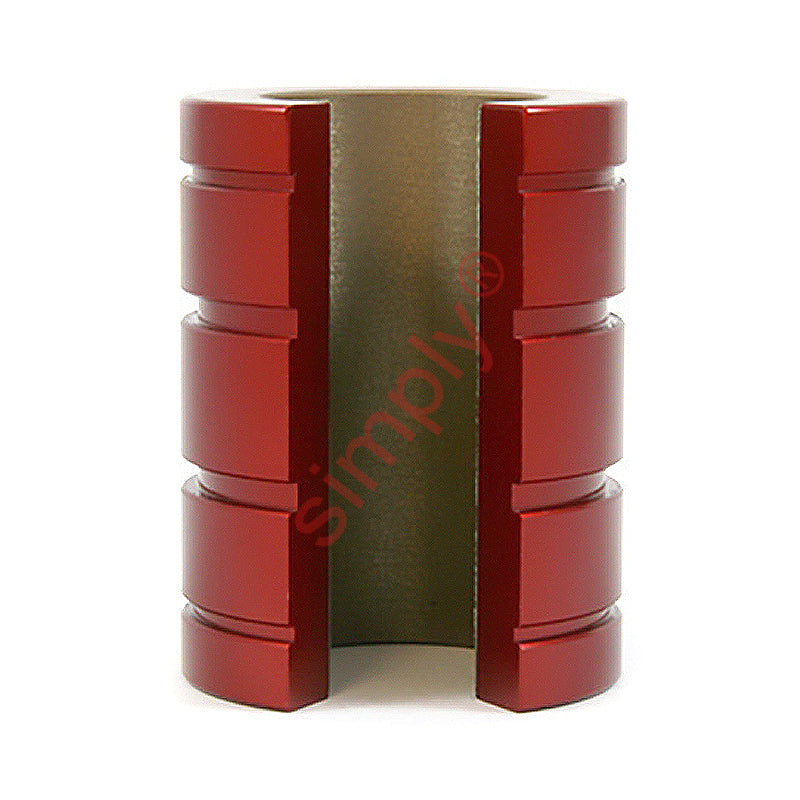

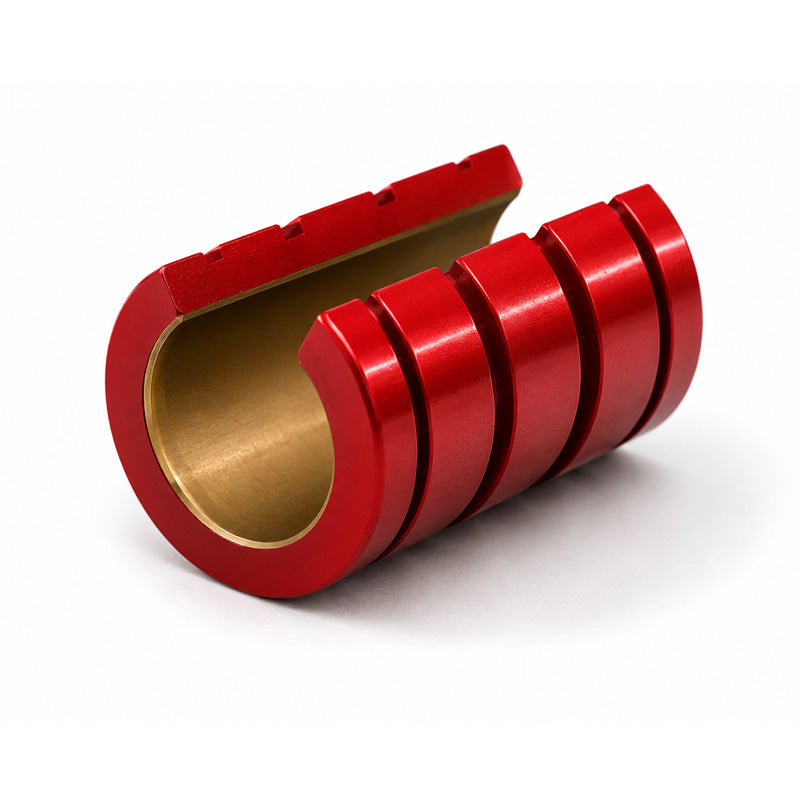

PBC FLN 24 Imperial Open Precision Linear Plain Bearings with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
- Regular price
- €164.80 ex VAT
- Sale price
- €164,80
- Regular price
-
Not in stock
Quantity Price Breaks
3
€146.67
5
€138.43
9
€136.78
19
€135.14
49
€133.49
74
€131.84
99
€123.60
199
€121.95
249
€120.30
499
€118.66
999
€115.36
SKU:
FLN24-PBC
PBC FLN 24 Imperial Open Precision Linear Plain Bearings with Frelon Gold 1.5x2.375x3 inch (Allow 2-3 Days)
- Regular price
- €164.80 ex VAT
- Sale price
- €164,80
- Regular price
-
Description

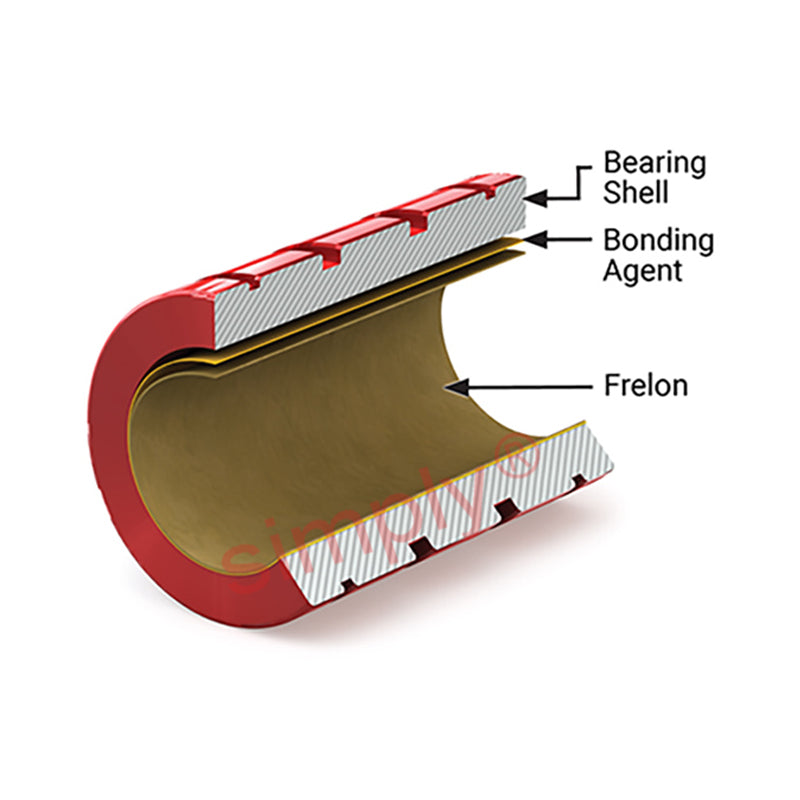

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C
Technical
| Inside Diameter (A) | = | 38.1mm = 1.5 (1-1/2) inch |
| Outside Diameter (B) | = | 60.33mm = 2.375 (2-3/8) inch |
| Width (C) | = | 76.2mm = 3 inch |
| Nominal Bore Size | = | 1-1/2 inch |
| Effective Surface Area (Square Inch) | = | 4.7 inch |
| Max Static Load | = | 62.67kN |
| Weight | = | 0.329kg |
