PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)

SKU: FLN64-PBC

PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)

€1.162.77 ex VAT
€1.162,77
ex VAT
Not in stock

Quantity Price Breaks

3 €1.034.87
5 €976.73
9 €965.10
19 €953.47
49 €941.84
74 €930.22
99 €872.08
199 €860.45
249 €848.82
499 €837.19
999 €813.94
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)
SKU: FLN64-PBC

PBC FLN 64 Imperial Open Precision Linear Plain Bearings with Frelon Gold 4x6x8 inch (Allow 2-3 Days)

€1.162.77 ex VAT
€1.162,77
ex VAT

Description

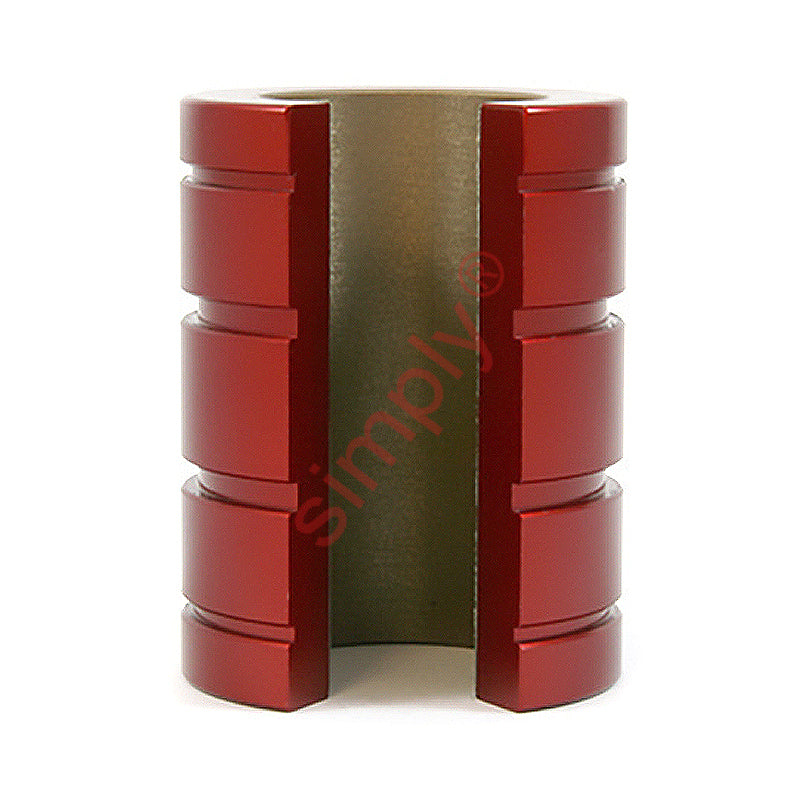

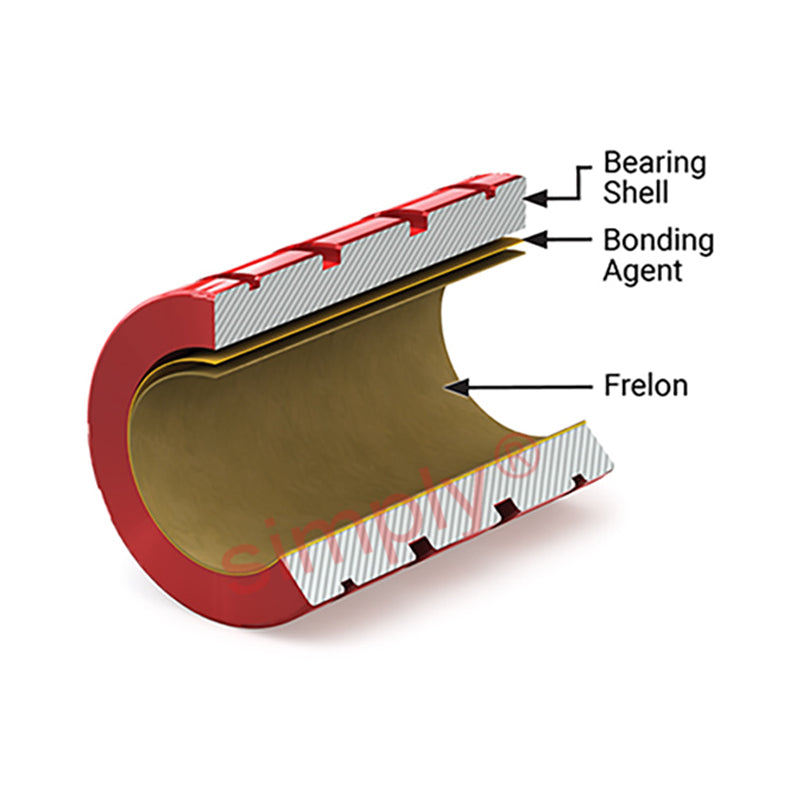

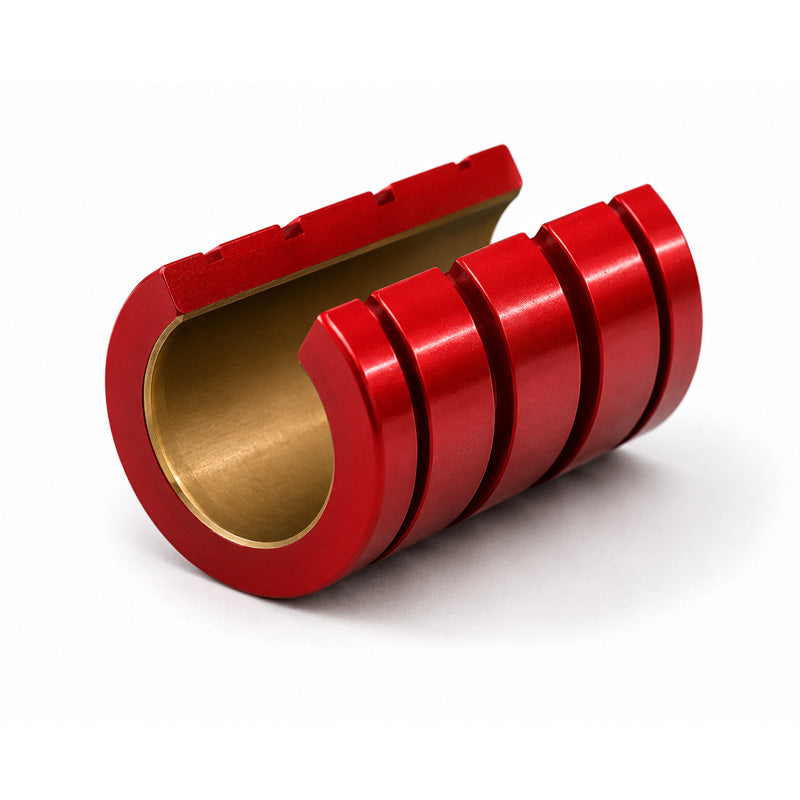

PBC FLN Imperial Open Linear Plain Bearings with Frelon Gold Liner: These compact precision linear bearings are designed to be interchangeable with compact ball bearings and bronze bushings. The Frelon GOLD® has a dark gold high-performance material compatible with RC60 hardened steel shafting, RC70 ceramic coated, and 440 stainless steel shafting.
Benefits: Self-lubricating for oil-free operation, Static Load Capacities up to 446 kN, Wide temperature range from -240 to 204 degree C

Technical

Inside Diameter (A) = 101.6mm = 4 inch
Outside Diameter (B) = 152.4mm = 6 inch
Width (C) = 203.2mm = 8 inch
Nominal Bore Size = 4 inch
Effective Surface Area (Square Inch) = 33.5 inch
Max Static Load = 446.67kN
Weight = 5.368kg
