SKU: FPL-10-8F-MB

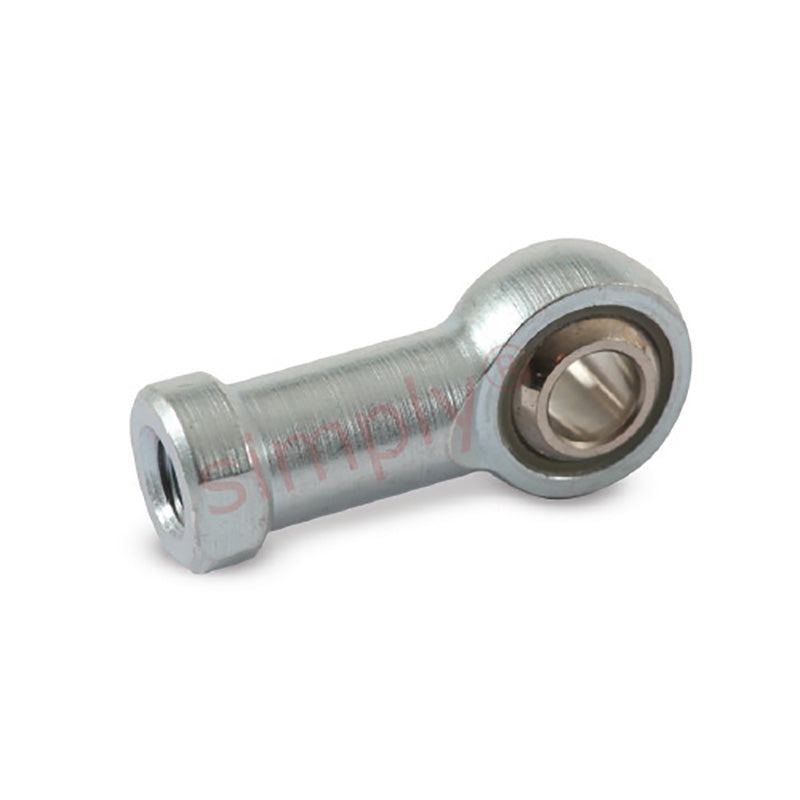

Branded FPL-10-8F Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Female Rod End 5/8 BSF Thread - Allow 7-10 Days
Branded FPL-10-8F Left Hand Imperial Steel / Nylon Lined Maintenance Free Plain Female Rod End 5/8 BSF Thread - Allow 7-10 Days
Regular price
€55,63
ex VAT
Regular price
Sale price
€55,63
ex VAT
In stock
Price Break
10+
€42,28
19+
€39,90
29+
€39,43
39+
€38,95
49+
€38,48
74+
€38,00
99+
€35,63
199+
€35,15
249+
€34,68
499+
€34,20
999+
€33,25
Quantity
Couldn't load pickup availability
Description
Description
|
FP Series Maintenance Free Female Rod Ends: The FP series are a standard range of self-lubricating general purpose female rod ends, suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range -30c to +170c Benefits: Low friction, Self-lubricating, good wear resistance, excellent moisture resistance, no maintenance |
- Brand / Quality:
- Major Brand - High Quality
- Thread Size:
- 5/8 BSF
- Thread M / F:
- Female
- Thread Direction:
- Left Hand
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Material:
- Nylon Lined
Technical
Technical
| Bore size | 1/2 inch |
|---|---|
| Thread | 5/8 BSF |
| W | 0.75 inch |
| H | 0.562 inch |
| D | 1.5 inch |
| L1 | 2.5 inch |
| L2 | 1.5 inch |
| O | 0.811 inch |
| AF | 0.875 inch |
| Static load | 32000 N |
