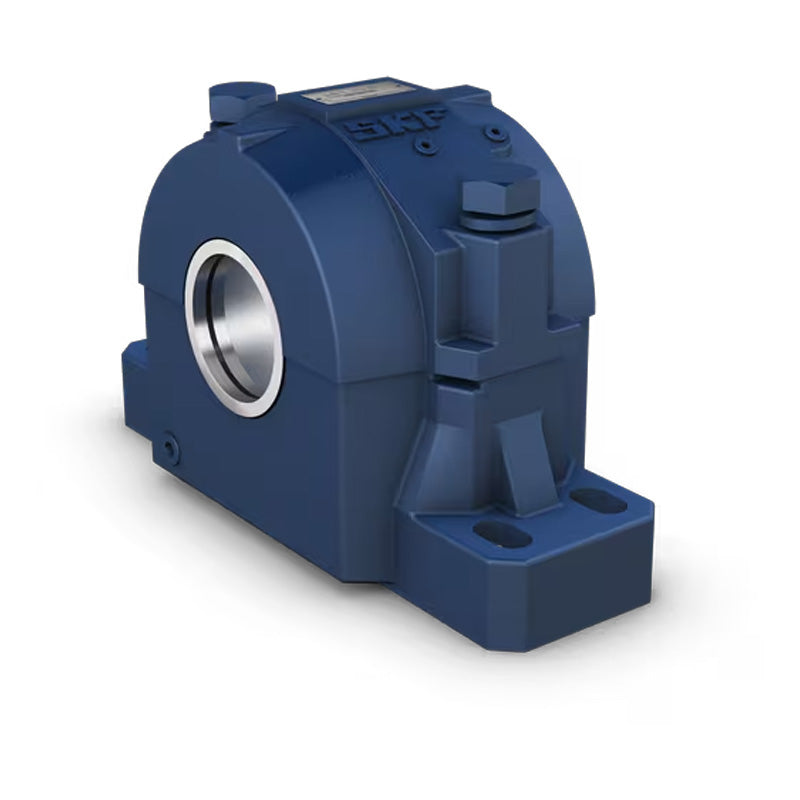

• SKF FSAFDC2516/70 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly
1 1

SKU: FSAFDC2516/70-SKF

SKF FSAFDC2516/70 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly

SKF FSAFDC2516/70 Ductile Iron Split Pillow Block Housing for Bearings on an Adapter Sleeve Complete Assembly

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SKF - High Quality
Inside Diameter:
70mm
Technical
Housing FSAFD516
Triple Ring Seal LOR643
Bearing C2216EK
Adaptor Sleeve H316E
Fixing Rings (2 required) FRB5/140
da 70mm
A 121mm = 4-3/4 inch
A1 89mm = 3-1/2 inch
A2 124mm = 4-7/8 inch
A3 202mm = 7-15/16 inch
H 175mm = 6-7/8 inch
H1 88.9mm = 3-1/2 inch
H2 32mm = 1-1/4 inch
H3 32mm = 1-1/4 inch
L 330mm = 13 inch
J max 279mm = 11 inch
J min 244mm = 9-5/8 inch
J1 54mm = 2-1/8 inch
Bolts (required) (4) 16mm = 5/8 inch
End plug EPR8
Weight 15.2 kg
