SKU: FY1.5/16TF-SKF

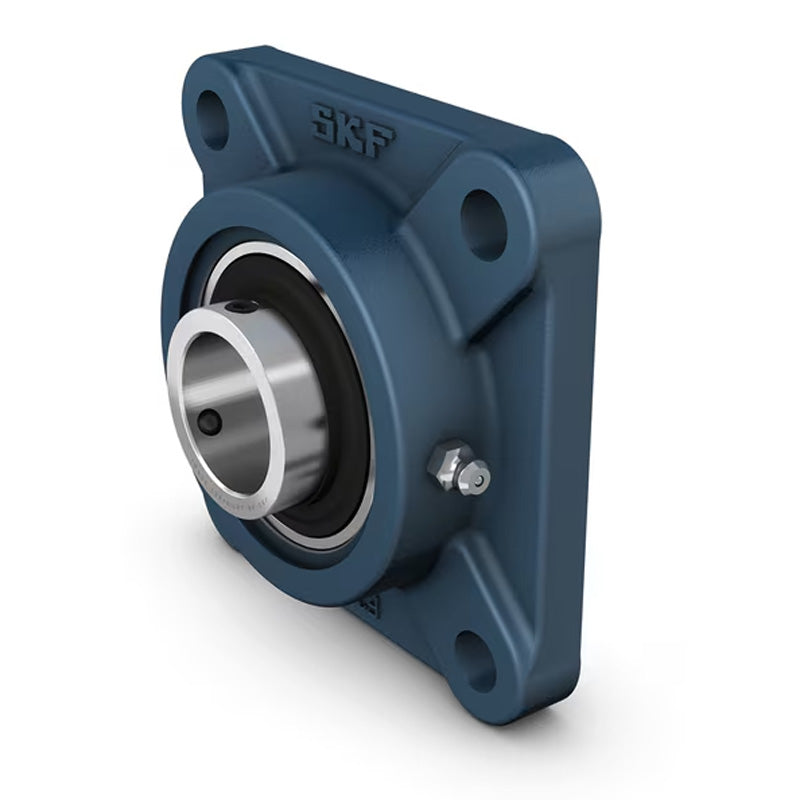

SKF FY1-5/16TF Square Cast Housing with Grub Screw 1-5/16 inch Insert
SKF FY1-5/16TF Square Cast Housing with Grub Screw 1-5/16 inch Insert
Regular price
€87,26
ex VAT
Regular price
Sale price
€87,26
ex VAT
In stock
Price Break
10+
€66,32
20+
€62,59
30+
€61,85
40+
€61,10
50+
€60,36
75+
€59,61
100+
€55,89
200+
€55,14
250+
€54,39
500+
€53,65
1000+
€52,16
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 92mm
Technical
Technical

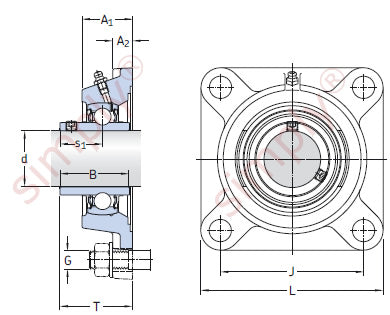

| d | 1-5/16 inch |
|---|---|
| A1 | 34.5mm |
| A2 | 13mm |
| B | 42.9mm |
| J | 92mm |
| L | 118mm |
| G | 12mm |
| s1 | 25.4mm |
| T | 46.4mm |
| Static load Cr | 15.3 kN |
| Dynamic load Cor | 25.5 kN |
| Fatigue load limit | 0.655 kN |
| Limiting speed | 5300 rpm |
| Weight | 1.45 kg |
| Housing | Insert |
