SKU: FY13/16TF-SKF

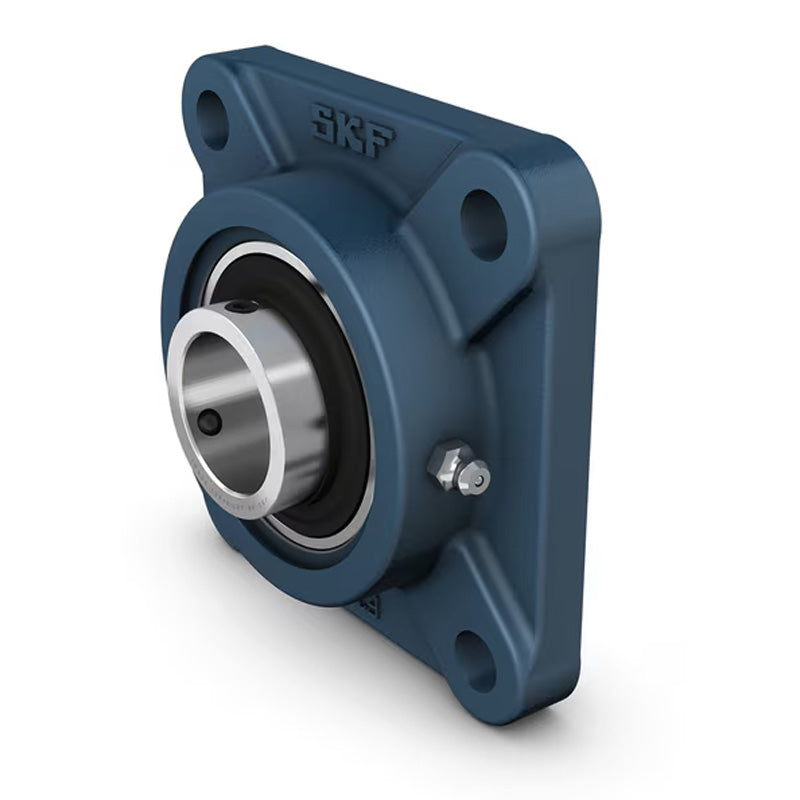

SKF FY13/16TF Square Cast Housing with Grub Screw 13/16 inch Insert
SKF FY13/16TF Square Cast Housing with Grub Screw 13/16 inch Insert
Out of stock
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20.64mm = 0.813 (13/16) inch
- Style:
- FY
- Bolt Hole Centres:
- 70mm
Technical
Technical
| d | 13/16 inch |
|---|---|
| A1 | 30mm |
| A2 | 12mm |
| B | 34.1mm |
| J | 70mm |
| L | 95mm |
| G | 10mm |
| s1 | 19.8mm |
| T | 38.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.81 kg |
| Housing | Insert |
