SKU: FYJ45KF-SKF

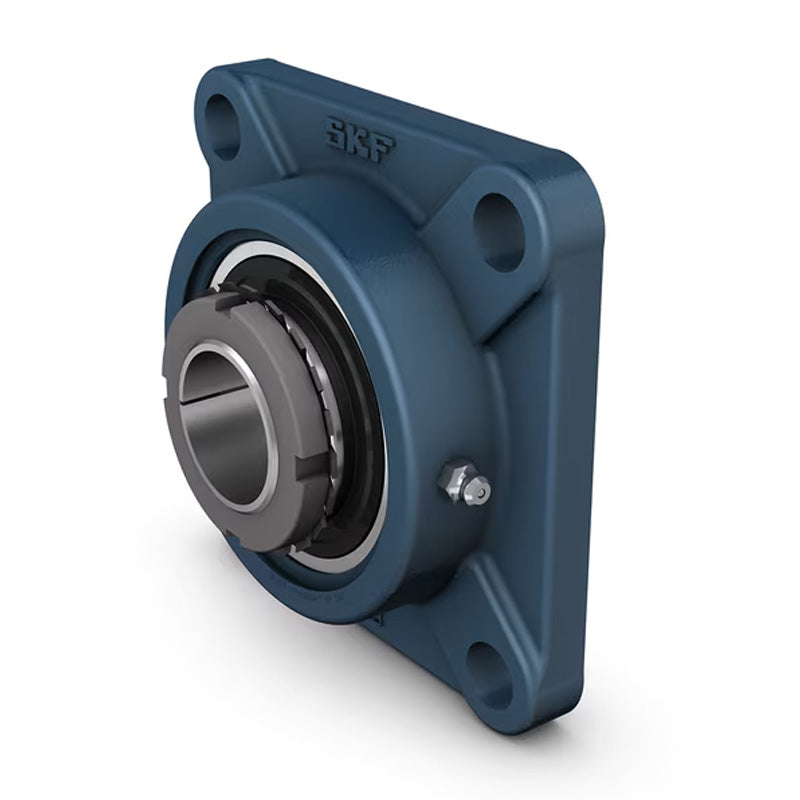

SKF FYJ45KF Flanged Unit with a Square Cast Housing with 40mm Insert
SKF FYJ45KF Flanged Unit with a Square Cast Housing with 40mm Insert
Regular price
€95,22
ex VAT
Regular price
Sale price
€95,22
ex VAT
In stock
Price Break
10+
€72,36
20+
€68,30
30+
€67,49
40+
€66,67
50+
€65,86
75+
€65,05
100+
€60,98
200+
€60,17
250+
€59,36
500+
€58,54
1000+
€56,92
Quantity
Couldn't load pickup availability
Description
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYJ
- Bolt Hole Centres:
- 105mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 38mm |
| A2 | 16mm |
| B1 | 50mm |
| Da | 119.1mm |
| J | 105mm |
| L | 137mm |
| N | 16mm |
| G | 14mm |
| s1 | 28.5mm |
| T | 50.5mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 2.1 kg |
