SKU: FYJ50KF-SKF

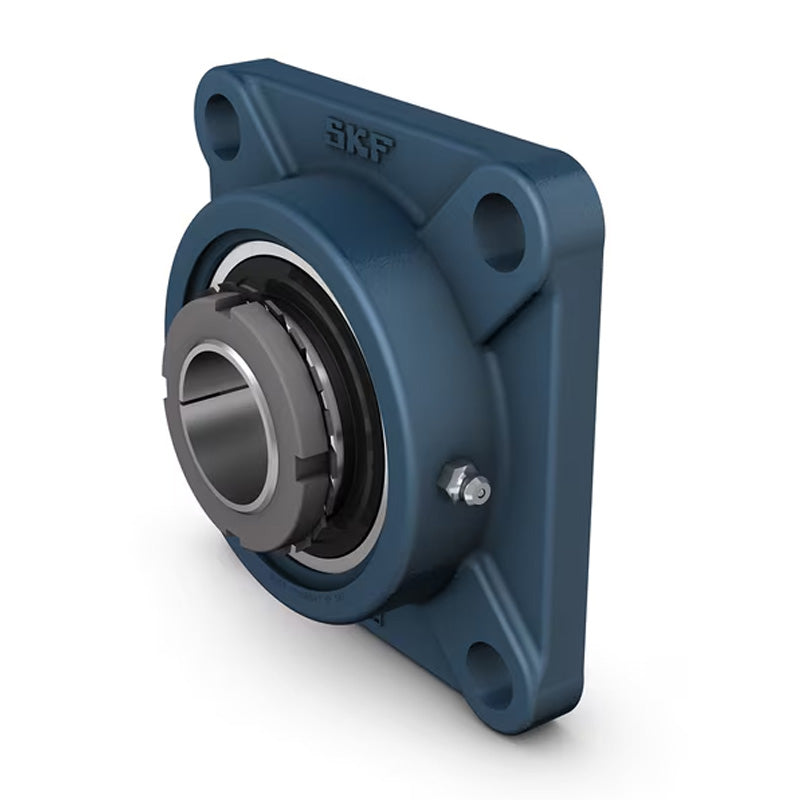

SKF FYJ50KF Flanged Unit with a Square Cast Housing with 45mm Insert
- Regular price
- €120.13 ex VAT
- Sale price
- €120,13
- Regular price
-
Not in stock
Quantity Price Breaks
10
€106.92
20
€100.91
30
€99.71
40
€98.51
50
€97.31
75
€96.10
100
€90.10
200
€88.90
250
€87.69
500
€86.49
1000
€84.09
SKU:
FYJ50KF-SKF
SKF FYJ50KF Flanged Unit with a Square Cast Housing with 45mm Insert
- Regular price
- €120.13 ex VAT
- Sale price
- €120,13
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |

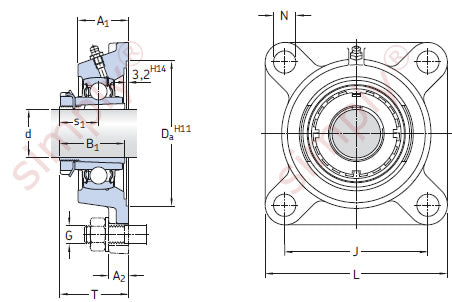

Technical
| d | = | 45mm |
| A1 | = | 40mm |
| A2 | = | 15mm |
| B1 | = | 55mm |
| Da | = | 125.4mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 16mm |
| G | = | 14mm |
| s1 | = | 30.5mm |
| T | = | 52.5mm |
| Static load Cr | = | 23.2 kN |
| Dynamic load Cor | = | 35.1 kN |
| Fatigue load limit Pu | = | 0.98 kN |
| Limiting speed | = | 4000 rpm |
| Weight | = | 2.8 kg |
