SKU: FYJ65KF-SKF

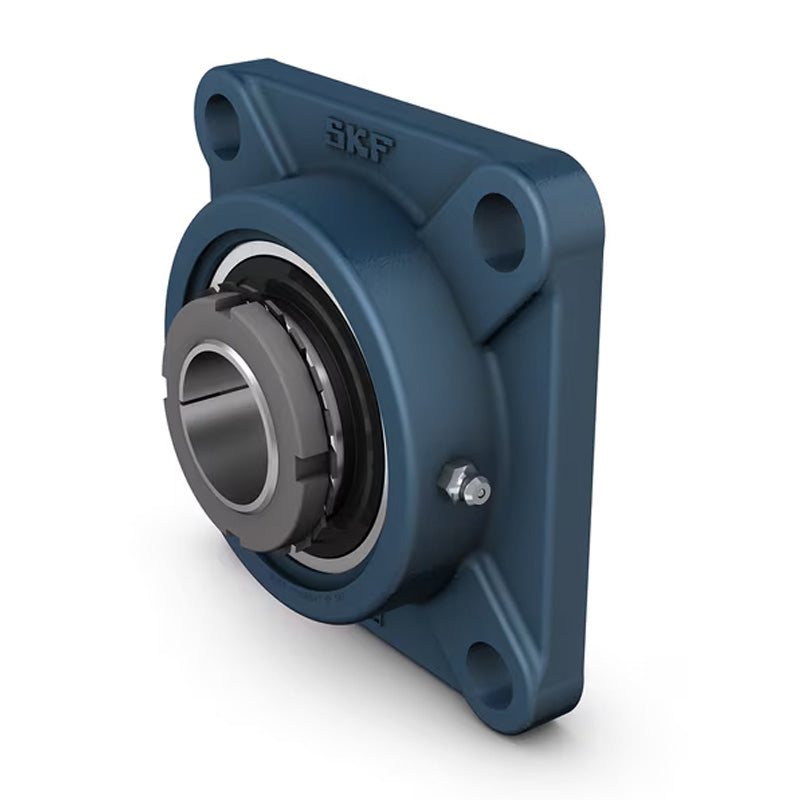

SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
- Regular price
- €219.06 ex VAT
- Sale price
- €219,06
- Regular price
-
Not in stock
Quantity Price Breaks
10
€194.96
20
€184.01
30
€181.82
40
€179.63
50
€177.44
75
€175.25
100
€164.30
200
€162.10
250
€159.91
500
€157.72
1000
€153.34
SKU:
FYJ65KF-SKF
SKF FYJ65KF Flanged Unit with a Square Cast Housing with 60mm Insert
- Regular price
- €219.06 ex VAT
- Sale price
- €219,06
- Regular price
-
Description
|
SKF Square Flanged Y-bearing Units: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately. Benefits: Grease fitting allows re-lubrication |

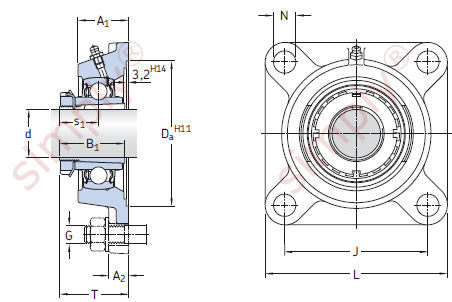

Technical
| d | = | 60mm |
| A1 | = | 50mm |
| A2 | = | 22mm |
| B1 | = | 65mm |
| Da | = | 161.9mm |
| J | = | 149mm |
| L | = | 187mm |
| N | = | 19mm |
| G | = | 16mm |
| s1 | = | 35.8mm |
| T | = | 65.8mm |
| Static load Cr | = | 40 kN |
| Dynamic load Cor | = | 57.2 kN |
| Fatigue load limit Pu | = | 1.7 kN |
| Limiting speed | = | 3000 rpm |
| Weight | = | 6 kg |
